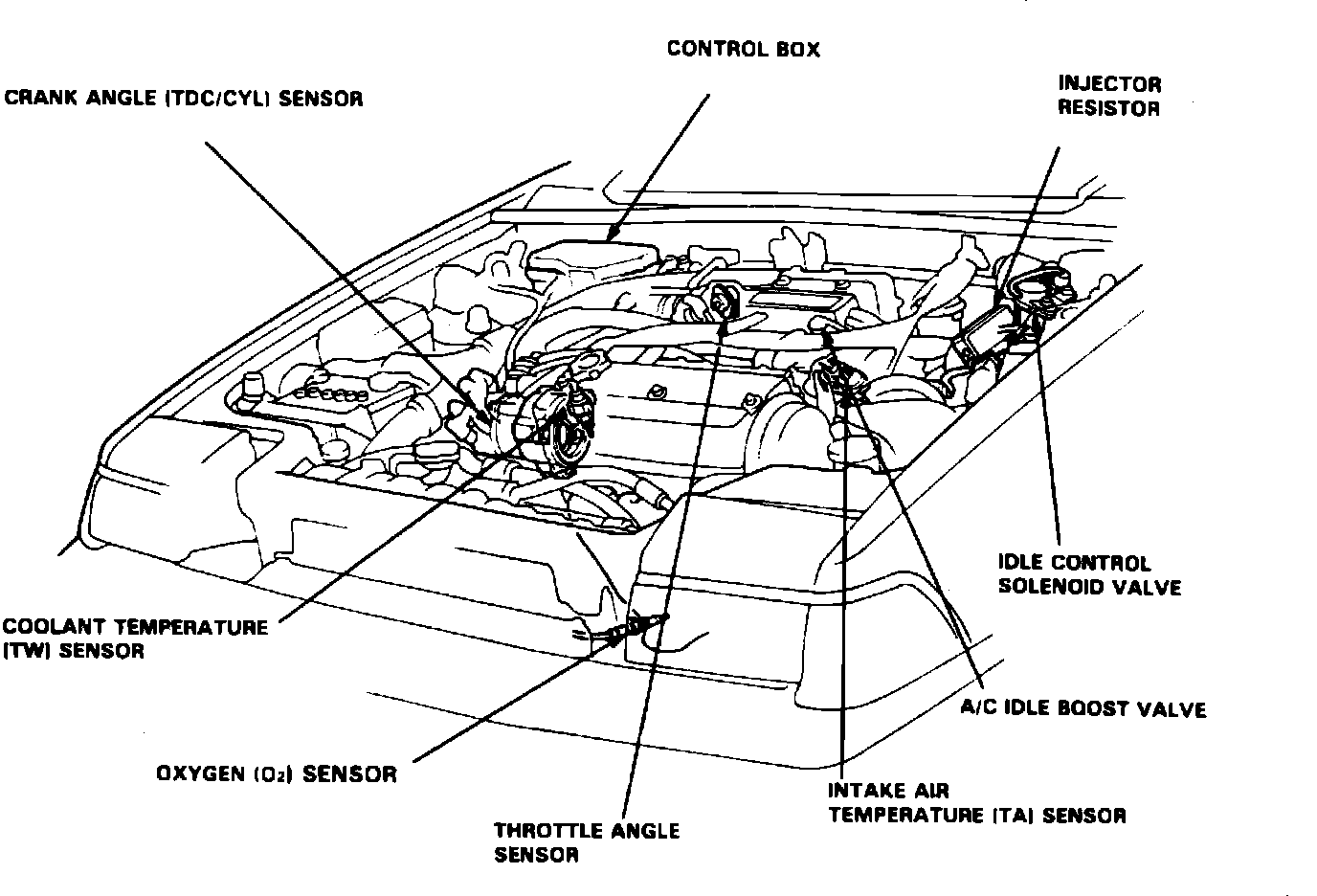

Coolant Temperature Sensor/Switch (For Computer): Locations

Fuel & Emission System (Part 1 Of 3).:

Fuel & Emission System (Part 1 Of 3).:

Fuel & Emission System (Part 1 Of 3).:

LH Side Of Engine

Applicable to: 1987 Prelude w/Fuel Injected Engine
