Main Relay (Computer/Fuel System): Description and Operation

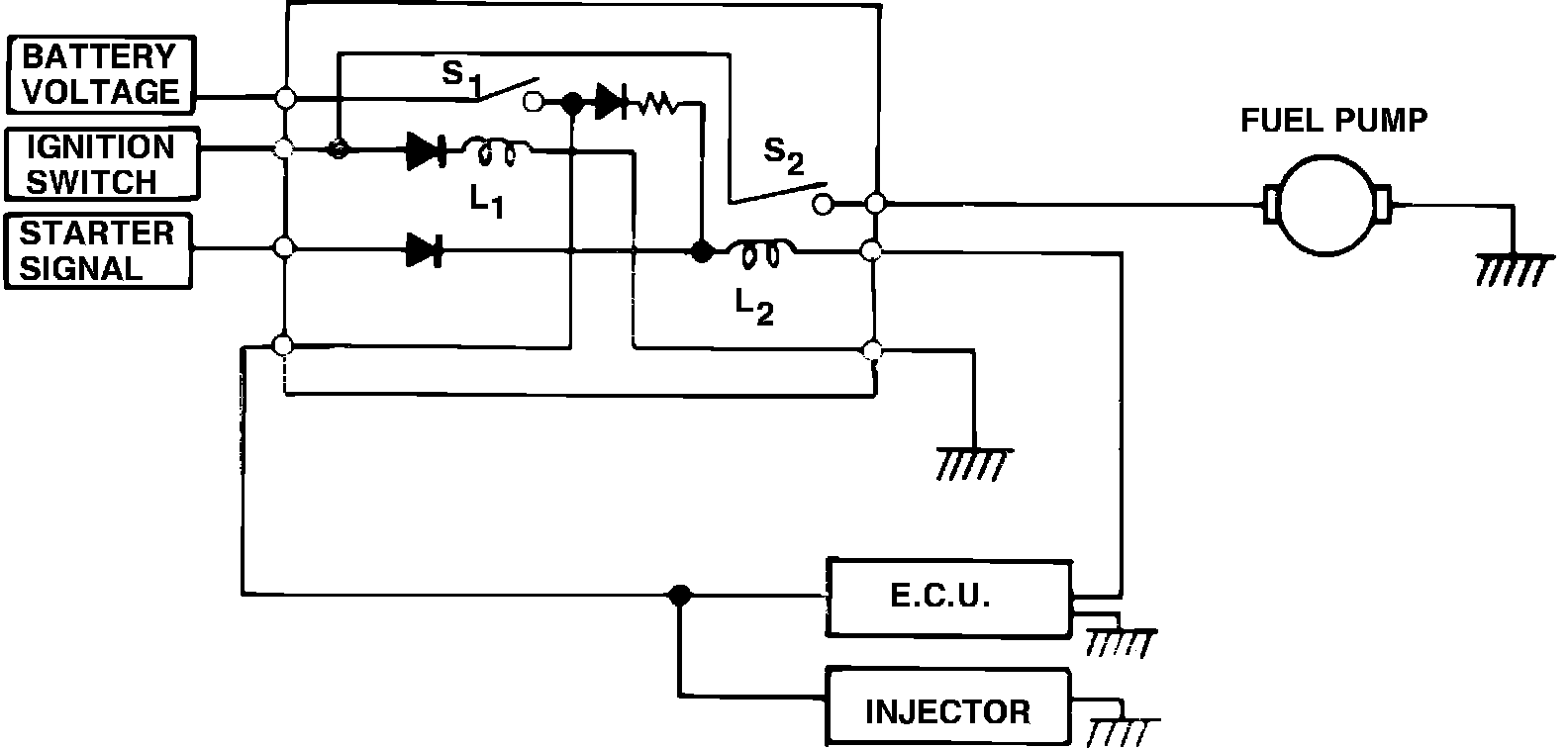

Fig. 20 Main relay schematic:

Fig. 21 Main relay schematic:

The main relay, located at the back of the fuse box, is a direct coupler type which contains relays for the ECU power supply and fuel pump power supply, Figs. 20 and 21.
