System Testing: Notes

Start engine and warm to operating temperature (cooling fan comes on). Disconnect No. 6 vacuum hose at dashpot diaphragm. See Fig 1 .

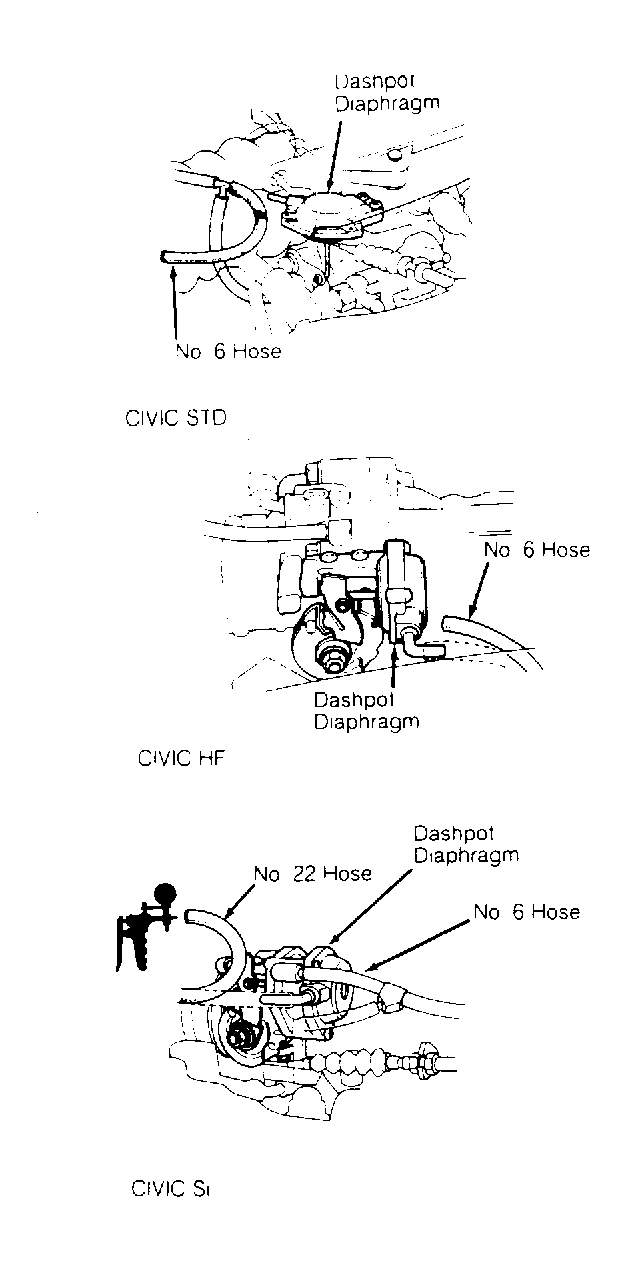

Fig 1: Dashpot Diaphragm Hose Identification (Civic)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Engine speed should increase to 2000-3000 RPM. If engine speed is out of specified range, perform FUNCTIONAL TEST on Si models. On Std. and HF models, adjust by bending adjustment tabs. See Fig 2 .

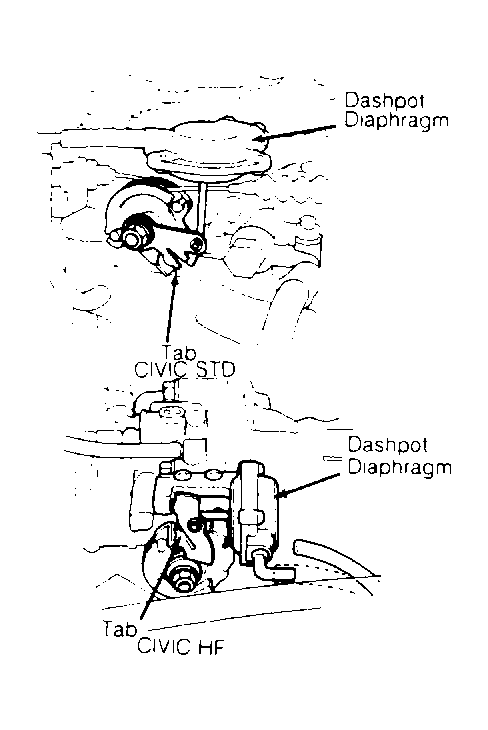

Fig 2: Dashpot RPM Adjustment (Civic Std. & HF)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
