Air Intake System: Notes

NOTE: DO NOT  adjust by-pass valve full-close screw. Adjustment was preset at the factory.

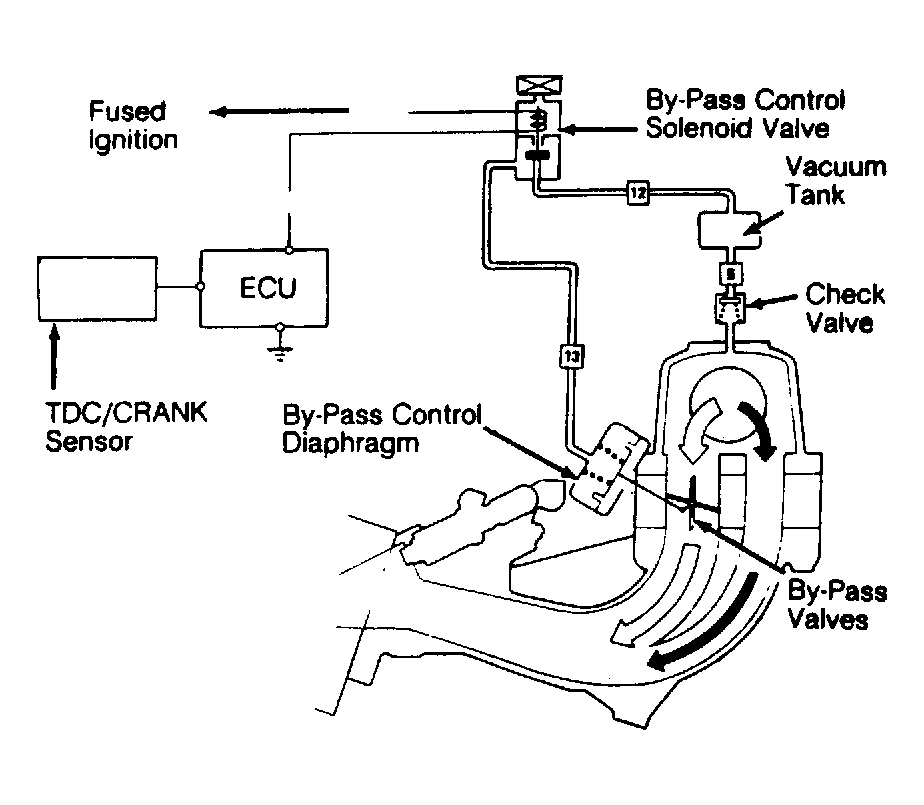

Fig 1: By-Pass Control System
G117949Courtesy of AMERICAN HONDA MOTOR CO., INC.
