Vehicle Speed Sensor: Testing and Inspection

A/T Speed Pulser Test

CAUTION:
- Set the parking brake securely and block the rear wheels.
- Make sure jacks and safety stands are placed properly.

1. Jack up the front of the car and support with safety stands.

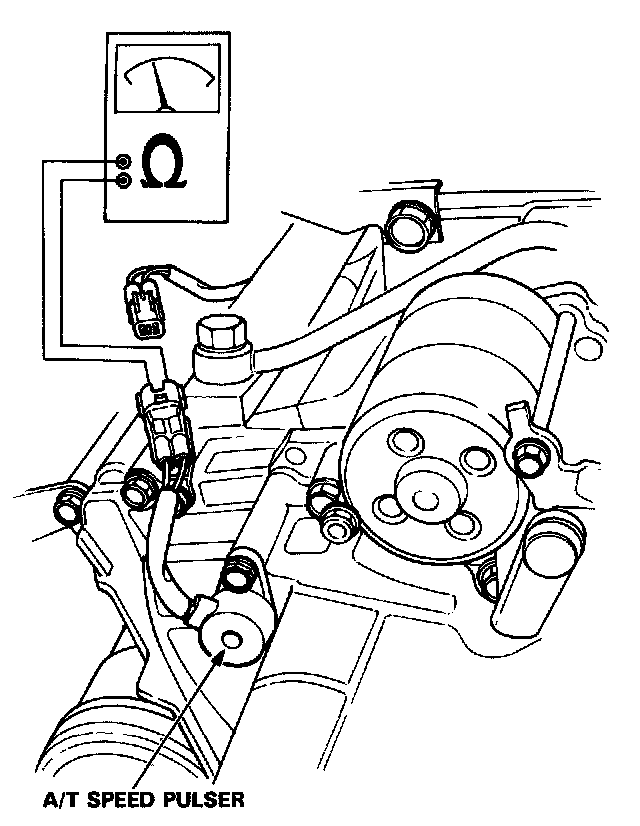

2. Disconnect the A/T speed pulser 2P connector.

3. Rotate the front wheels and be sure that continuity and no continuity appear alternately between the two terminals.
