Driver Window Switch Test: Sedan
Remove door trim panel. See
DOOR TRIM PANEL
under REMOVAL & INSTALLATION.
Remove the driver's switch from the door trim panel.
Check for continuity between the terminals in each switch position. See
Fig 1
and
Fig 2
.

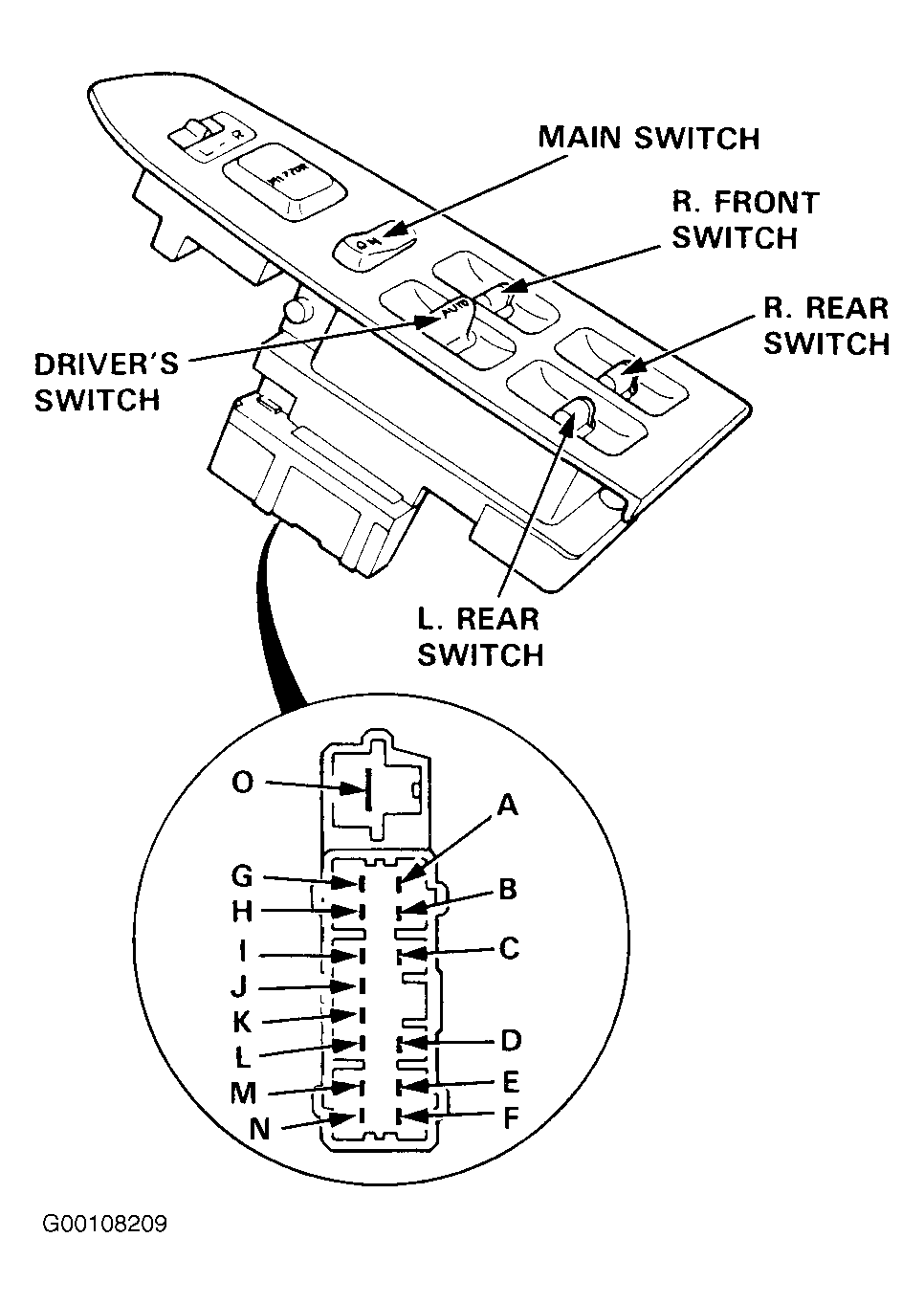

Fig 1: Identifying Driver's Power Window Switch Terminals (Sedan)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

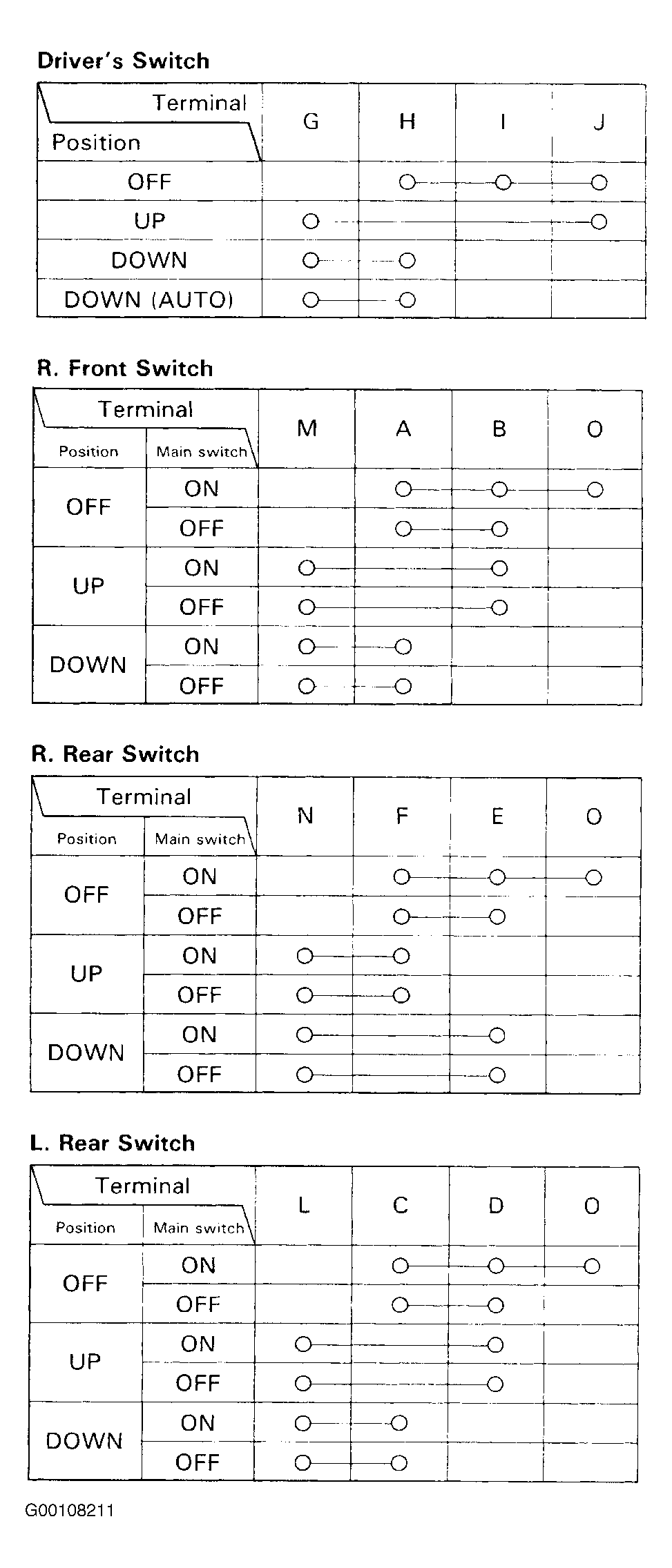

Fig 2: Driver's Power Window Switch Continuity Chart (Sedan)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
