Engine Control Module: Diagrams





Harness Connectors

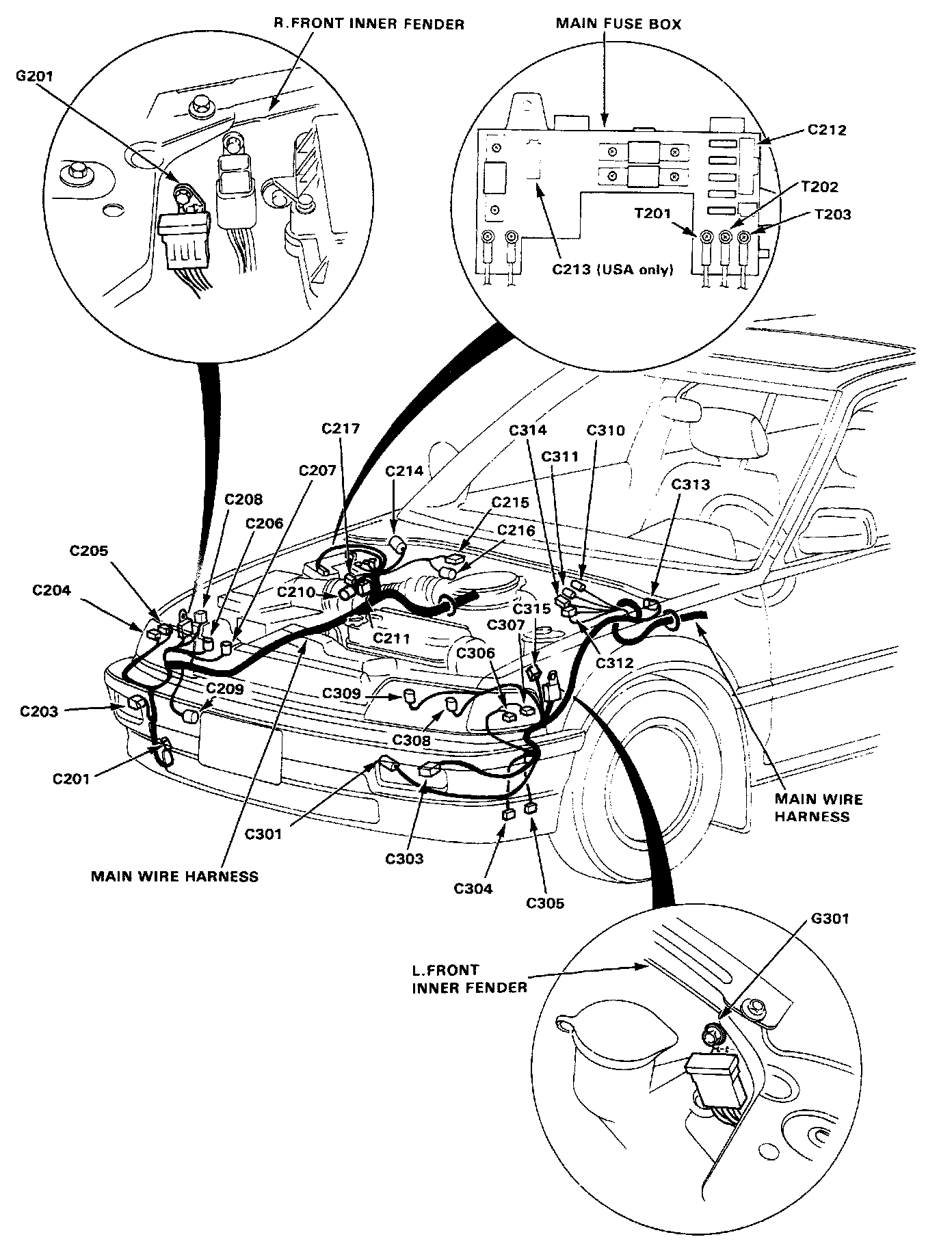

Part 1 Of 2:

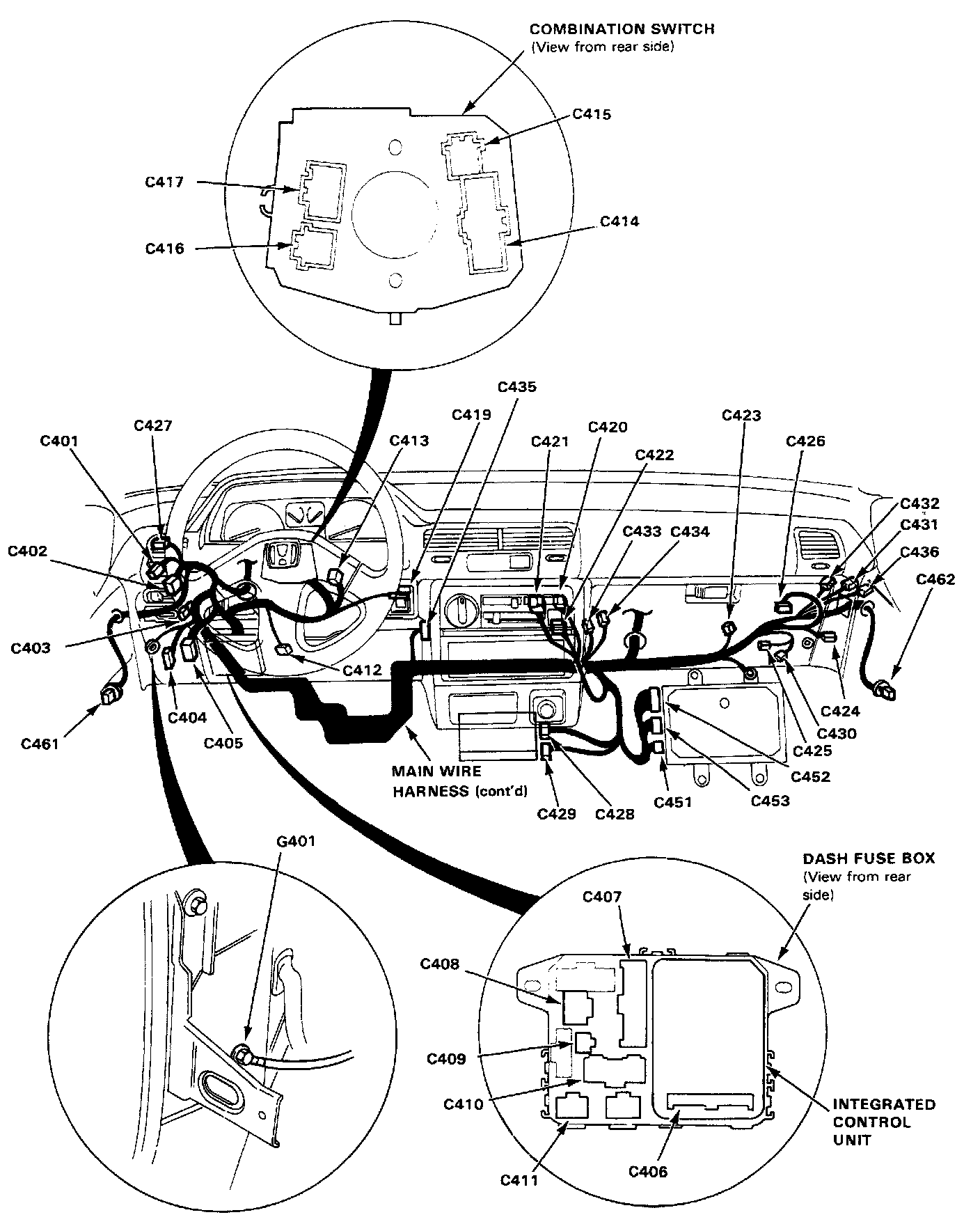

Part 2 Of 2:

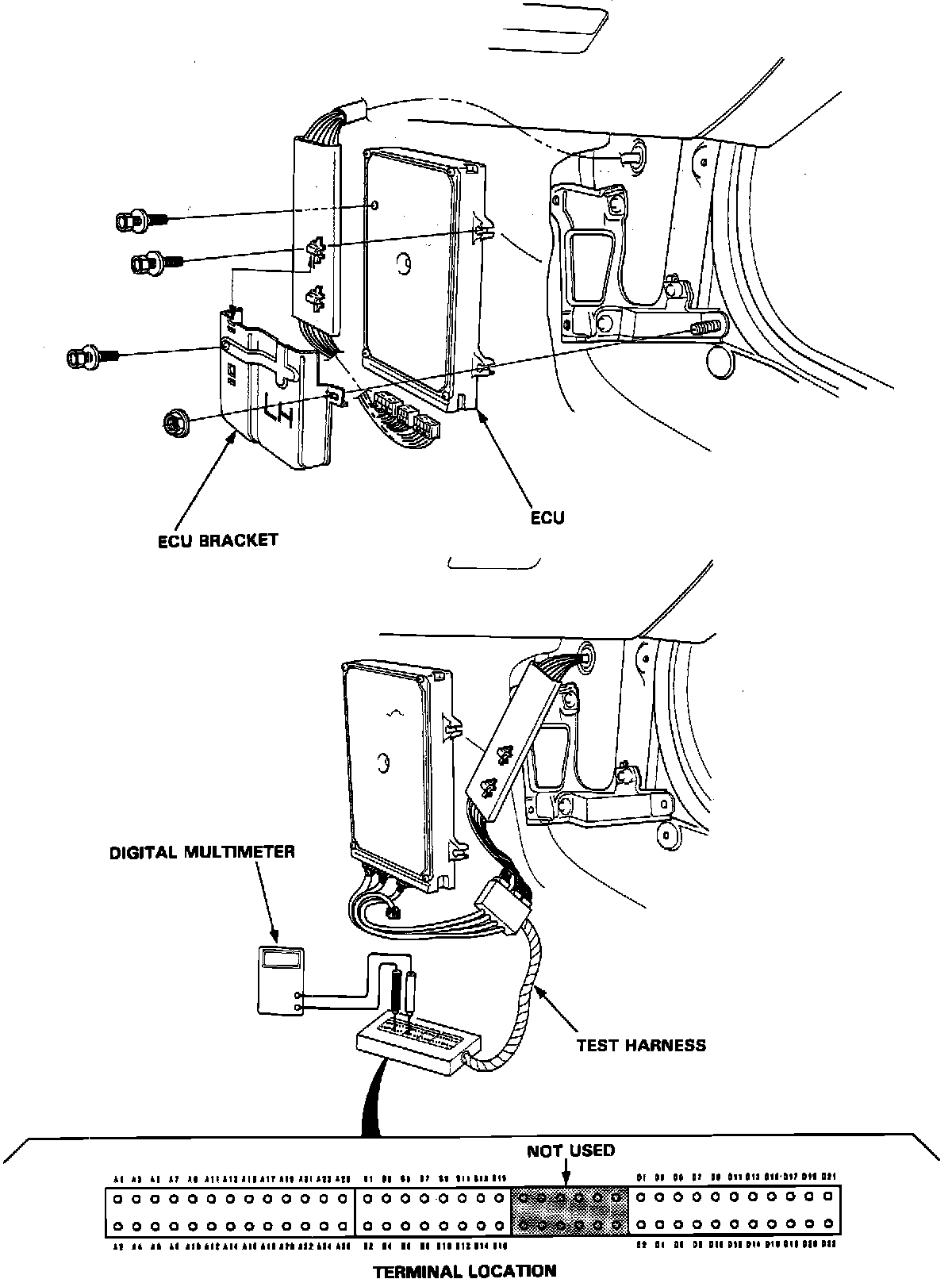

ECM Harness Connector Location


Test Harness Installation:




Test Harness
