Code 17 - Vehicle Speed Sensor (VSS) Circuit

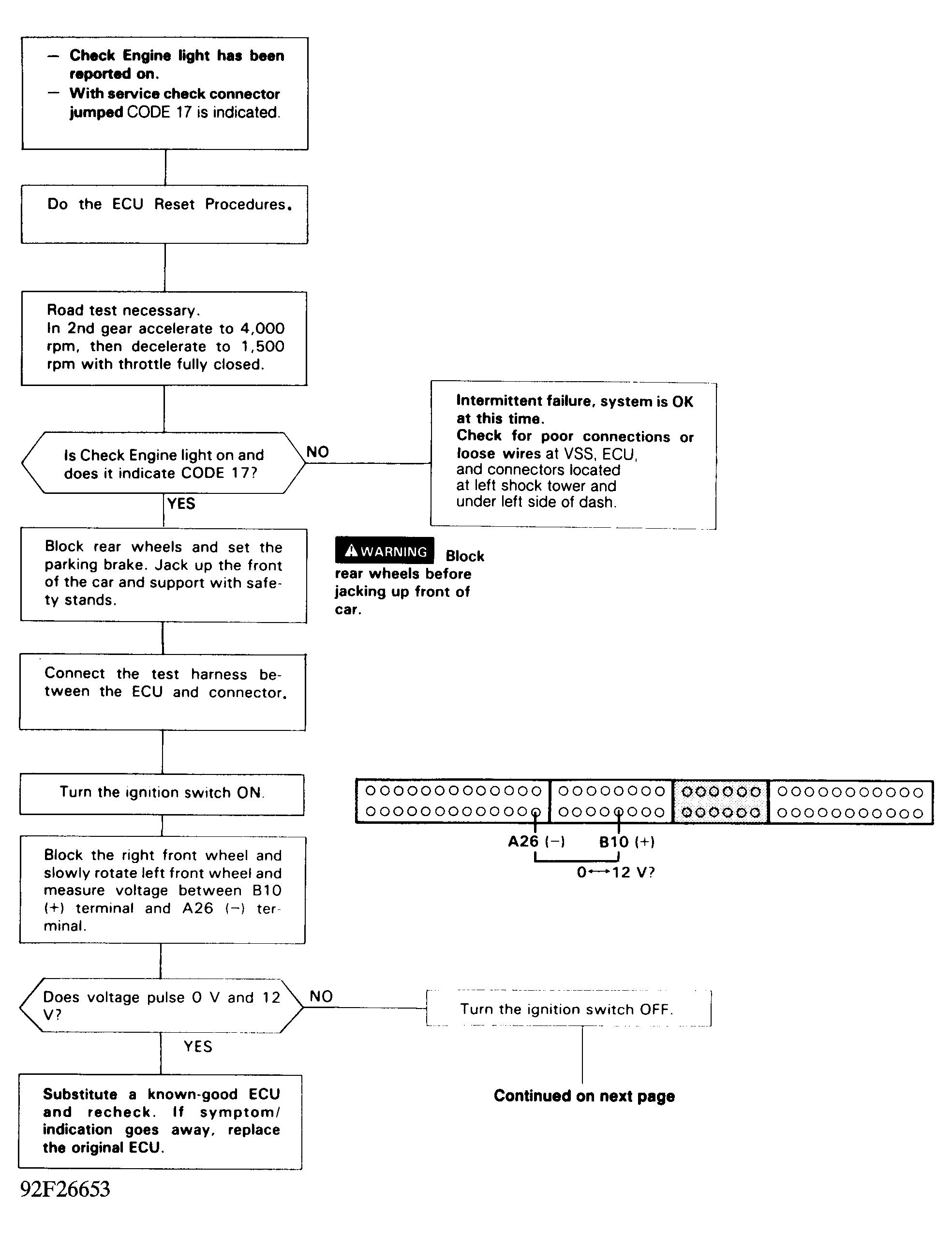

Fig 1: Code 17 Chart (1 Of 2) - Vehicle Speed Sensor (VSS) CKT.

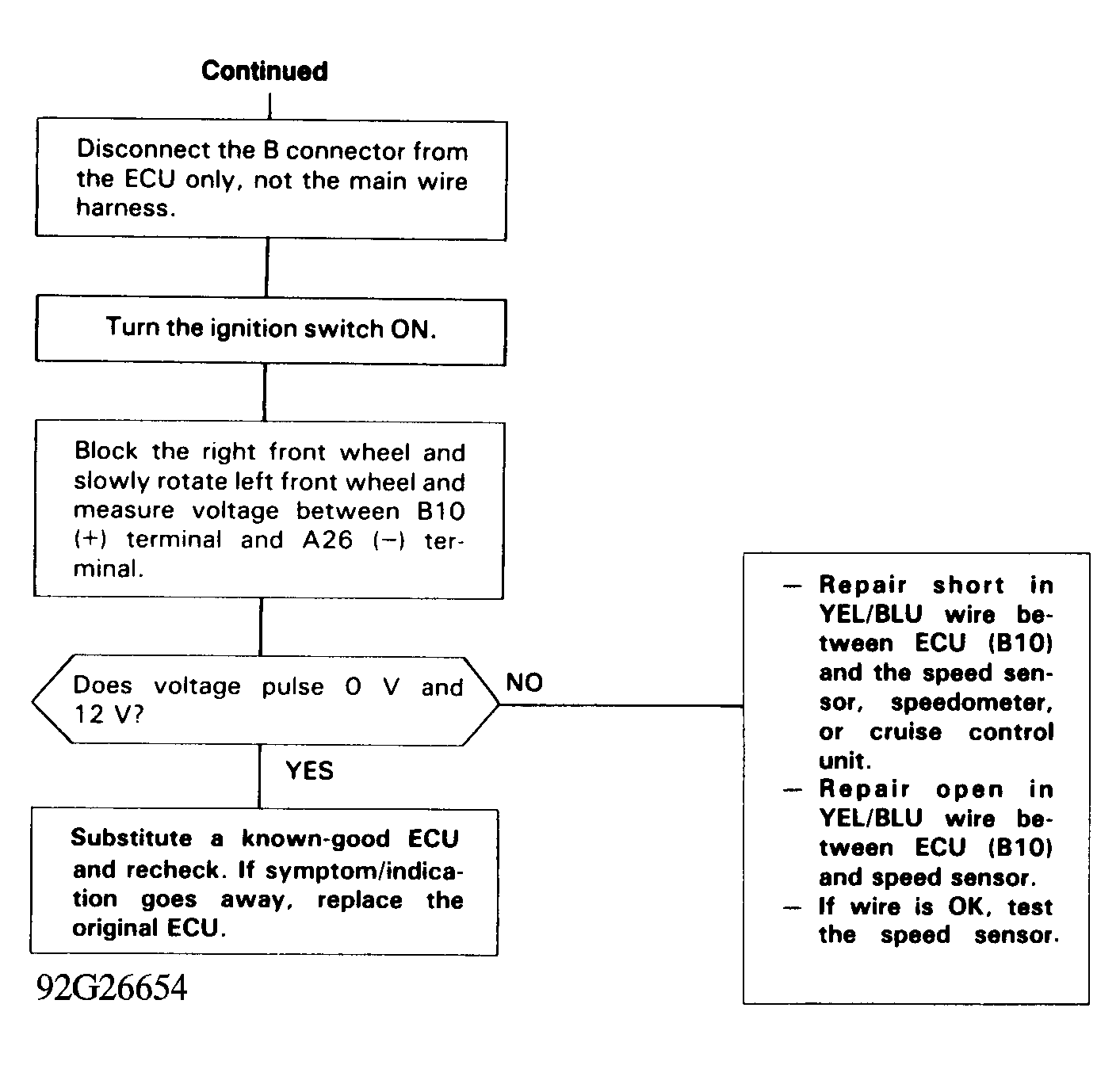

Fig 2: Code 17 Chart (2 Of 2) - Vehicle Speed Sensor (VSS) CKT.
