Code 22 - VTEC Oil Pressure Switch Circuit

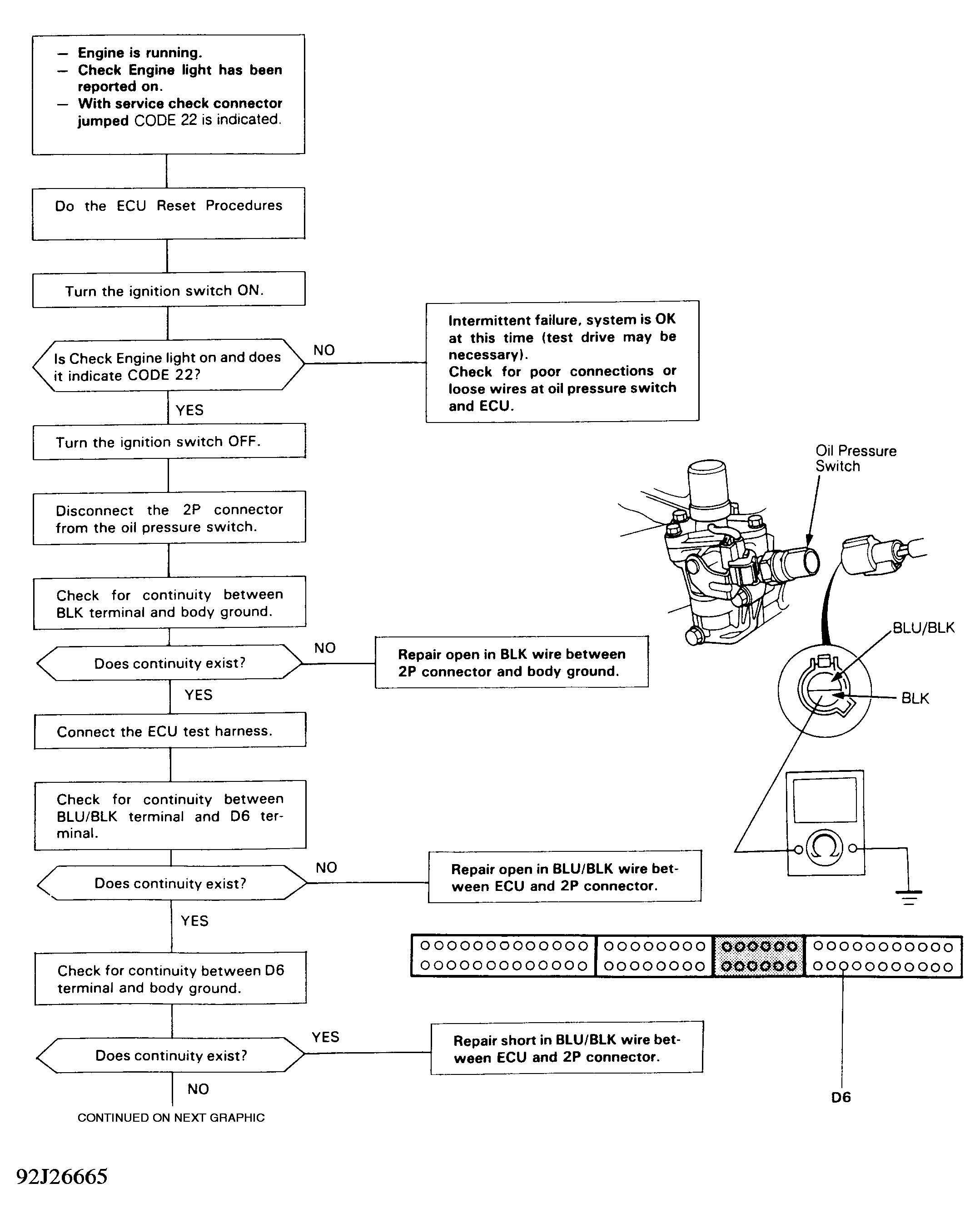

Fig 1: Code 22 Chart (1 Of 3) - VTEC Oil Pressure Switch CKT.
G92J26665

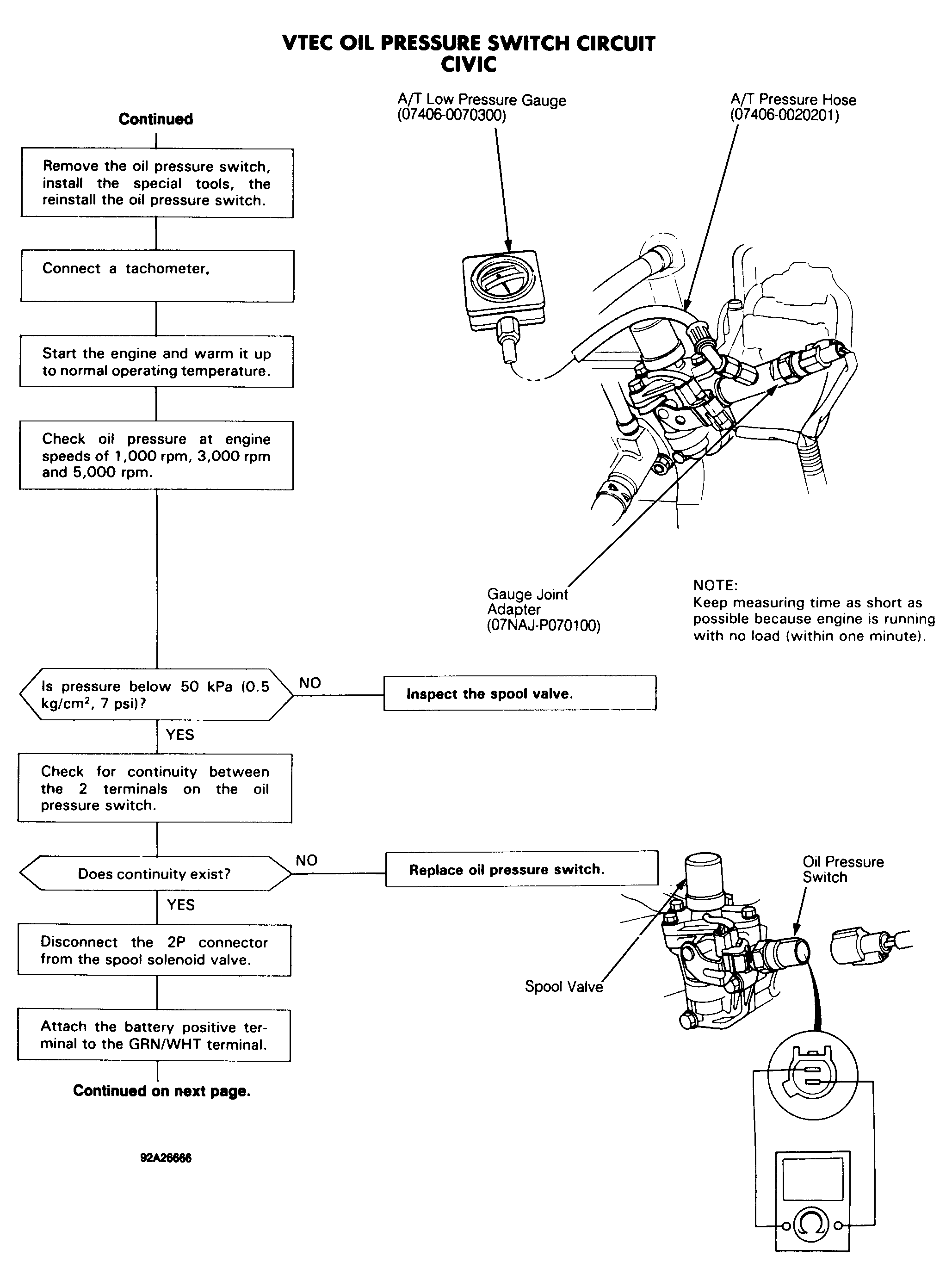

Fig 2: Code 22 Chart (2 Of 3) - VTEC Oil Pressure Switch CKT.
G92A26666

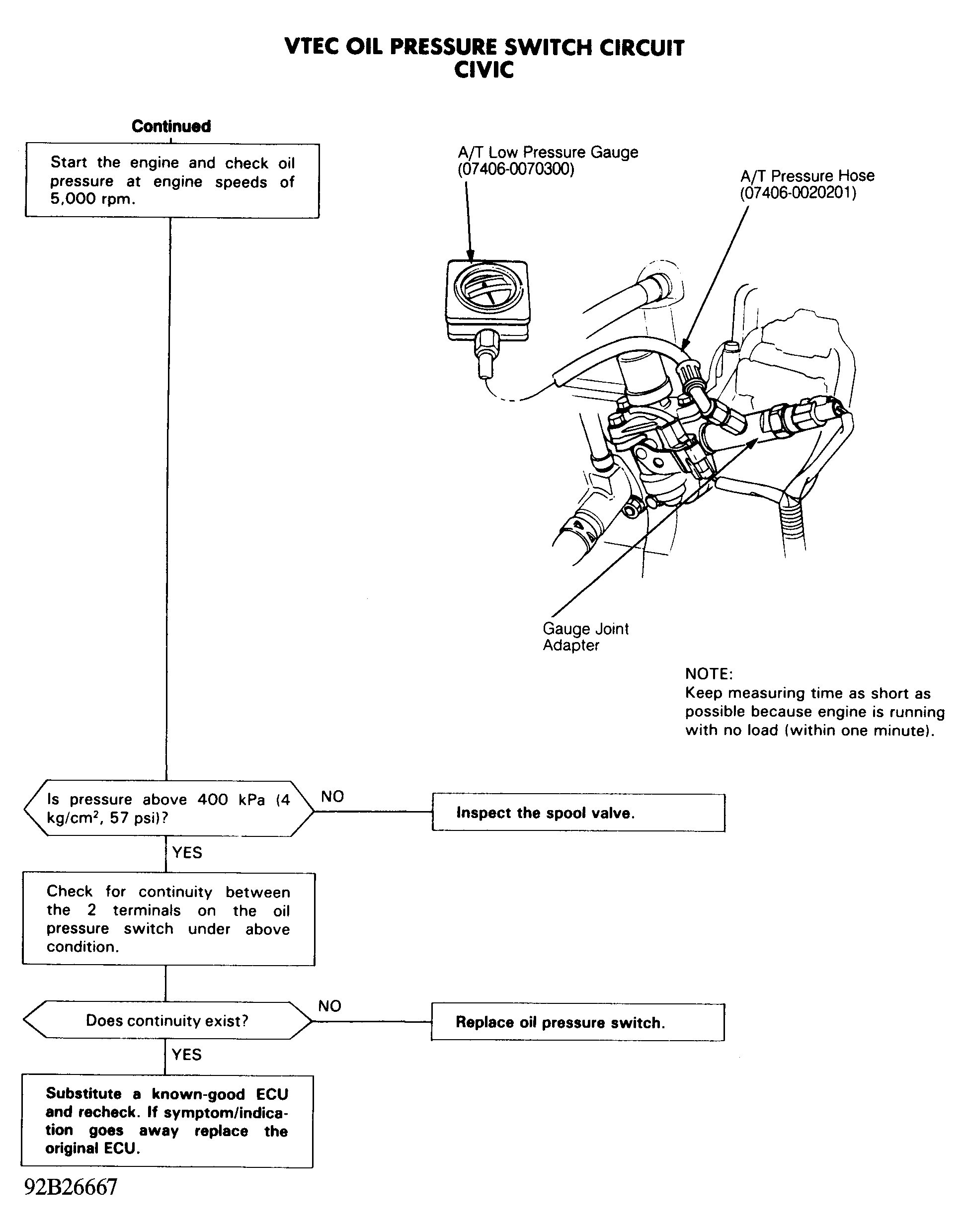

Fig 3: Code 22 Chart (3 Of 3) - VTEC Oil Pressure Switch CKT.
G92B26667
