EGR Valve Position Sensor: Testing and Inspection
EXHAUST GAS RECIRCULATION SYSTEM:
EGR SYSTEM DIAGRAM
�d8�EGR System Testing:

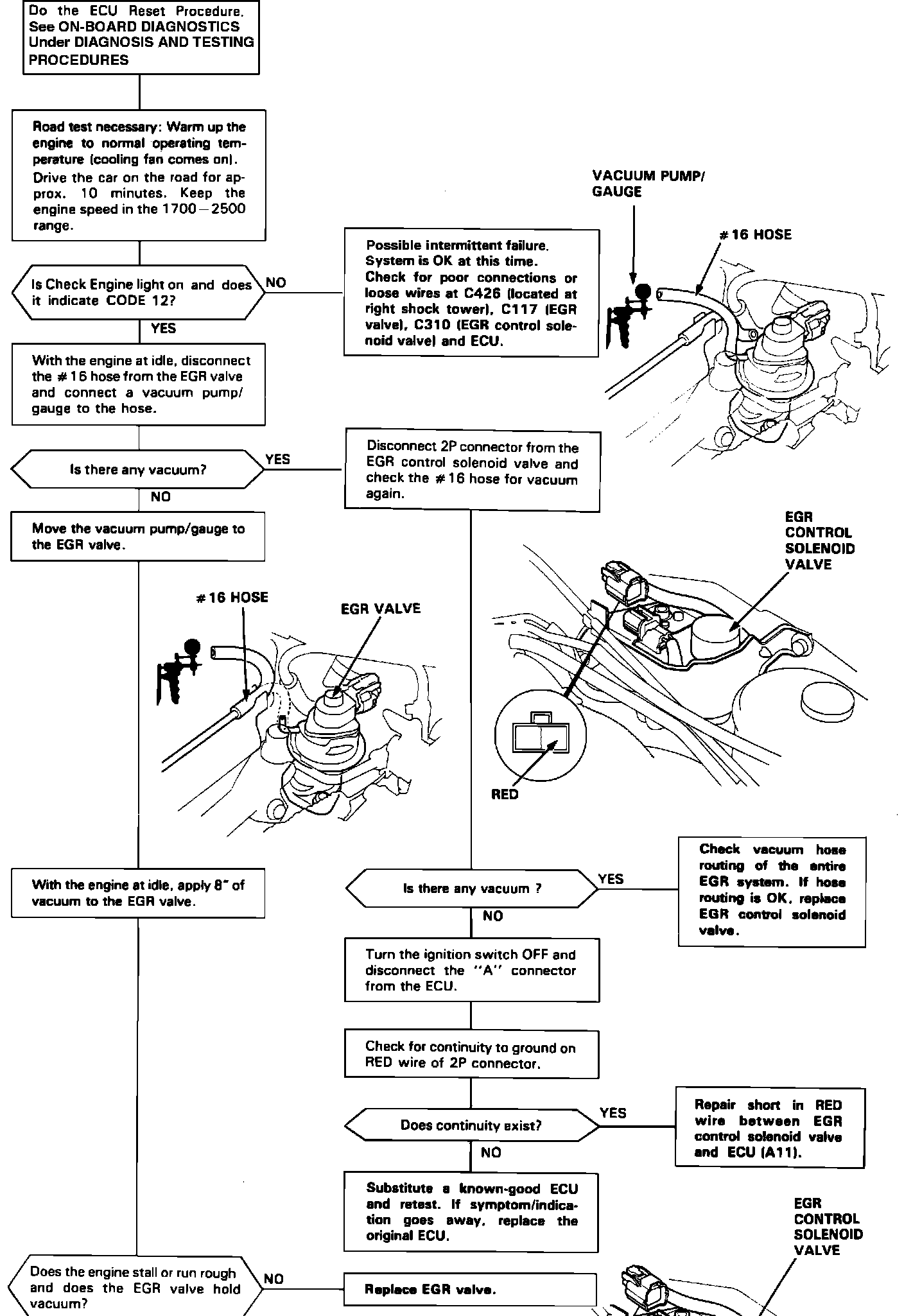

EGR SYSTEM TEST
