EGR Valve Position Sensor: Testing and Inspection
Exhaust Gas Recirculation System:
EGR SYSTEM DIAGRAM

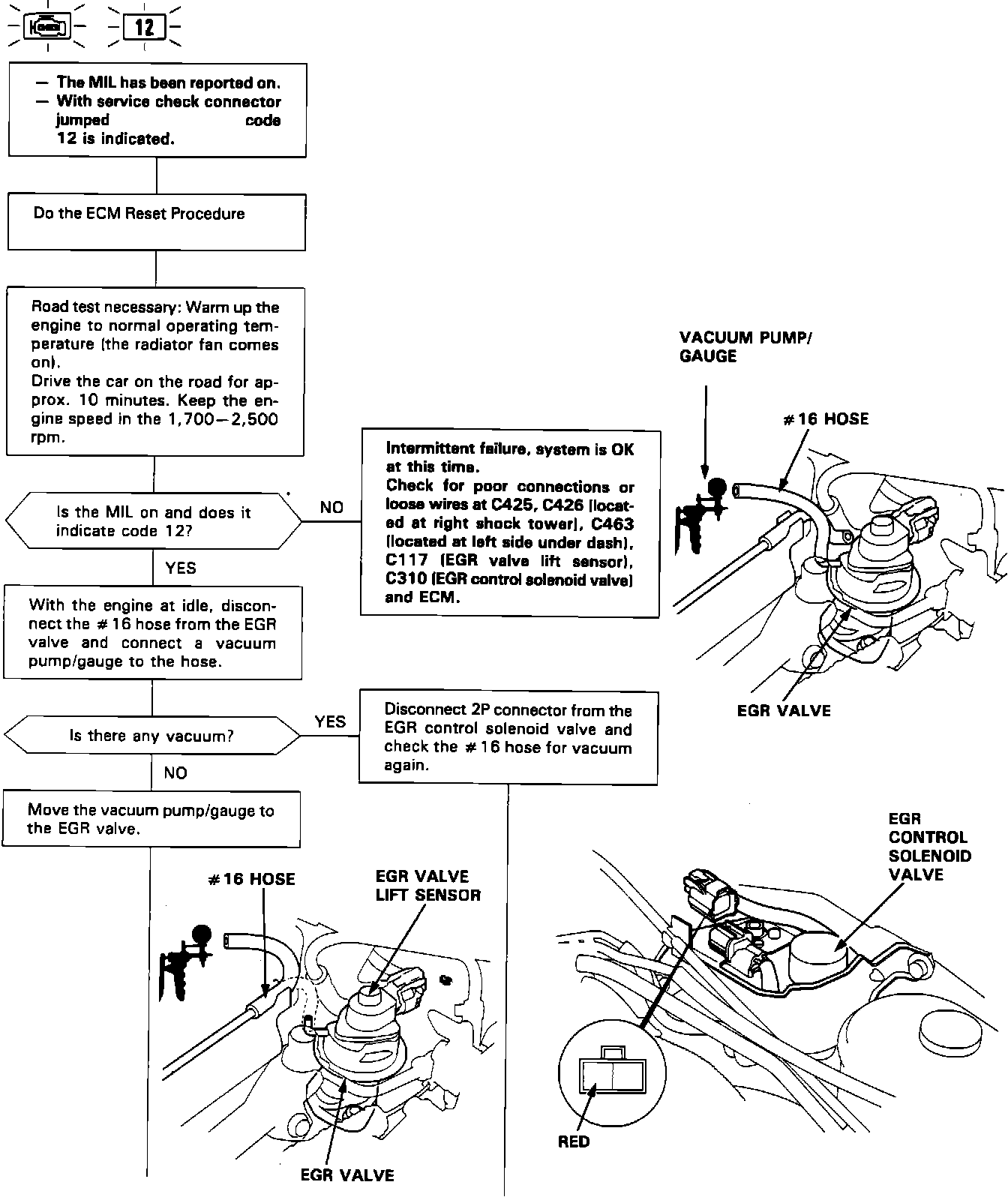

EGR System Testing Procedures:
1 OF 5

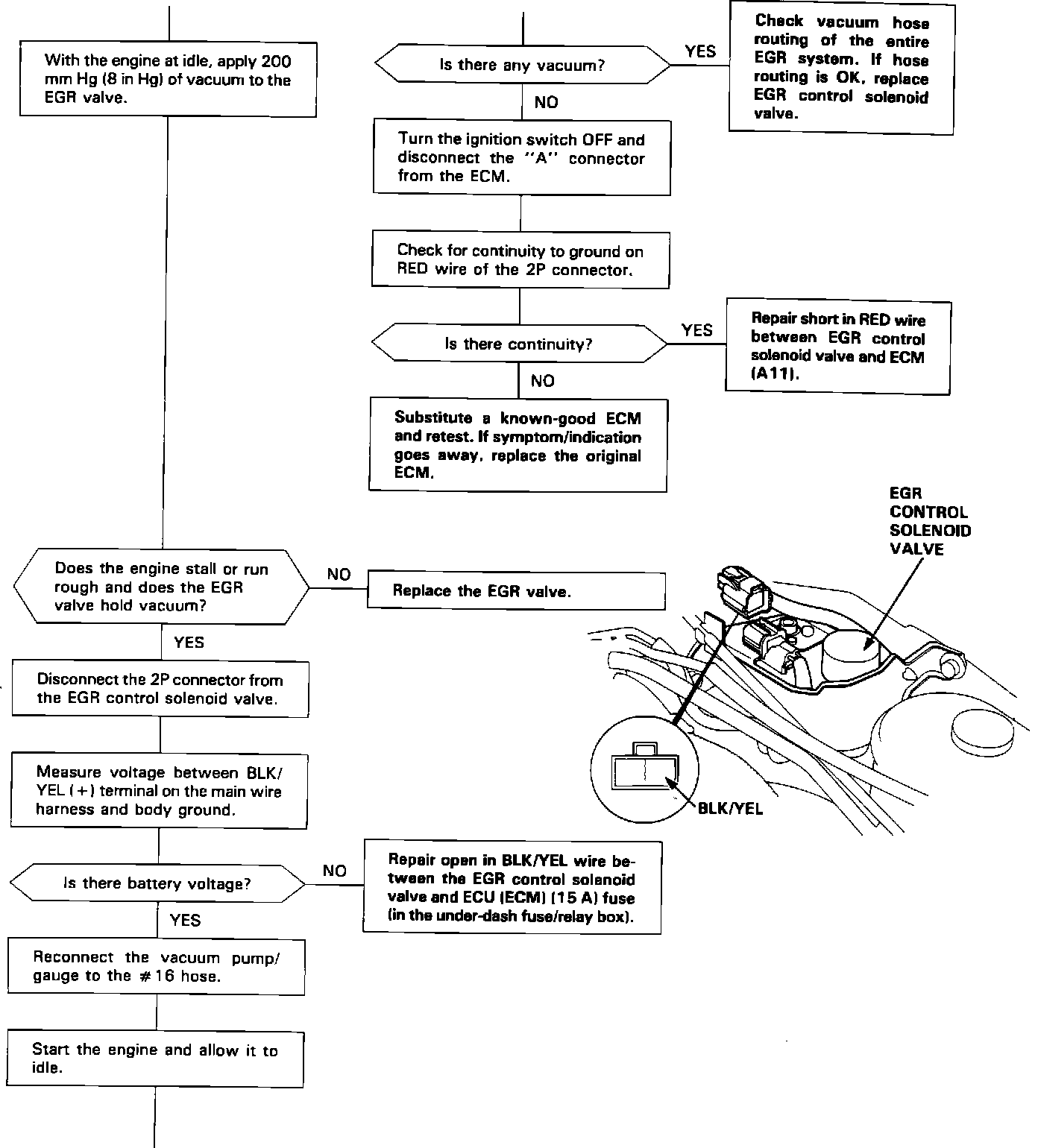

EGR System Testing Procedures:
2 OF 5

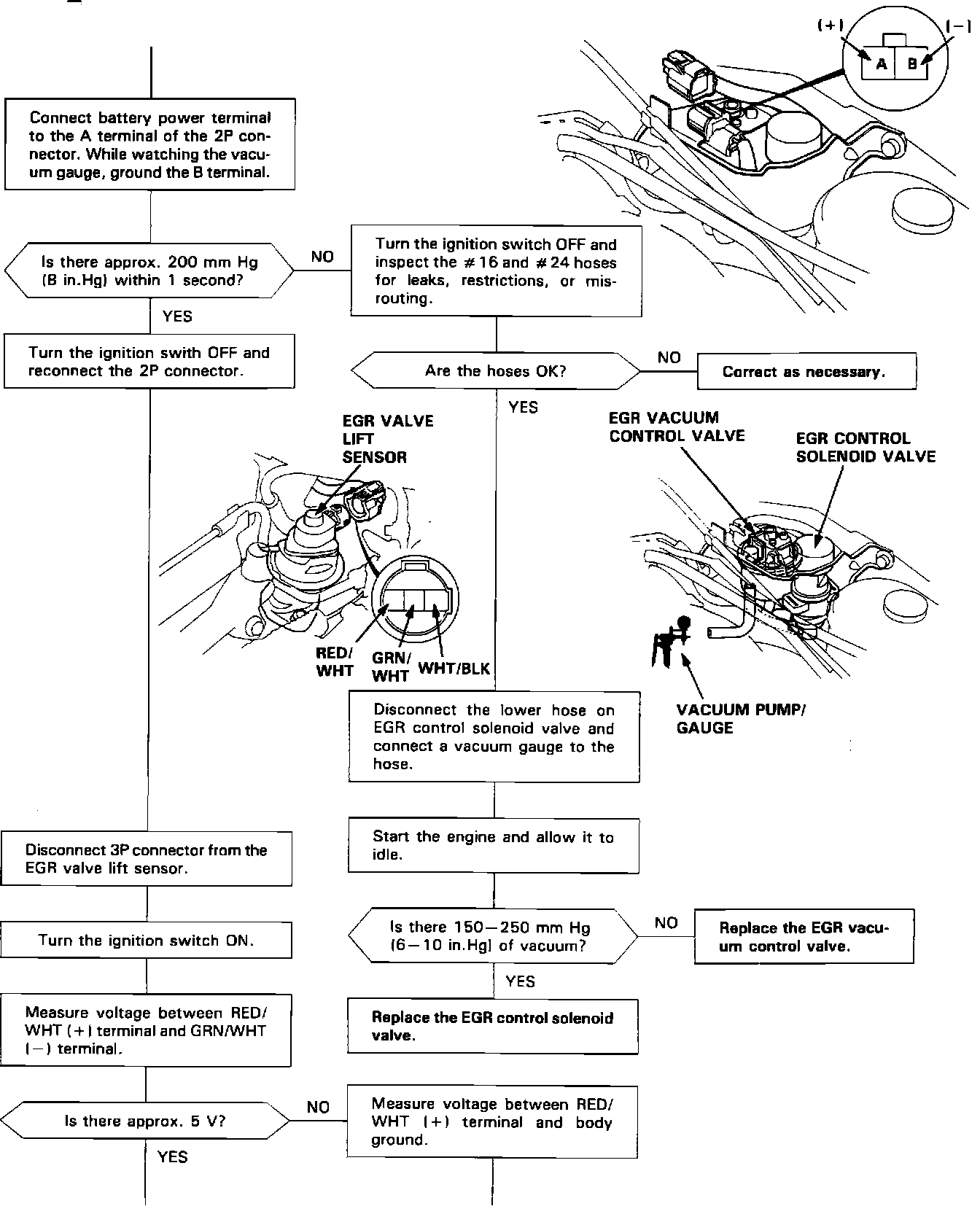

EGR System Testing Procedures:
3 OF 5

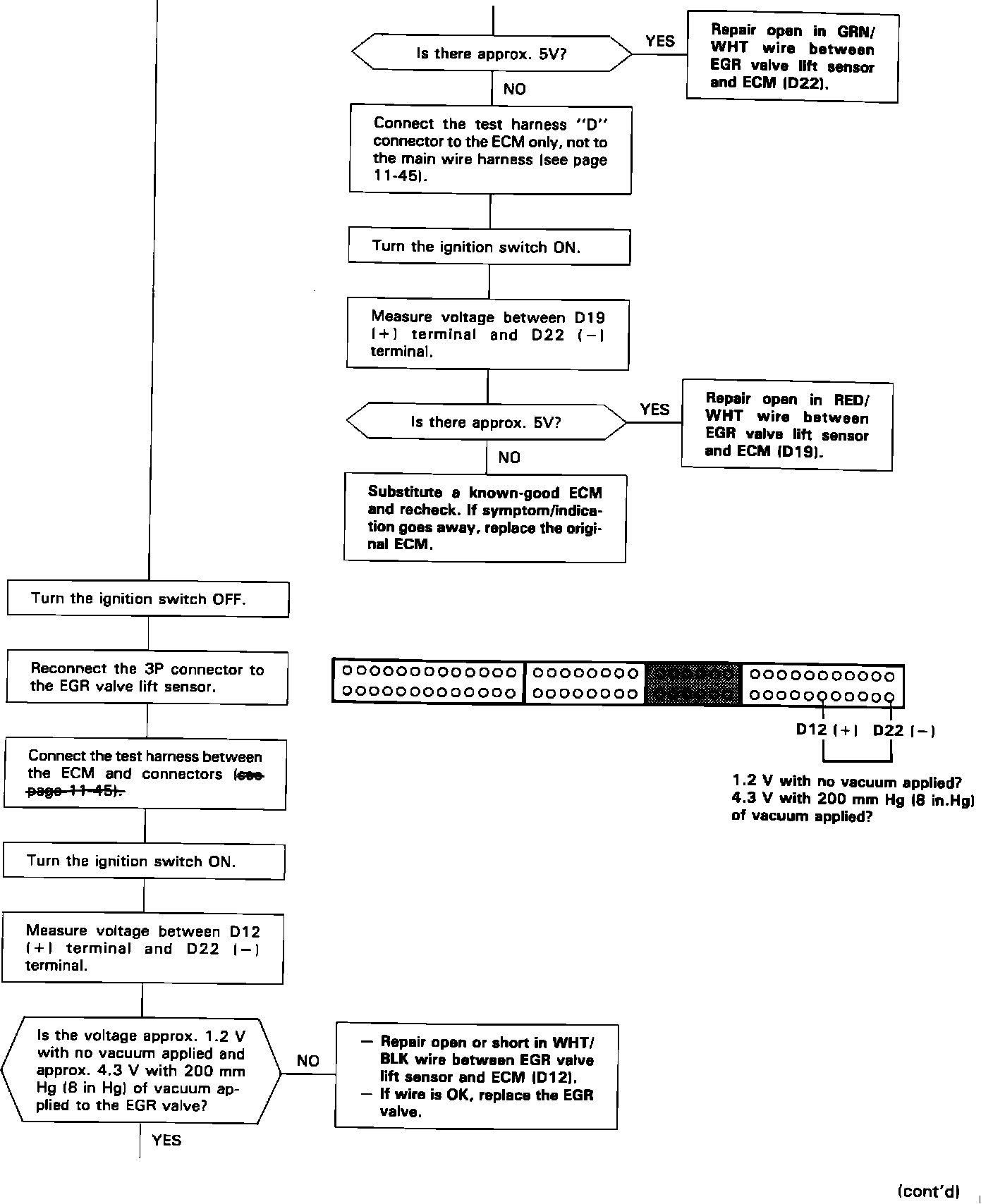

EGR System Testing Procedures:
4 OF 5
EGR System Testing Procedures:
5 OF 5
EGR SYSTEM TEST
