Power Mirror Motor Test

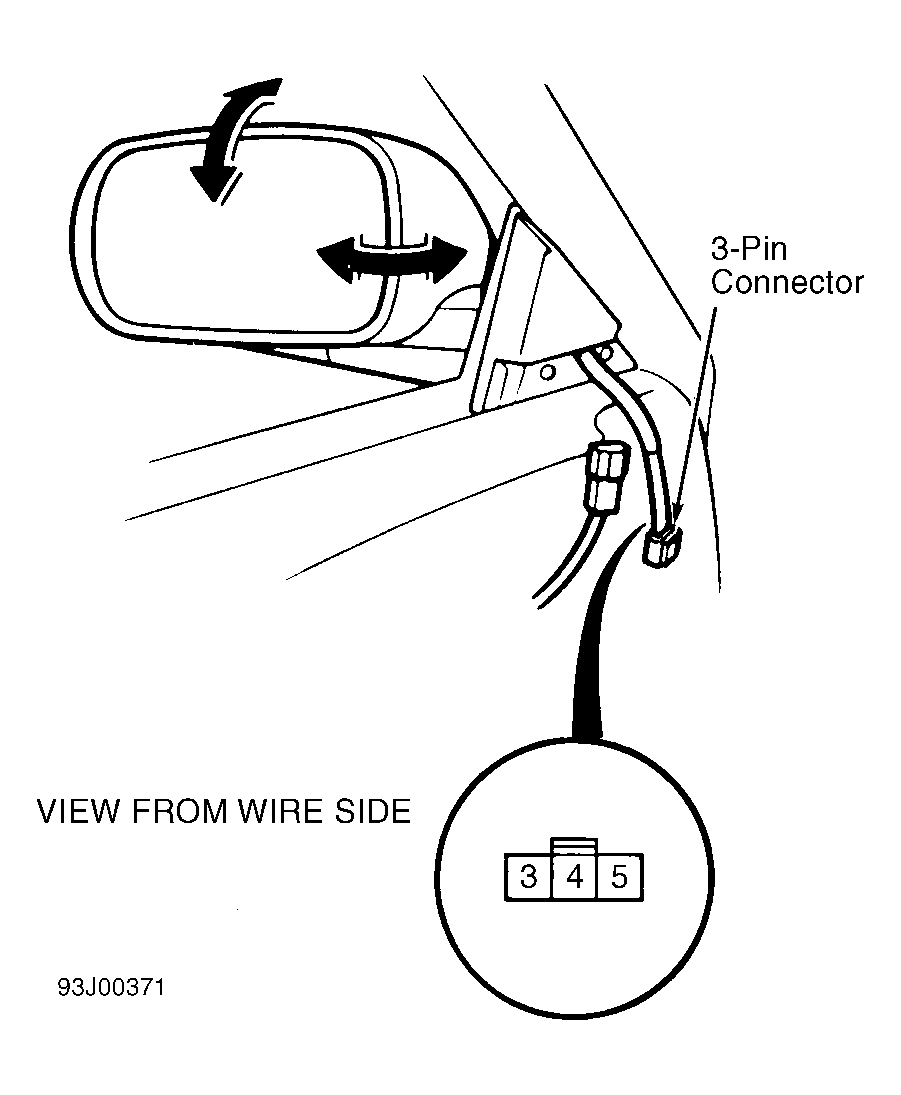

Remove door trim panel. Disconnect power mirror 3-pin connector. See Fig 1 . Using jumper wires, connect specified terminals. Observe mirror for correct movement. See POWER MIRROR MOTOR TEST table. If mirror does not respond as specified, replace mirror assembly.
POWER MIRROR MOTOR TEST
| Apply 12 Volts To Pin No. | Ground Pin No. | Mirror Operation |
|---|---|---|
| 3 | 4 | Up |
| 4 | 3 | Down |
| 4 | 5 | Left |
| 5 | 4 | Right |
