Passenger's Window Switch Test

Remove power window switch. See PASSENGER'S POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See POWER WINDOW PASSENGER'S SWITCH CONTINUITY TEST table.

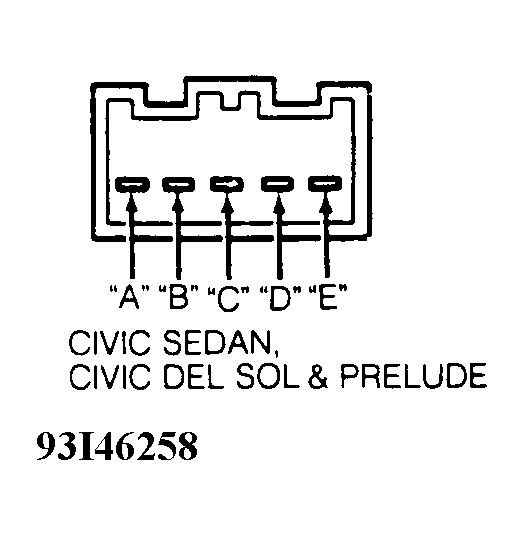

Fig 1: Power Window Passenger's Switch Terminal ID (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER WINDOW PASSENGER'S SWITCH CONTINUITY TEST

Switch Position	Continuity
Off	"B" & "C"; "D" & "E"
Up	"A" & "D"
Down	"A" & "B"
