Problem Code 10, 12, 16

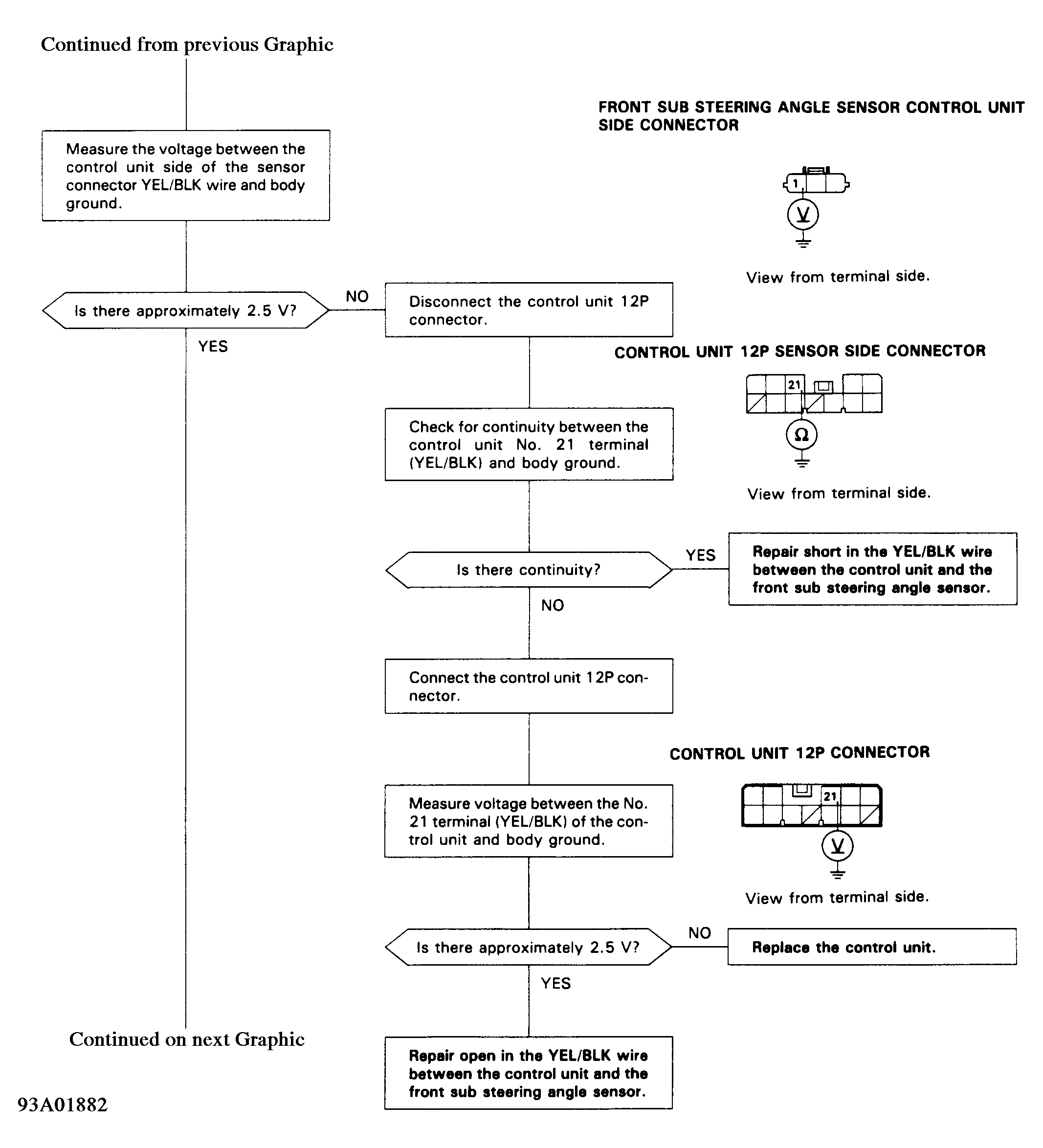

Fig 1: Problem Code 10, 12, 16 (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

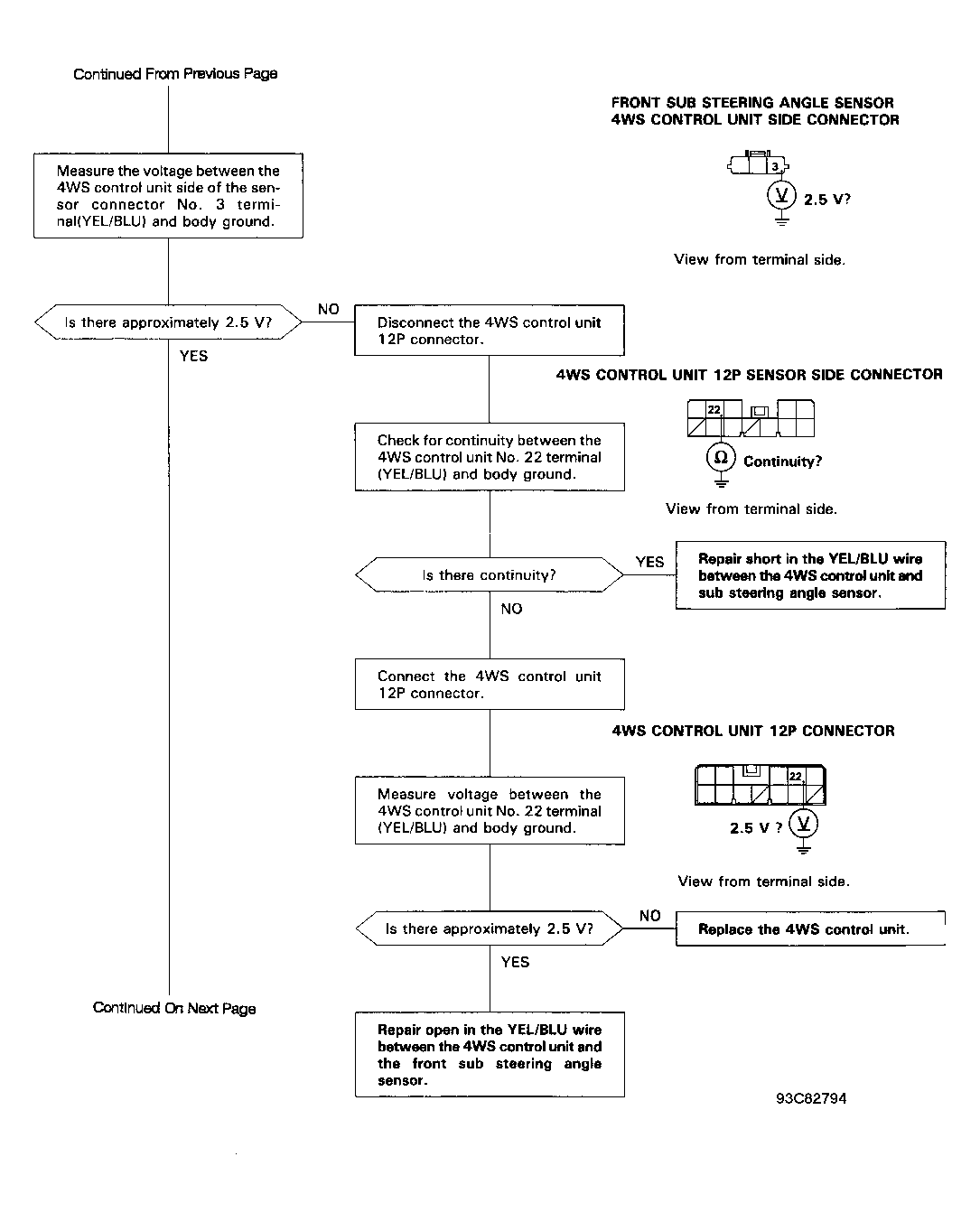

Fig 2: Problem Code 10, 12, 16 (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

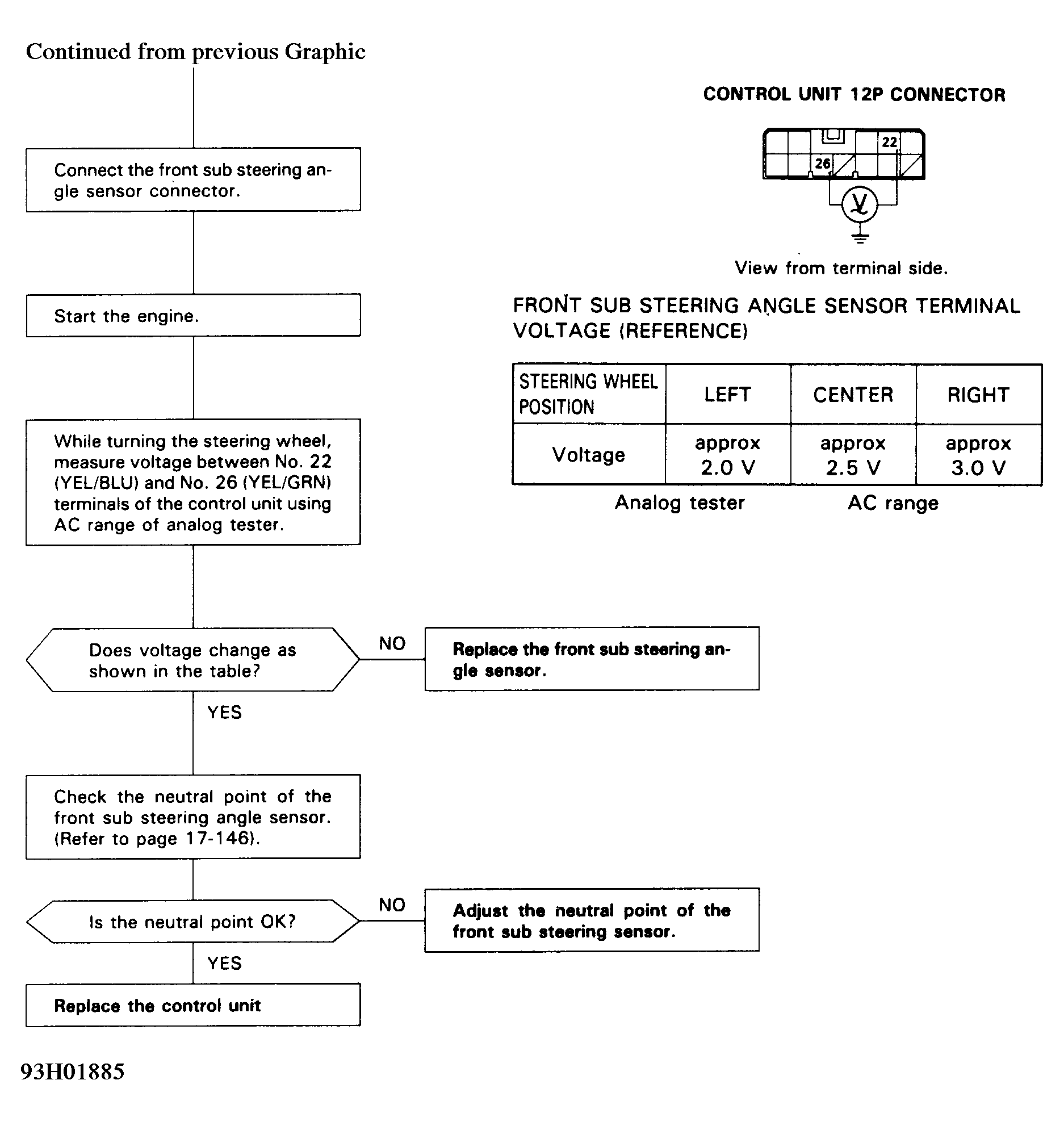

Fig 3: Problem Code 10, 12, 16 (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

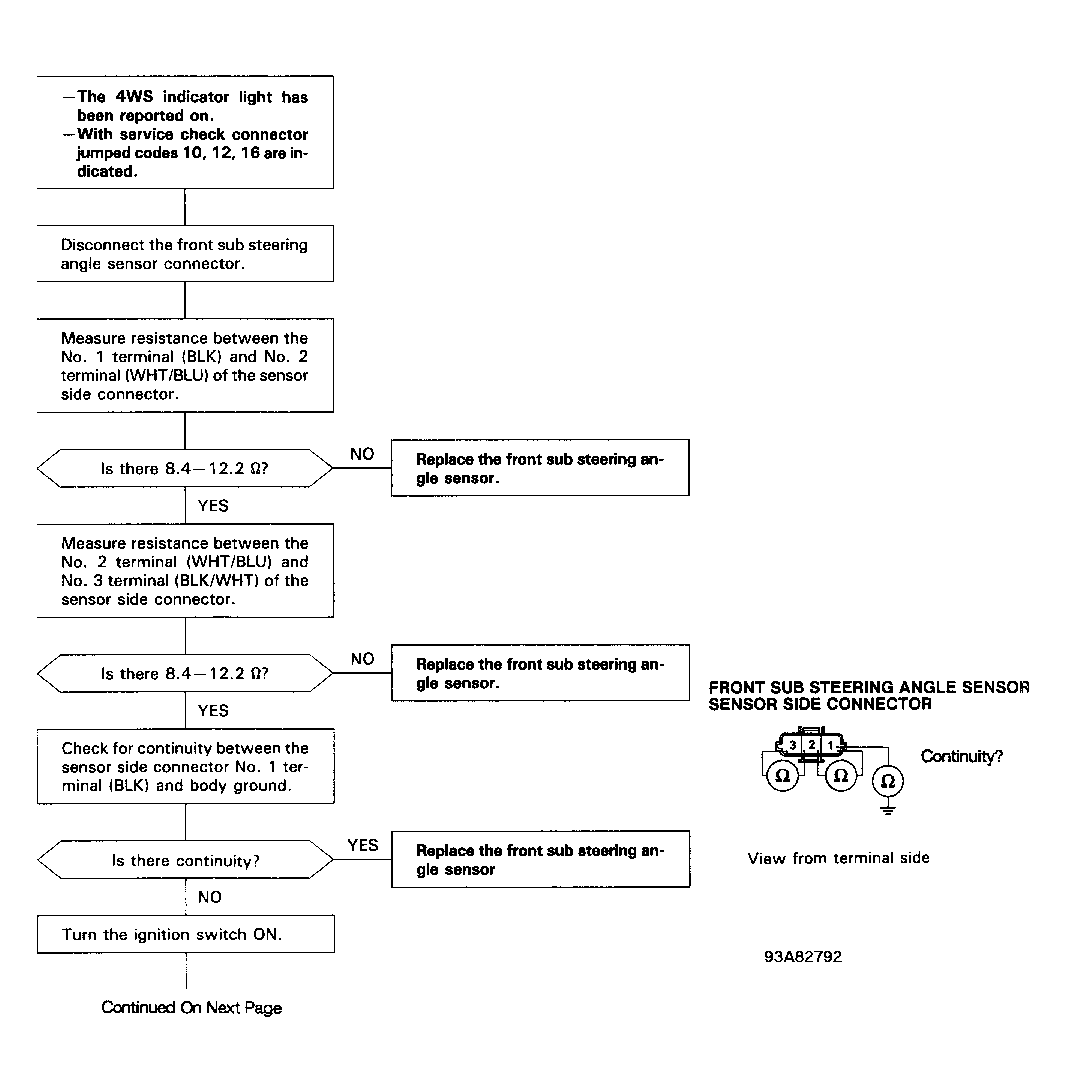

Fig 4: Problem Code 10, 12, 16 (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

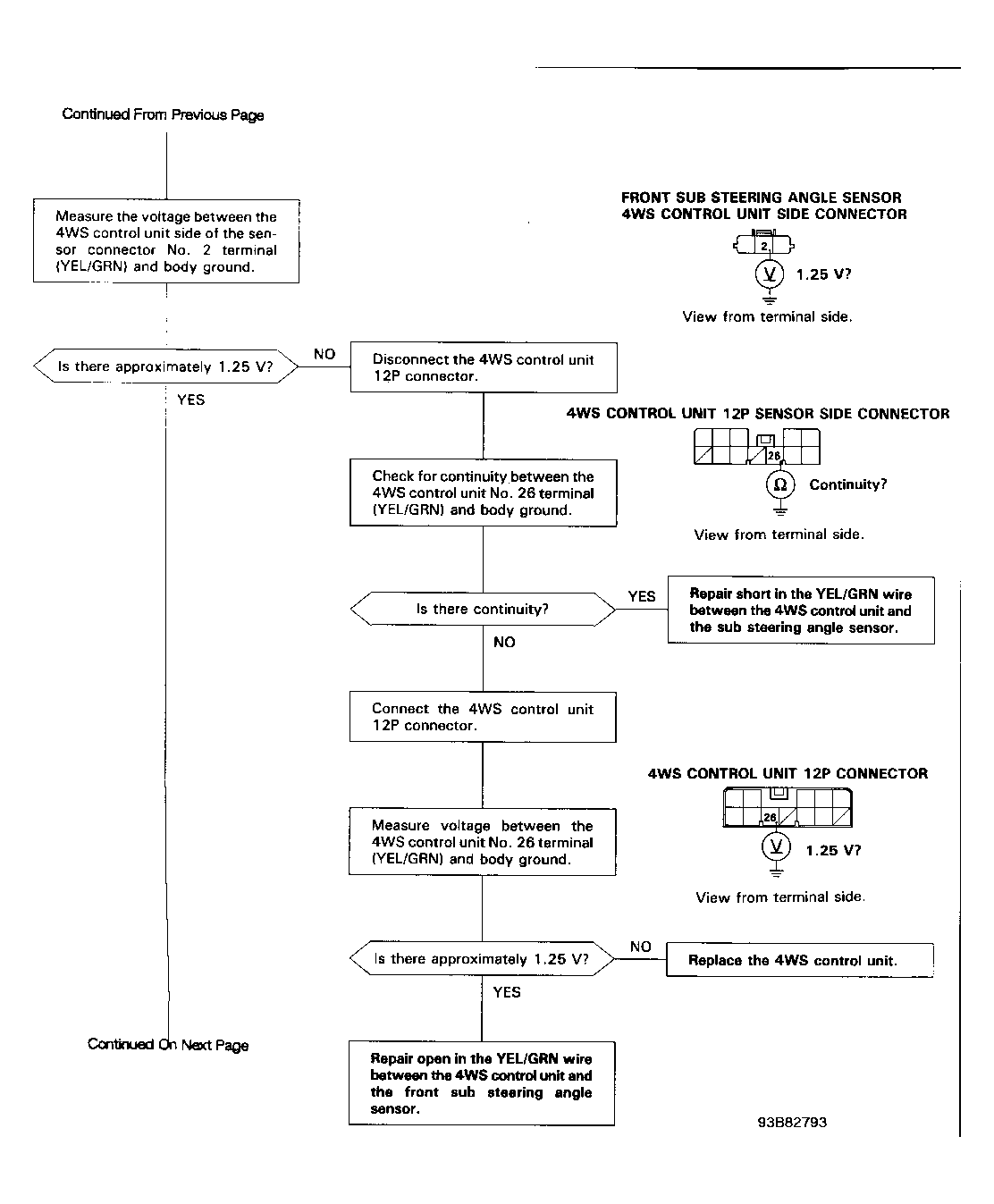

Fig 5: Problem Code 10, 12, 16 (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
