Problem Code 11, 13, 17

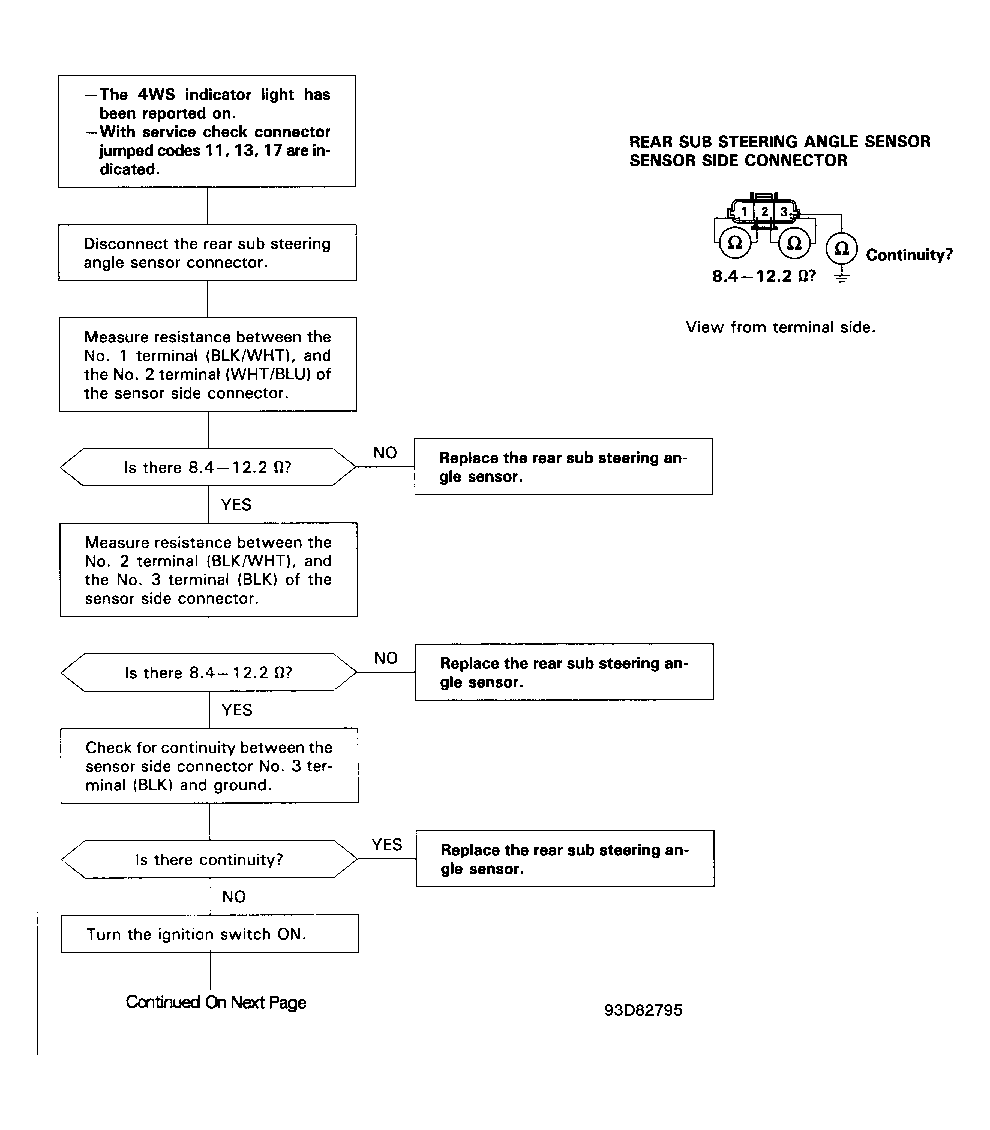

Fig 1: Problem Code 11, 13, 17 (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

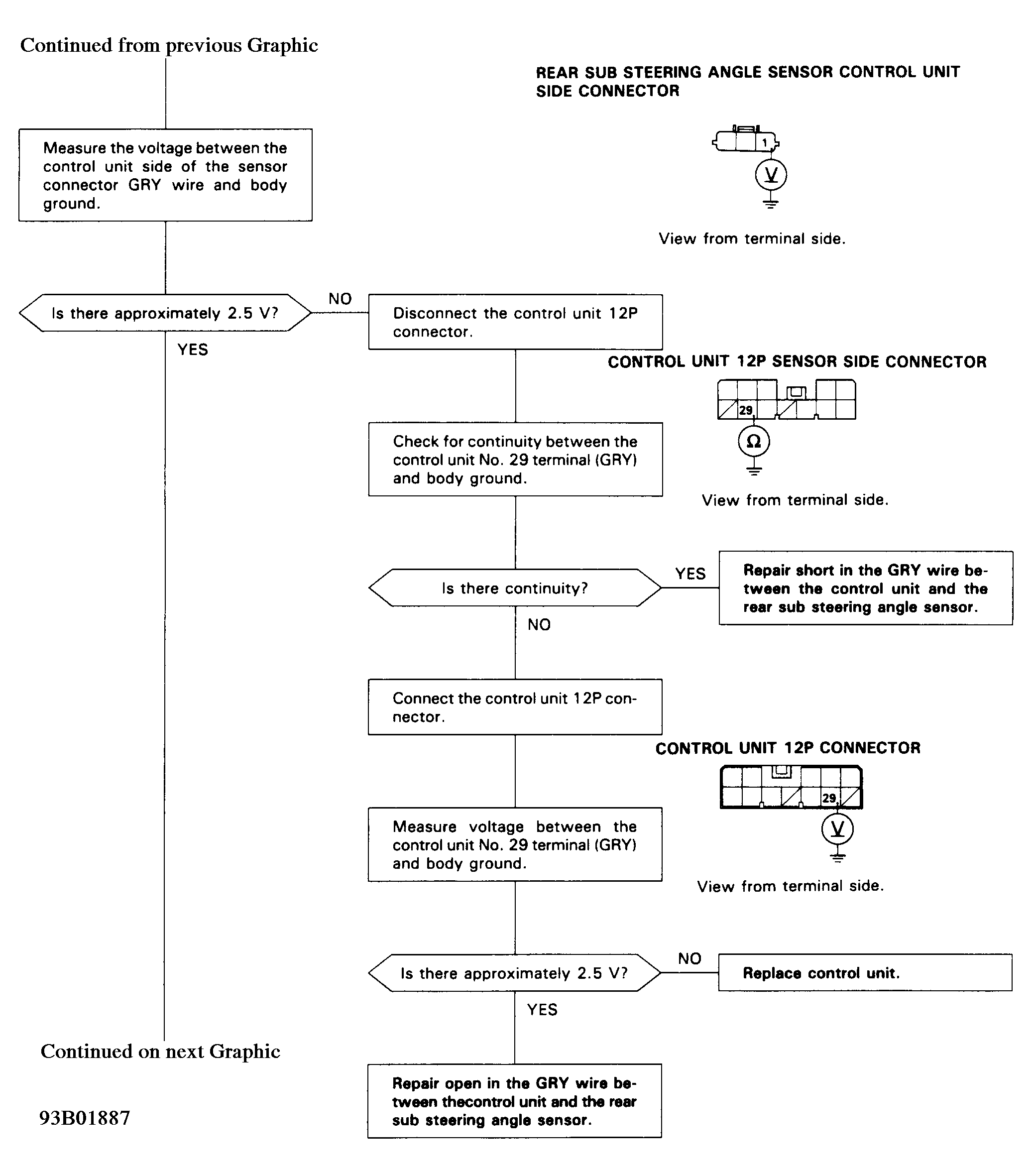

Fig 2: Problem Code 11, 13, 17 (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

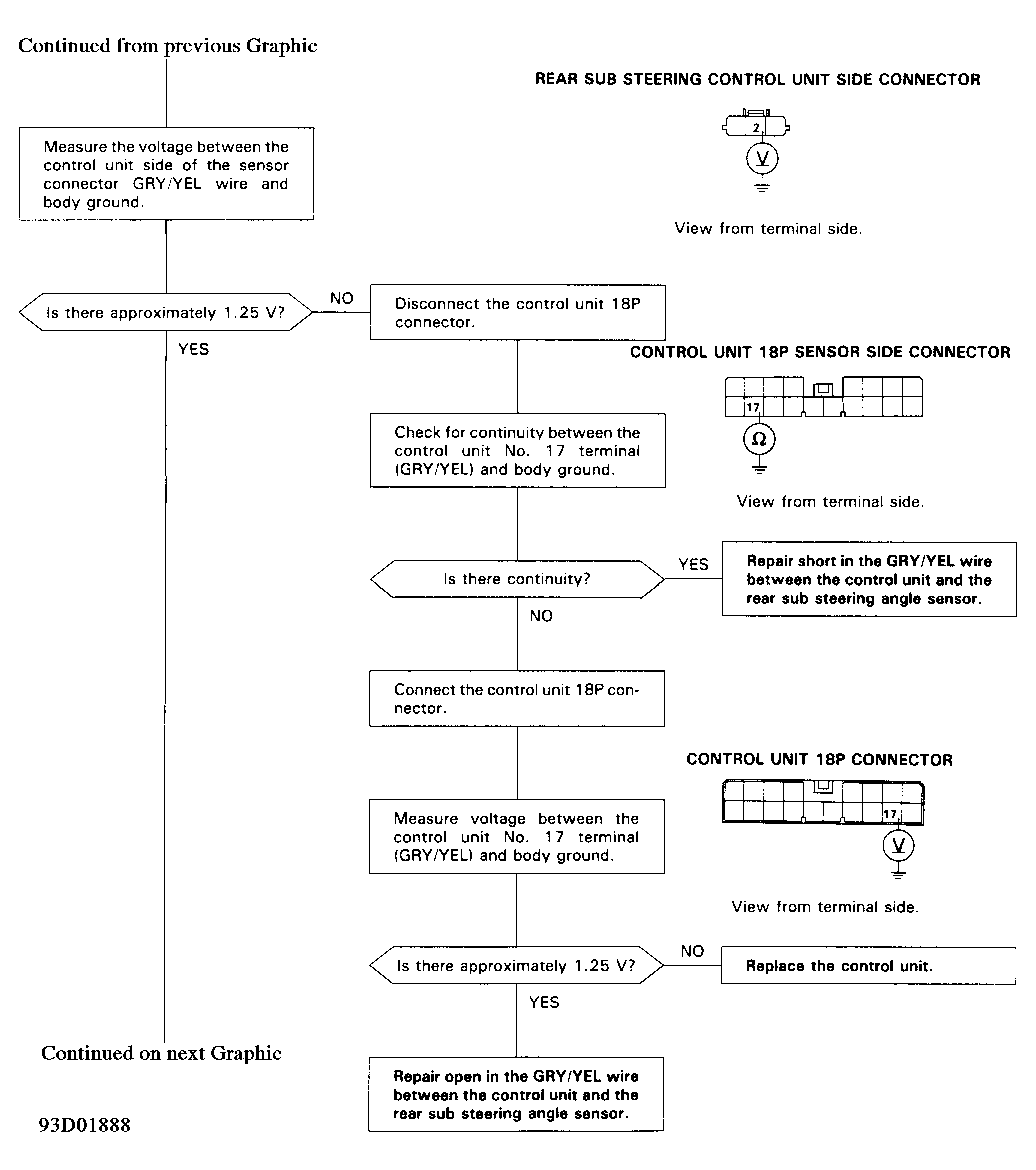

Fig 3: Problem Code 11, 13, 17 (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

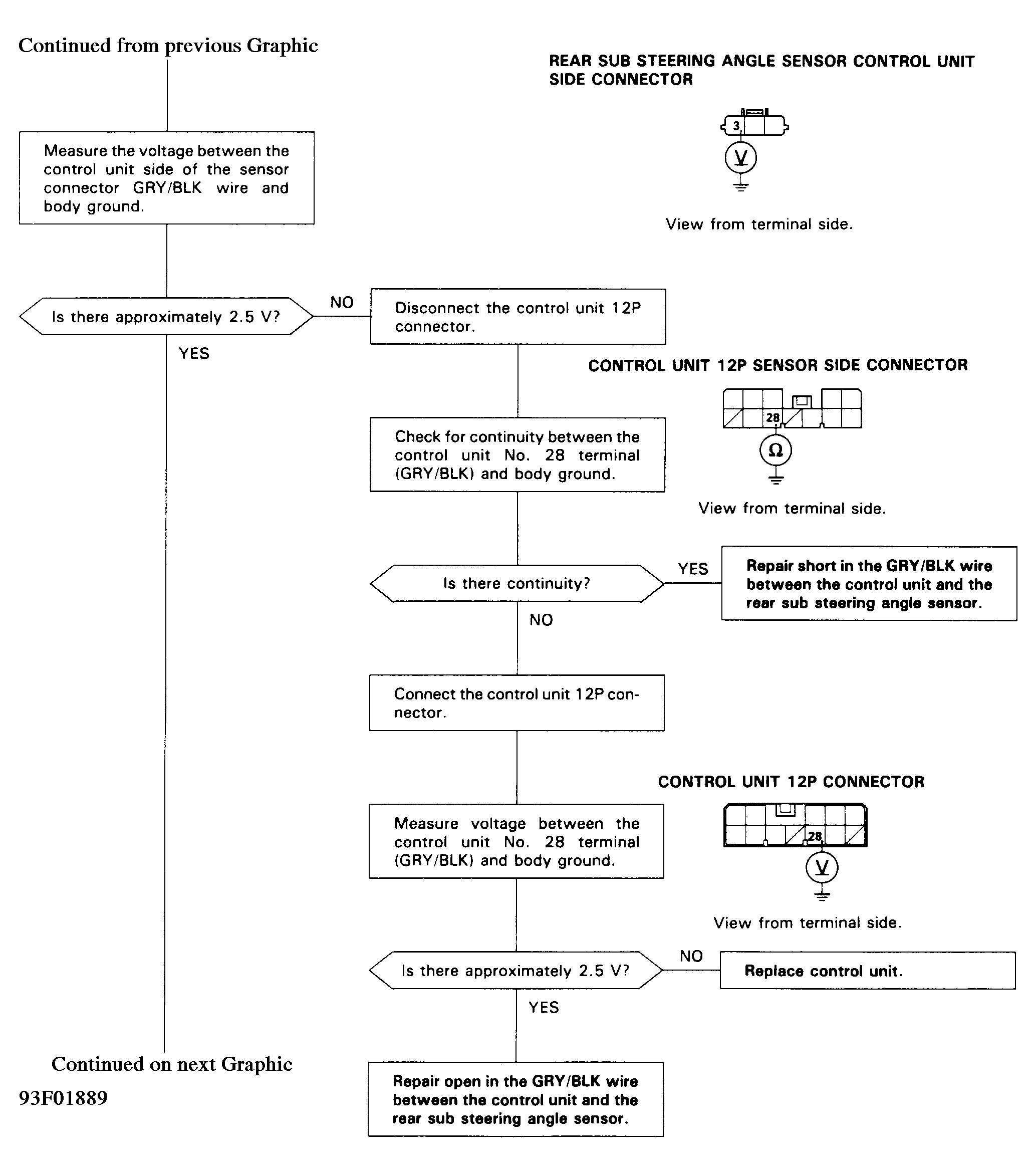

Fig 4: Problem Code 11, 13, 17 (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

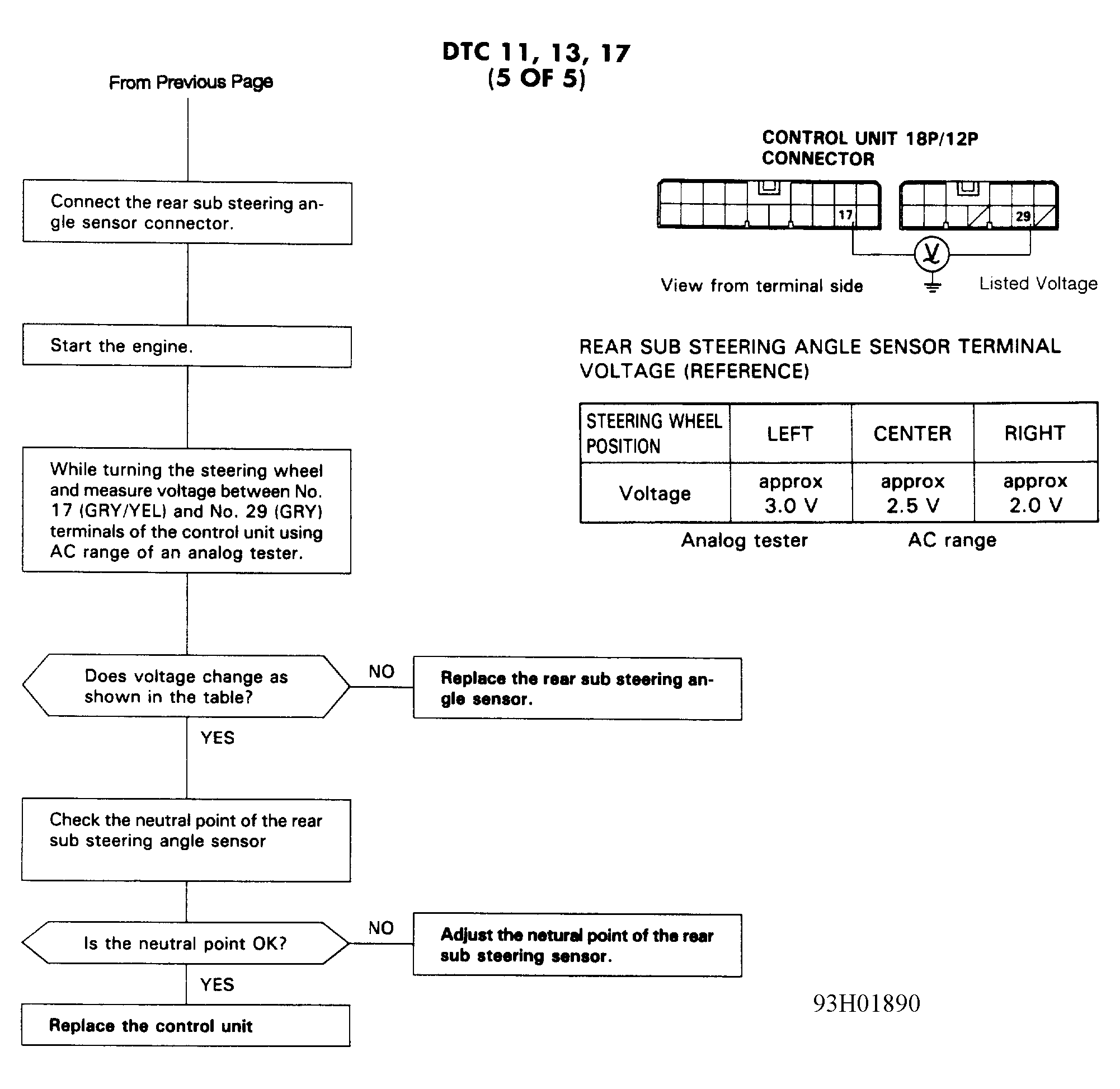

Fig 5: Problem Code 11, 13, 17 (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
