Oxygen Sensor: Locations

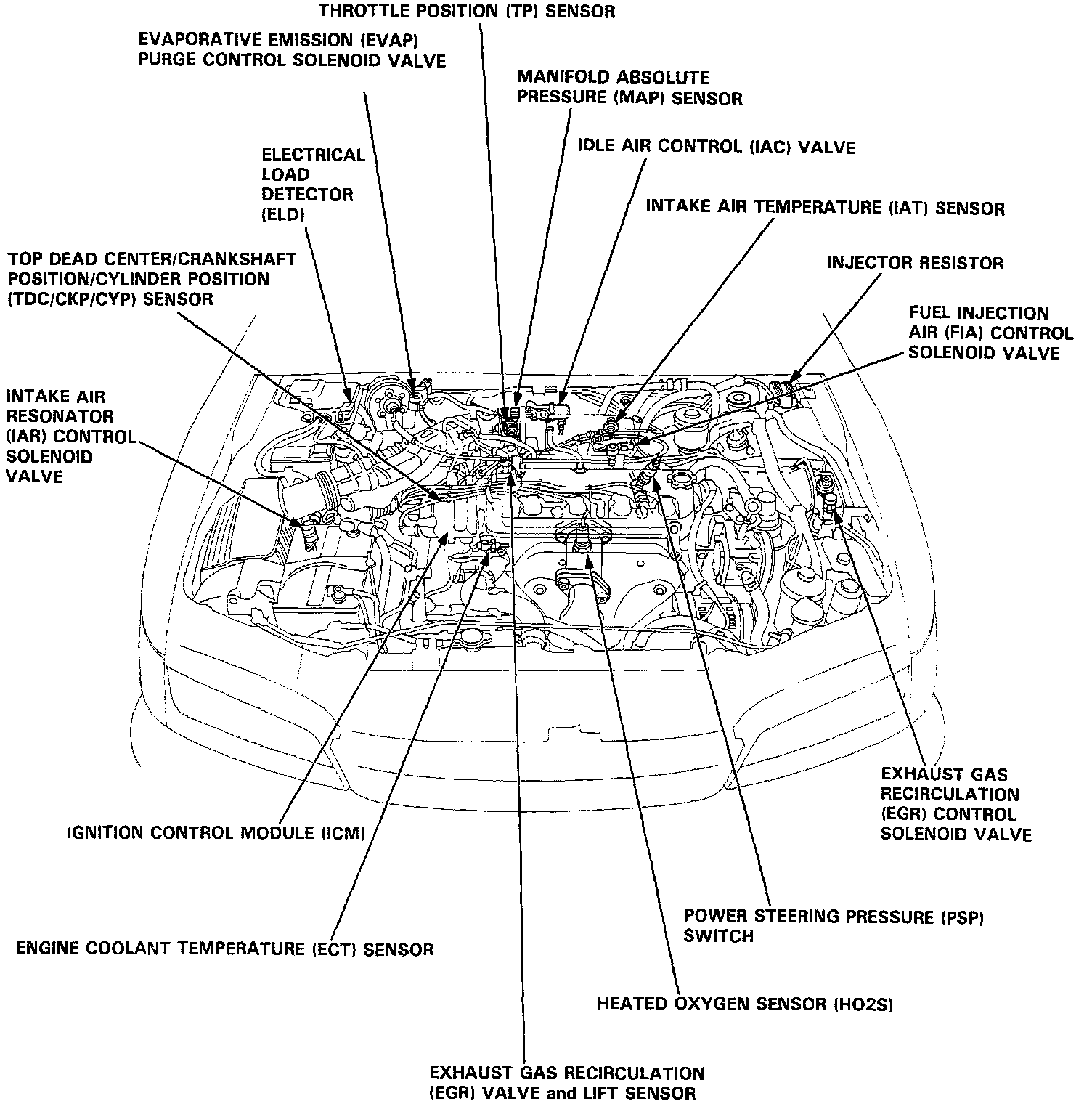

Underhood Components:




The Heated Oxygen (HO2S) sensor is located on the exhaust header pipe, below the left axle.
