Code 1 - Oxygen Sensor (O2S) Circuit D15B8 Federal Model

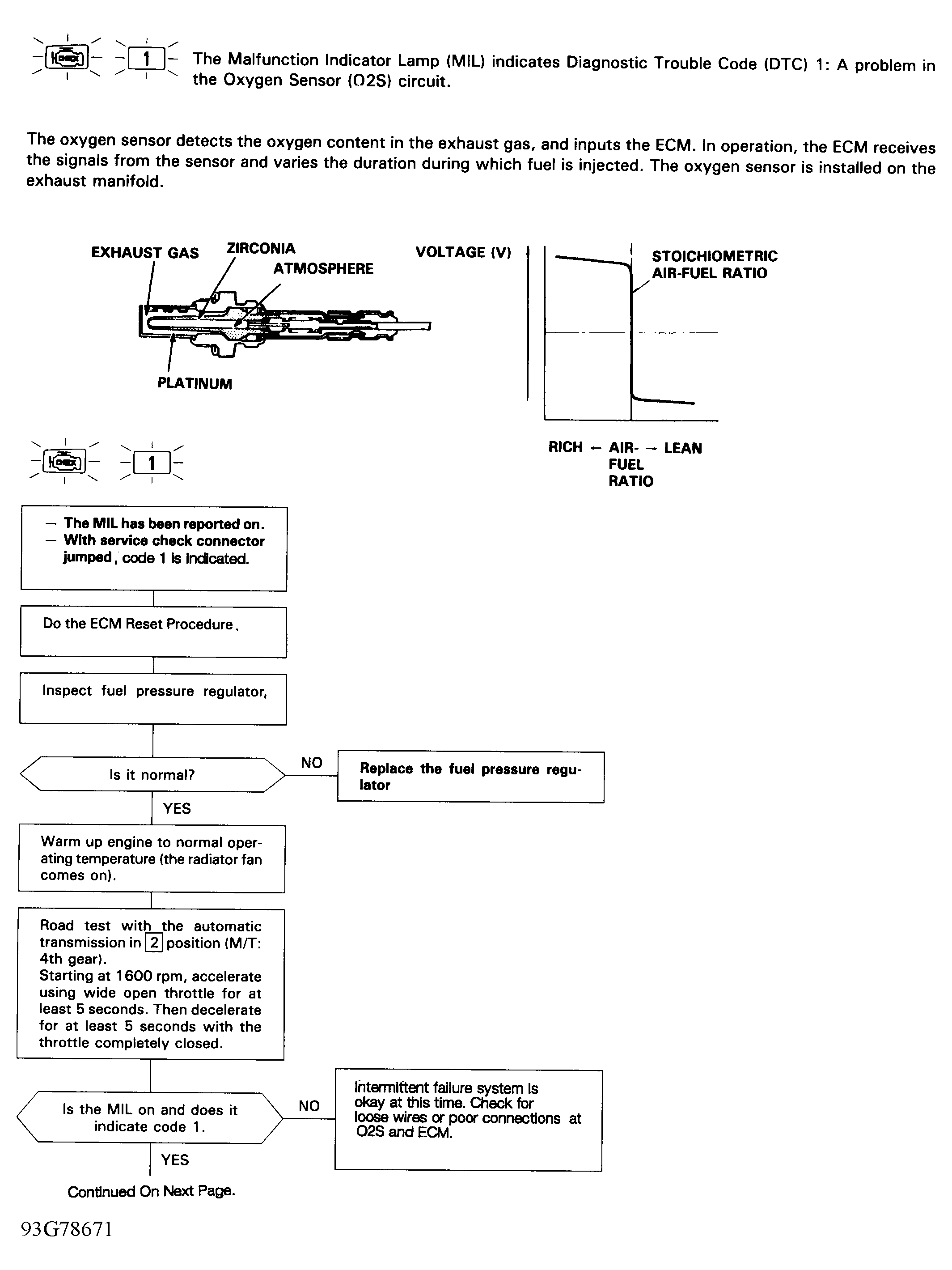

Fig 1: Code 1 Flow Chart (1 of 2) Oxygen Sensor (O2S) Circuit D15B8 Federal Model
G93G78671

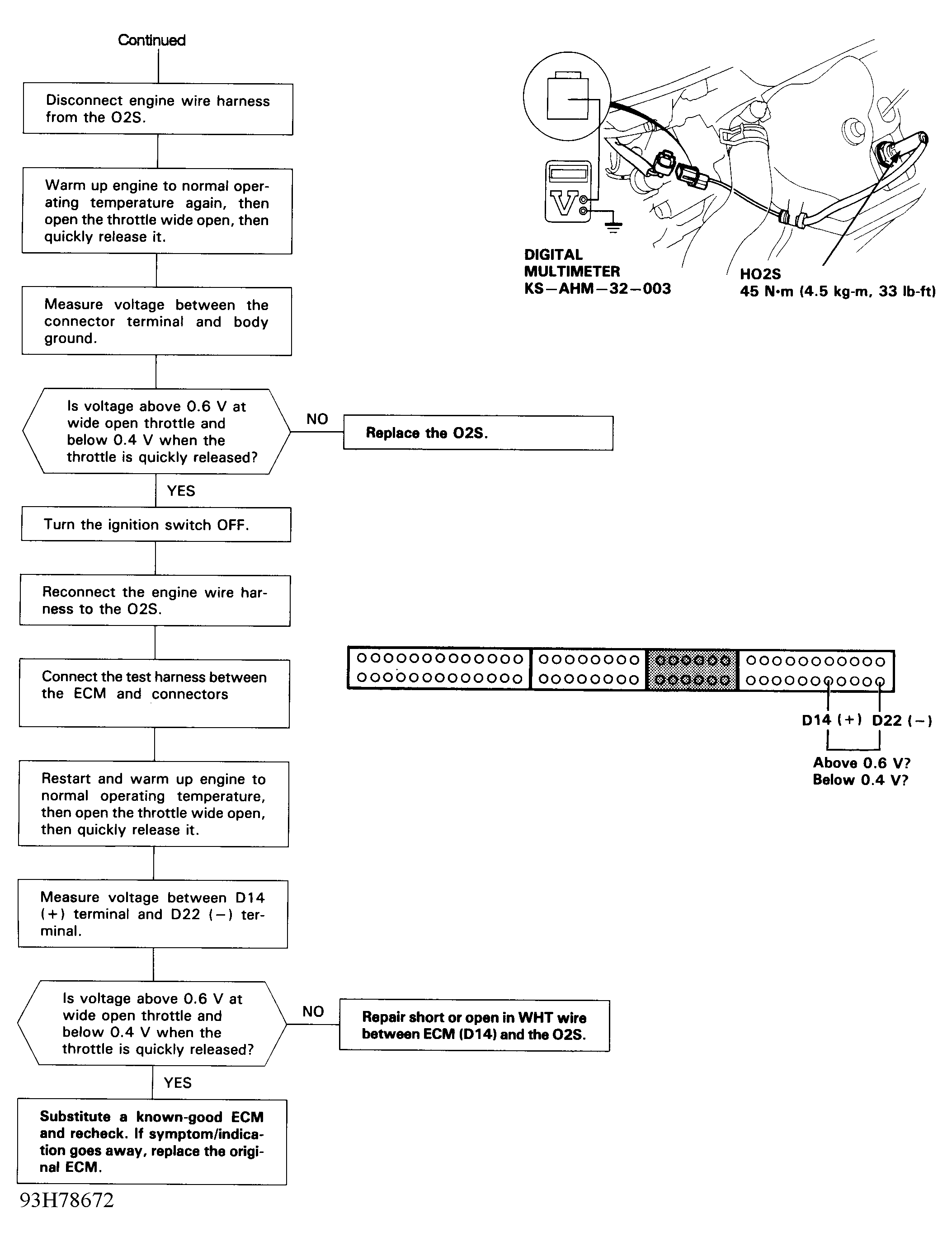

Fig 2: Code 1 Flow Chart (2 of 2) Oxygen Sensor (O2S) Circuit D15B8 Federal Model
G93H78672
