Code 5 - Map Sensor Circuit

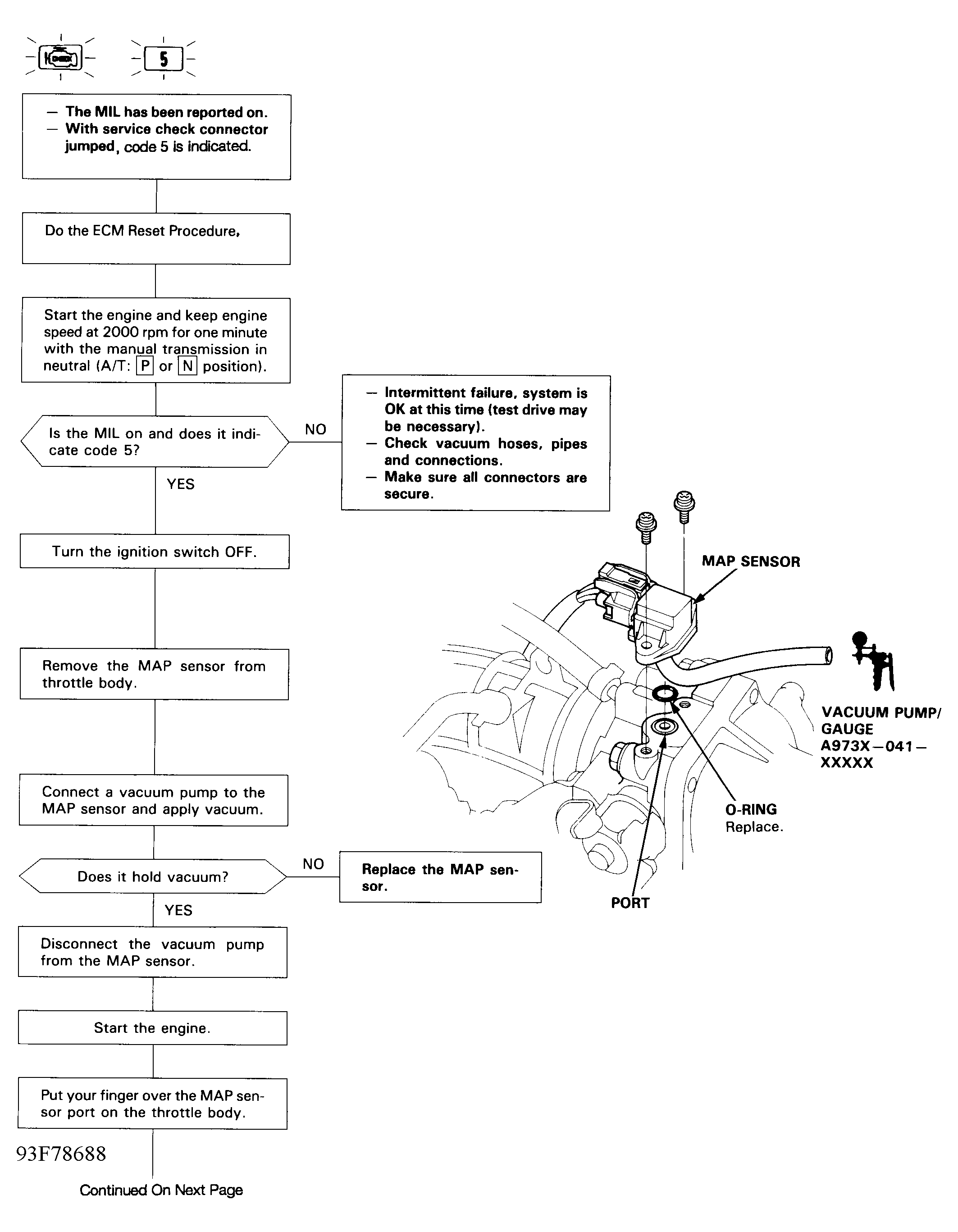

Fig 1: Code 5 Flow Chart (1 of 2) MAP Sensor Circuit

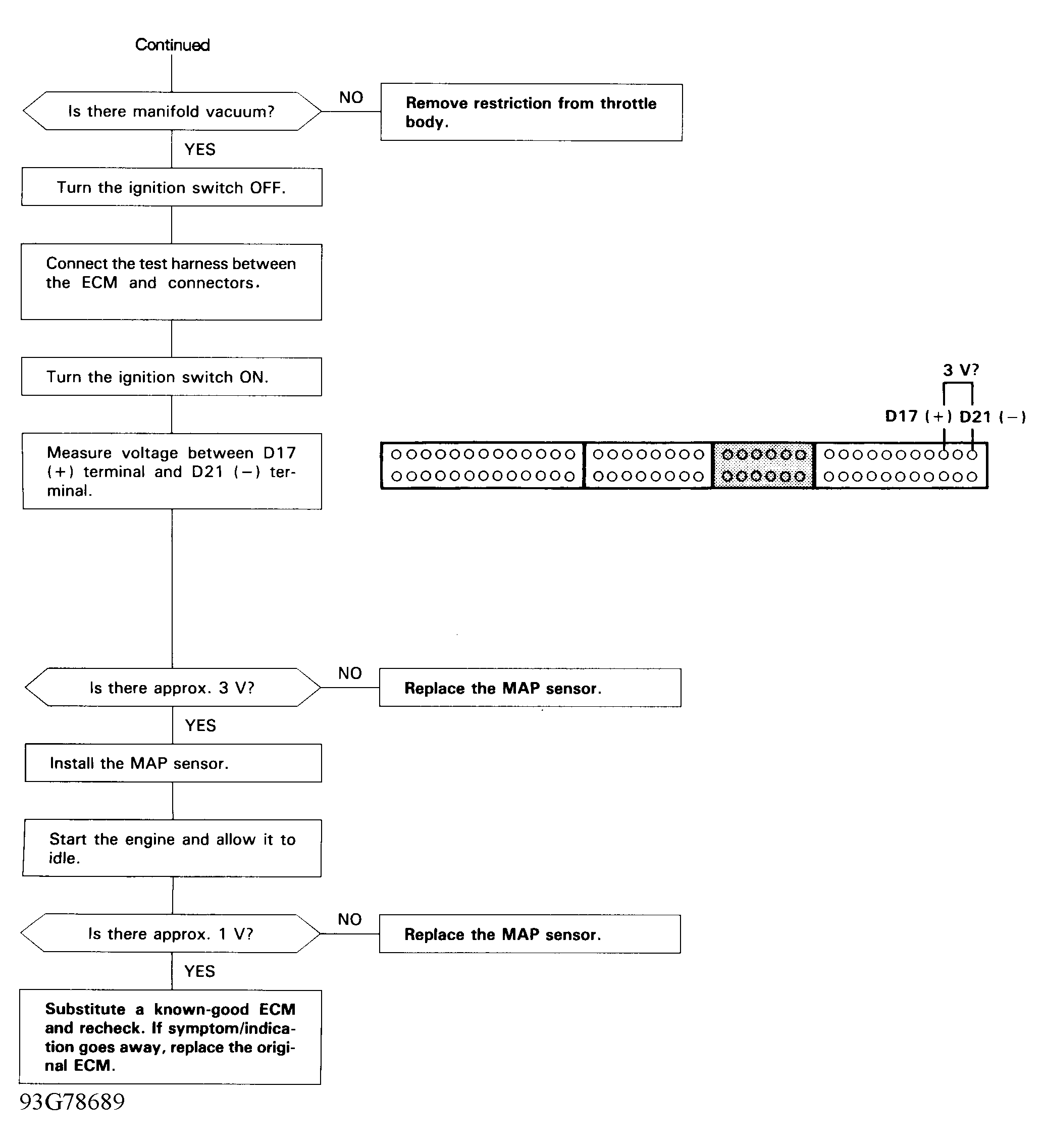

Fig 2: Code 5 Flow Chart (2 of 2) MAP Sensor Circuit
