Code 7 - Throttle Position (TP) Sensor

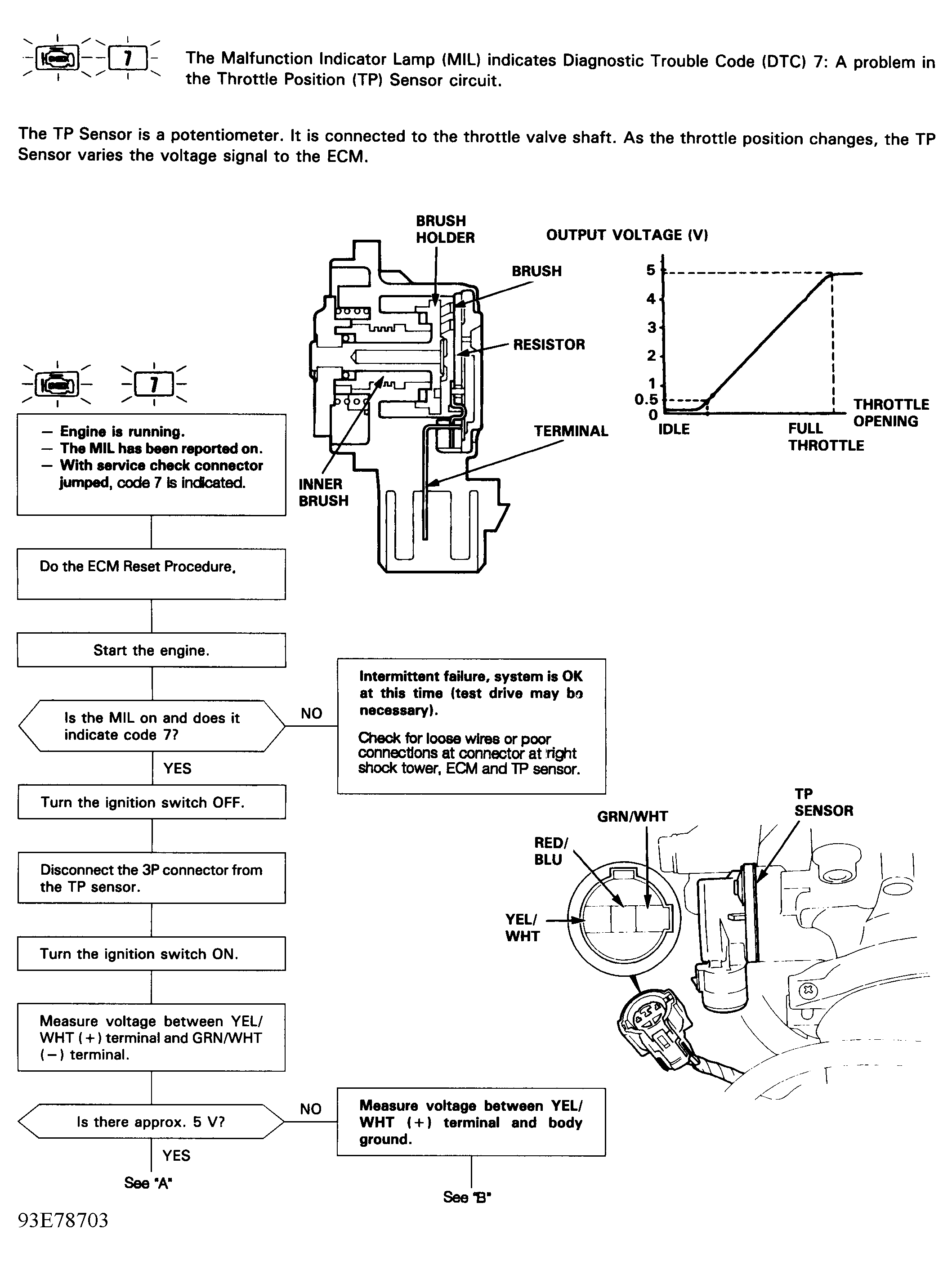

Fig 1: Code 7 Flow Chart (1 of 2) Throttle Position (TP) Sensor
G93E78703

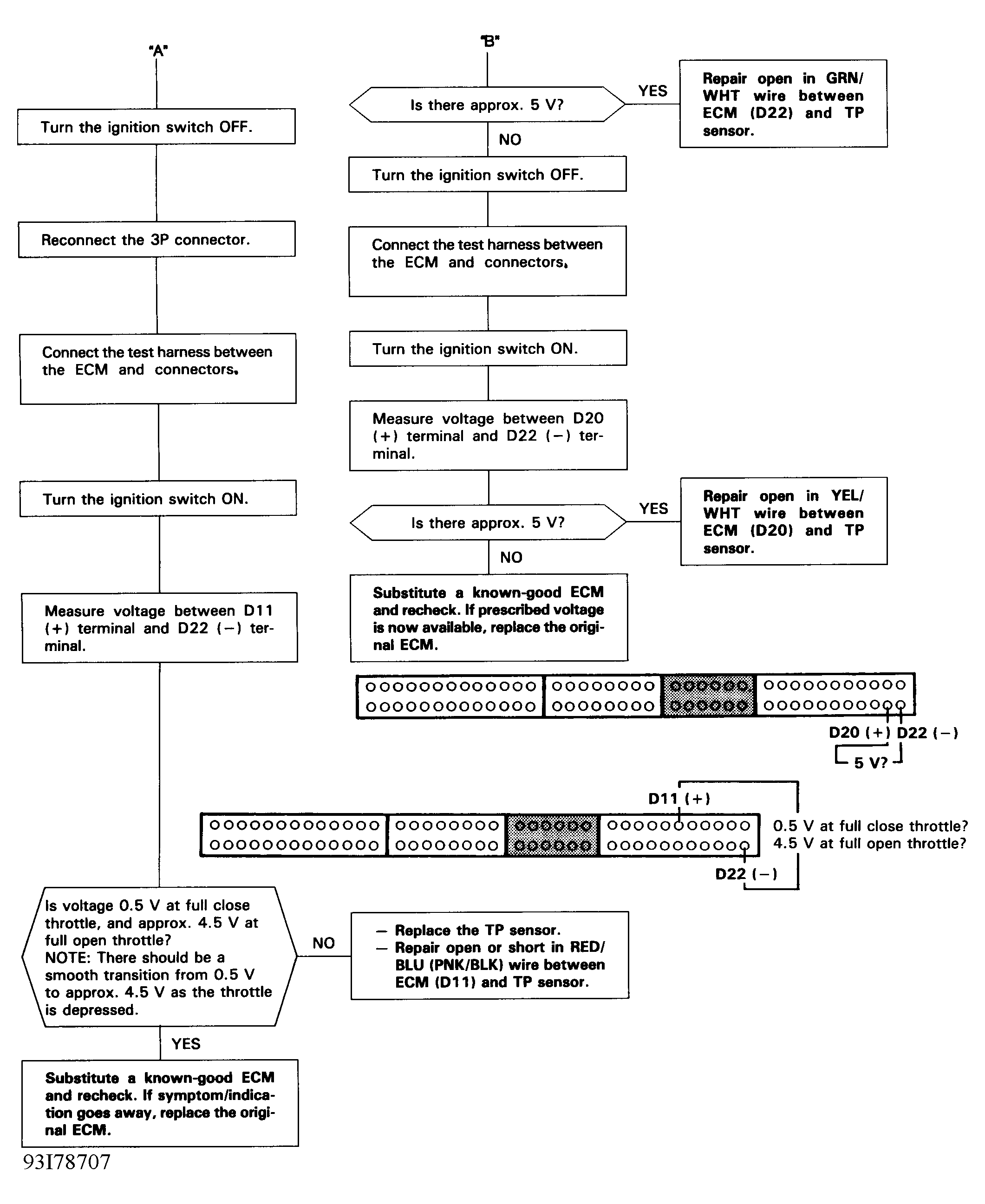

Fig 2: Code 7 Flow Chart (2 of 2) Throttle Position (TP) Sensor
G93I78707
