Switch Inputs Test

NOTE: Some wires have been assigned a superscript to distinguish them from other wires of the same color. For example, the Yellow/Green(1) wire is not the same as the Yellow/Green (2) wire.

Turn ignition off. Remove driver's door panel. Unplug connectors from master switch. Using a DVOM, perform appropriate switch input tests. See Fig 1 -Fig 4 . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power windows still malfunction, replace master switch.

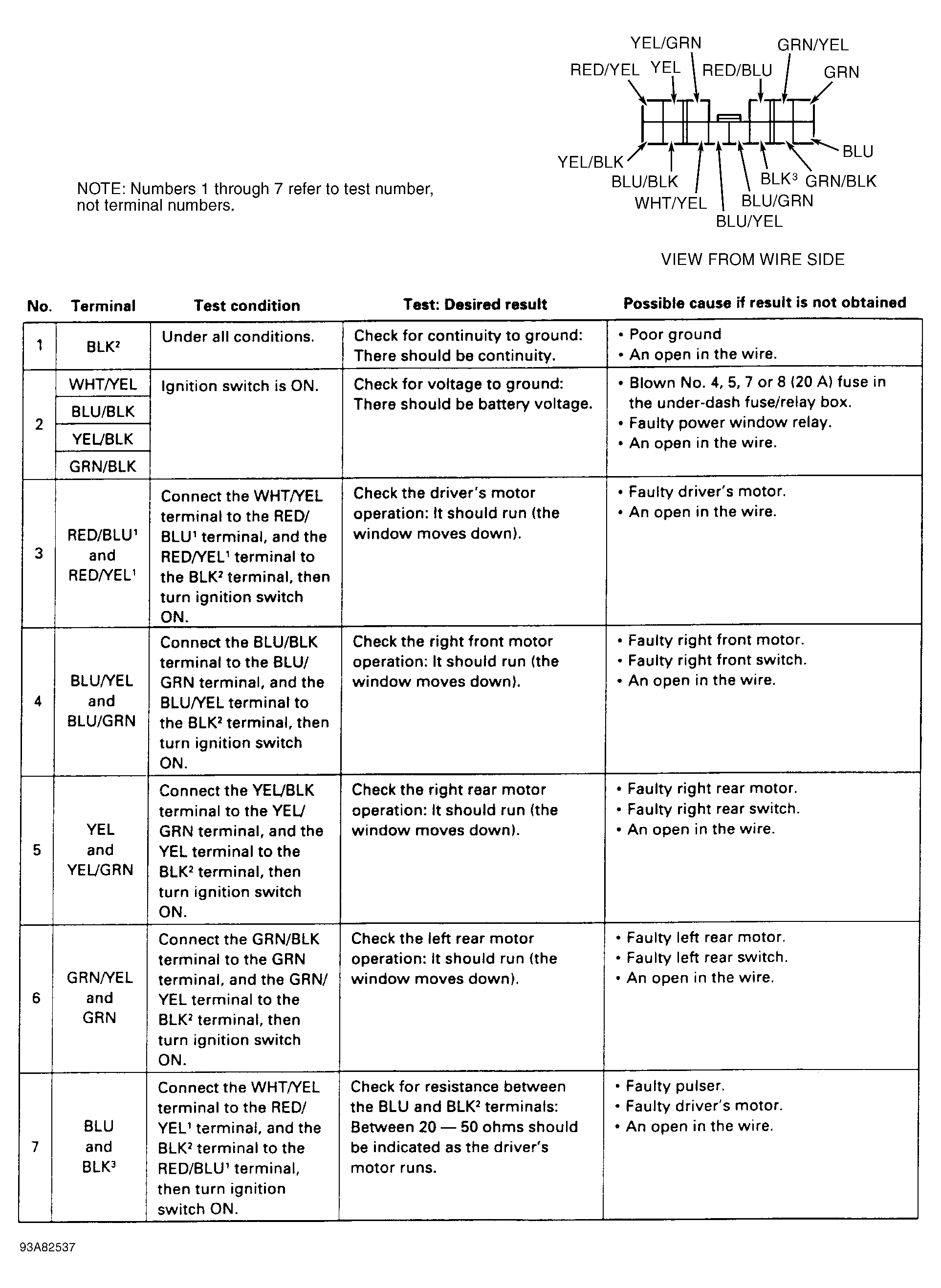

Fig 1: Switch Input Test (Civic Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

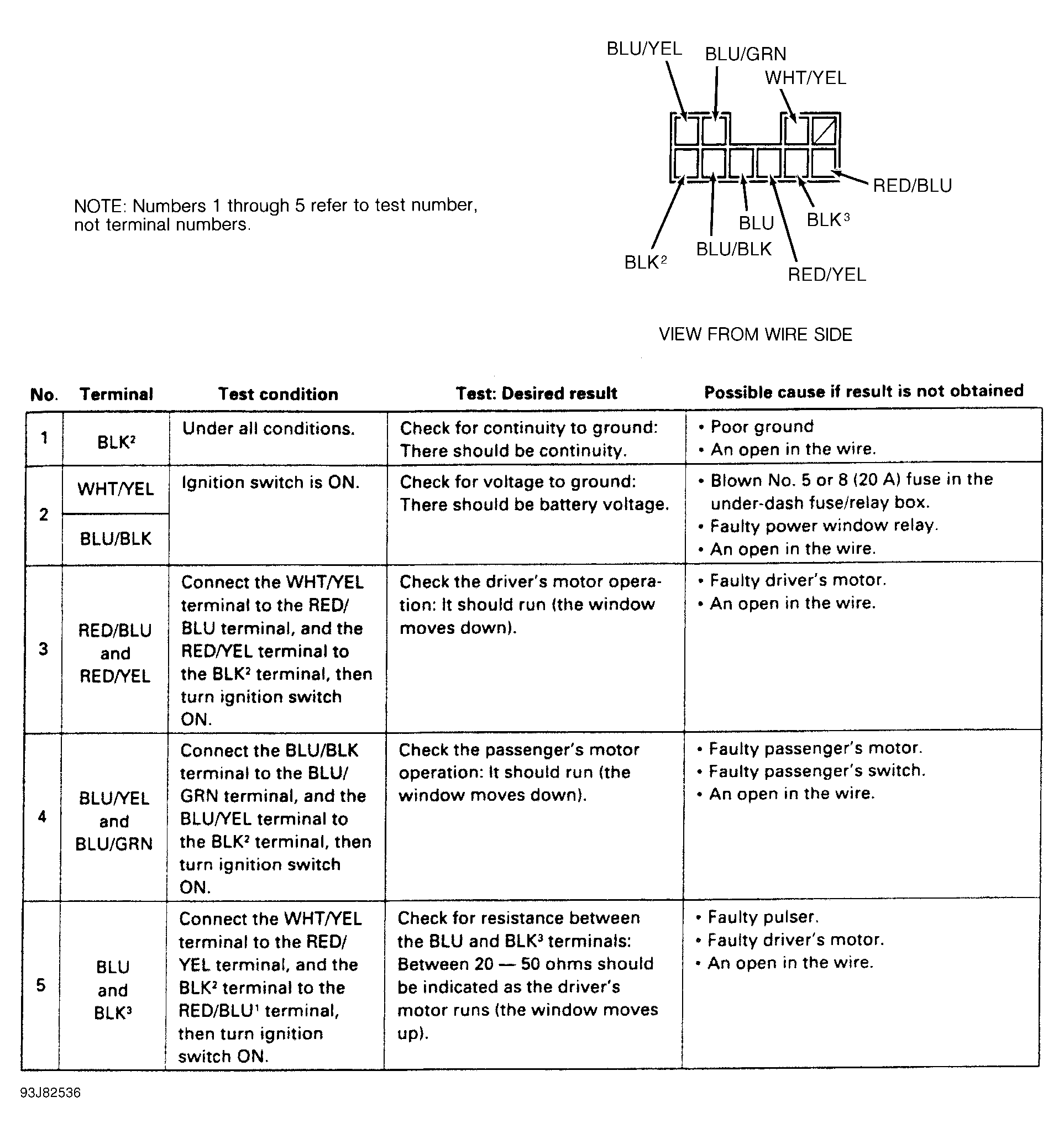

Fig 2: Switch Input Test (Civic Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

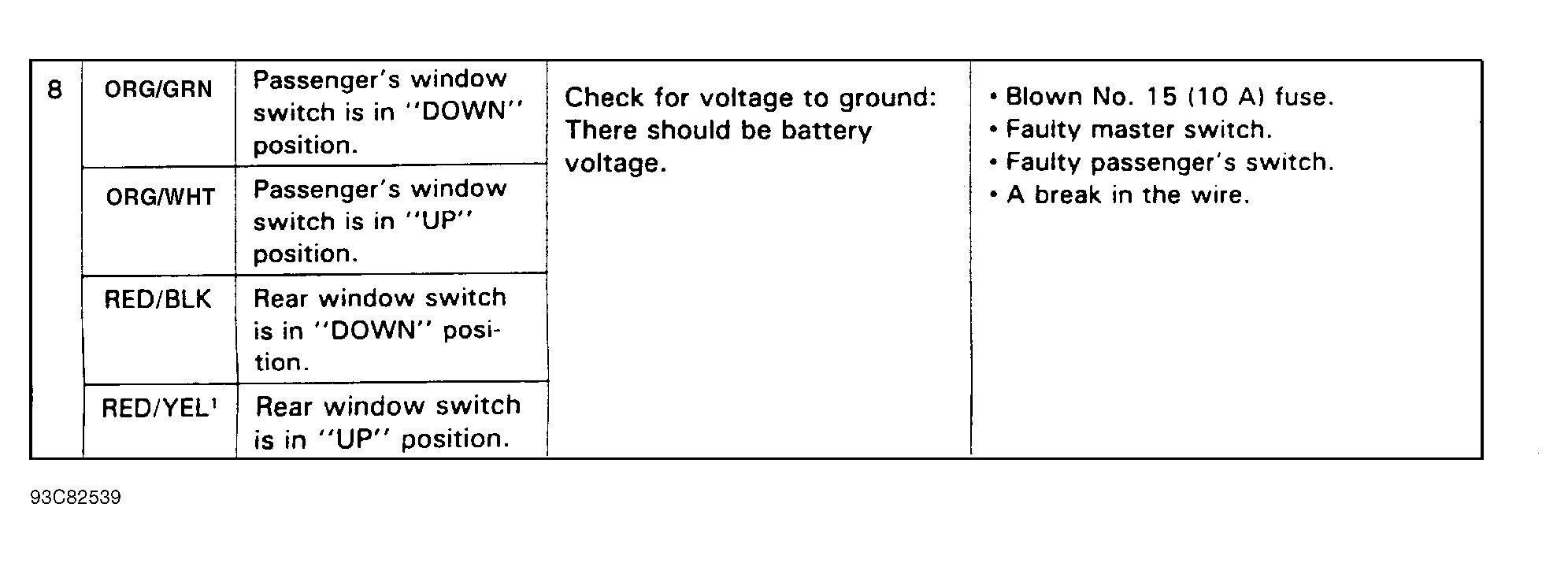

Fig 3: Switch Input Test (Civic Del Sol - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

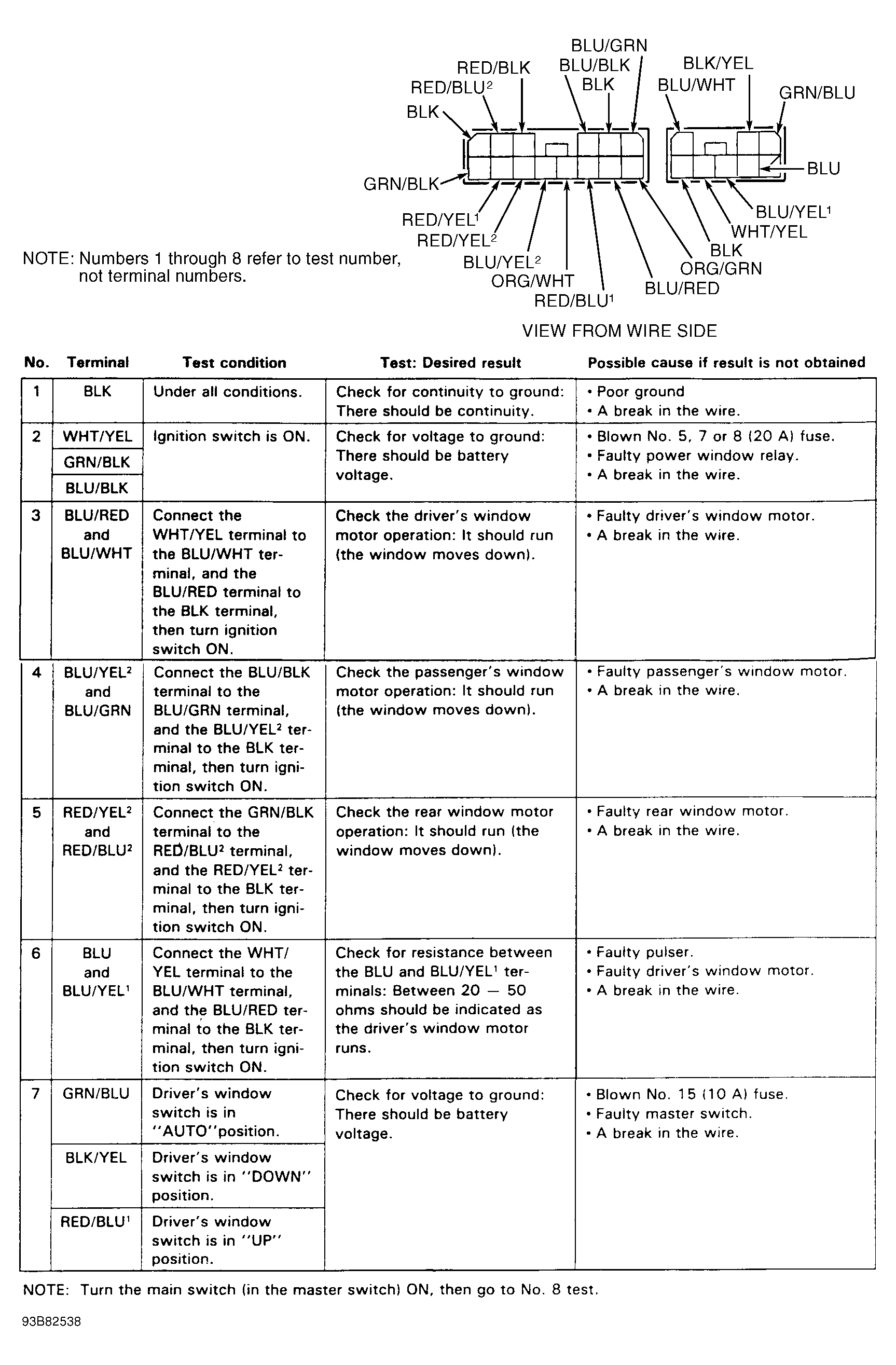

Fig 4: Switch Input Test (Civic Del Sol - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
