Wiper System

For connector terminal identification, see Figure . For input test, see Fig 1 .

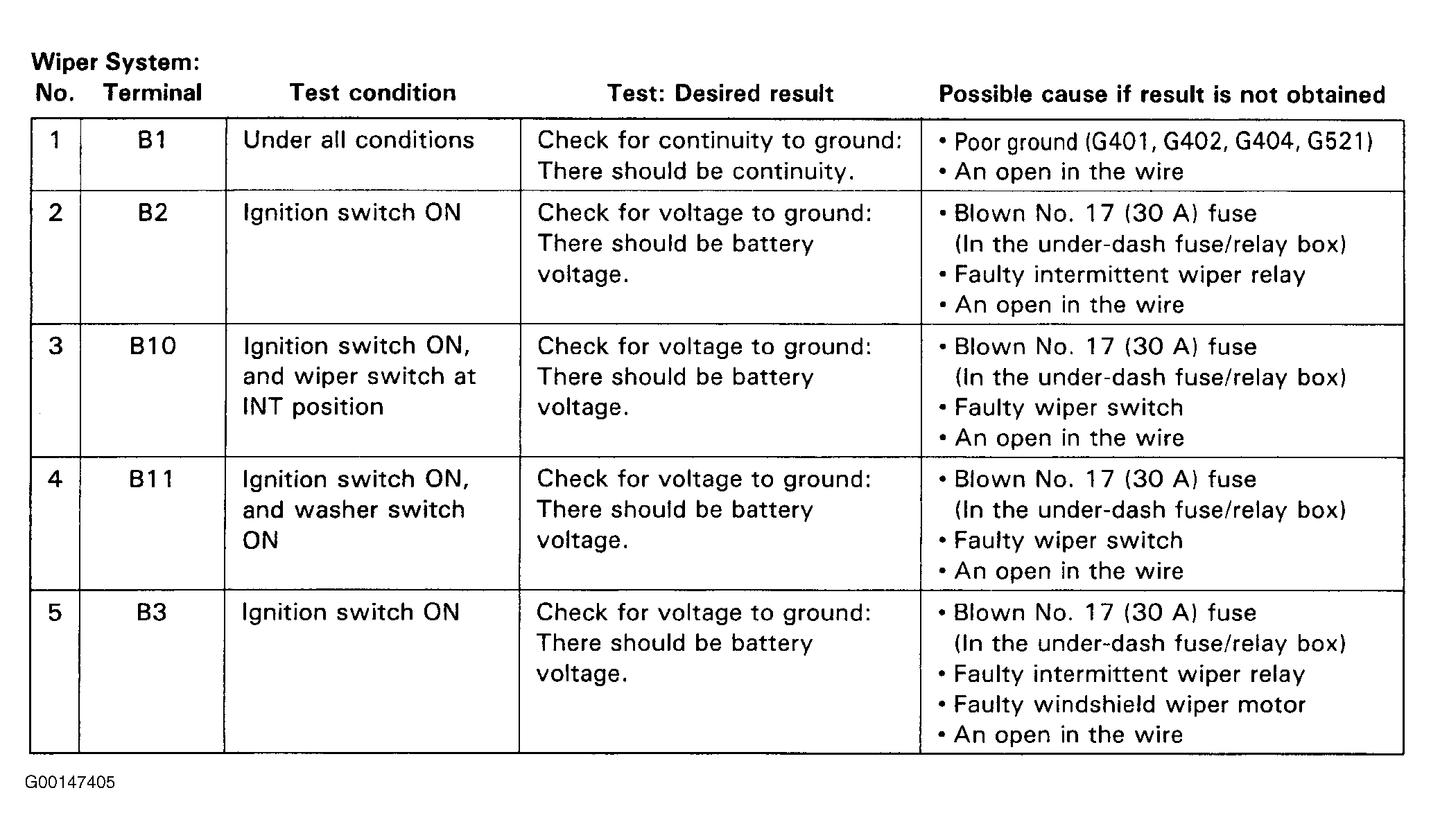

Fig 1: Wiper System Input Test
G00147405Courtesy of AMERICAN HONDA MOTOR CO., INC.
