Hazard Warning Switch Test

WARNING: This page is about a different car, the 1993 Honda Prelude. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console trim panel. Remove retaining screw from switch. Slowly rotate switch clockwise and remove from console. Disconnect 6-pin connector. With hazard switch in specified position, use an ohmmeter to check continuity between switch terminals. See Fig 1 . If continuity is not as specified, replace hazard warning switch.

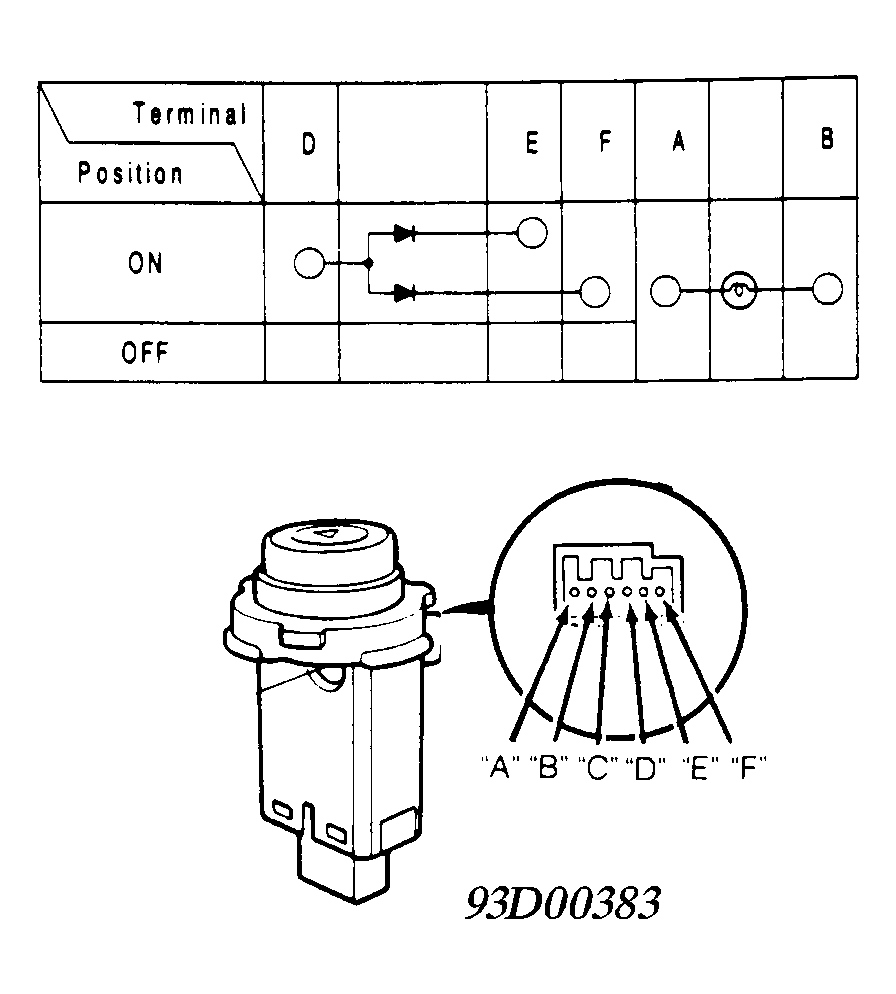

Fig 1: Testing Hazard Warning Switch
G93D00383Courtesy of AMERICAN HONDA MOTOR CO., INC.
