Under-Dash Fuse/Relay Box

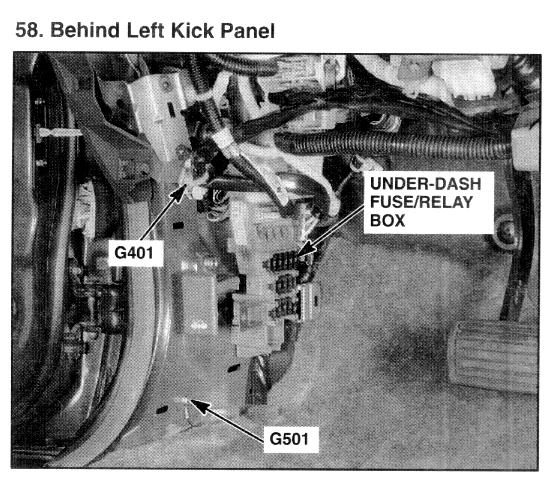

Behind Left Kick Panel

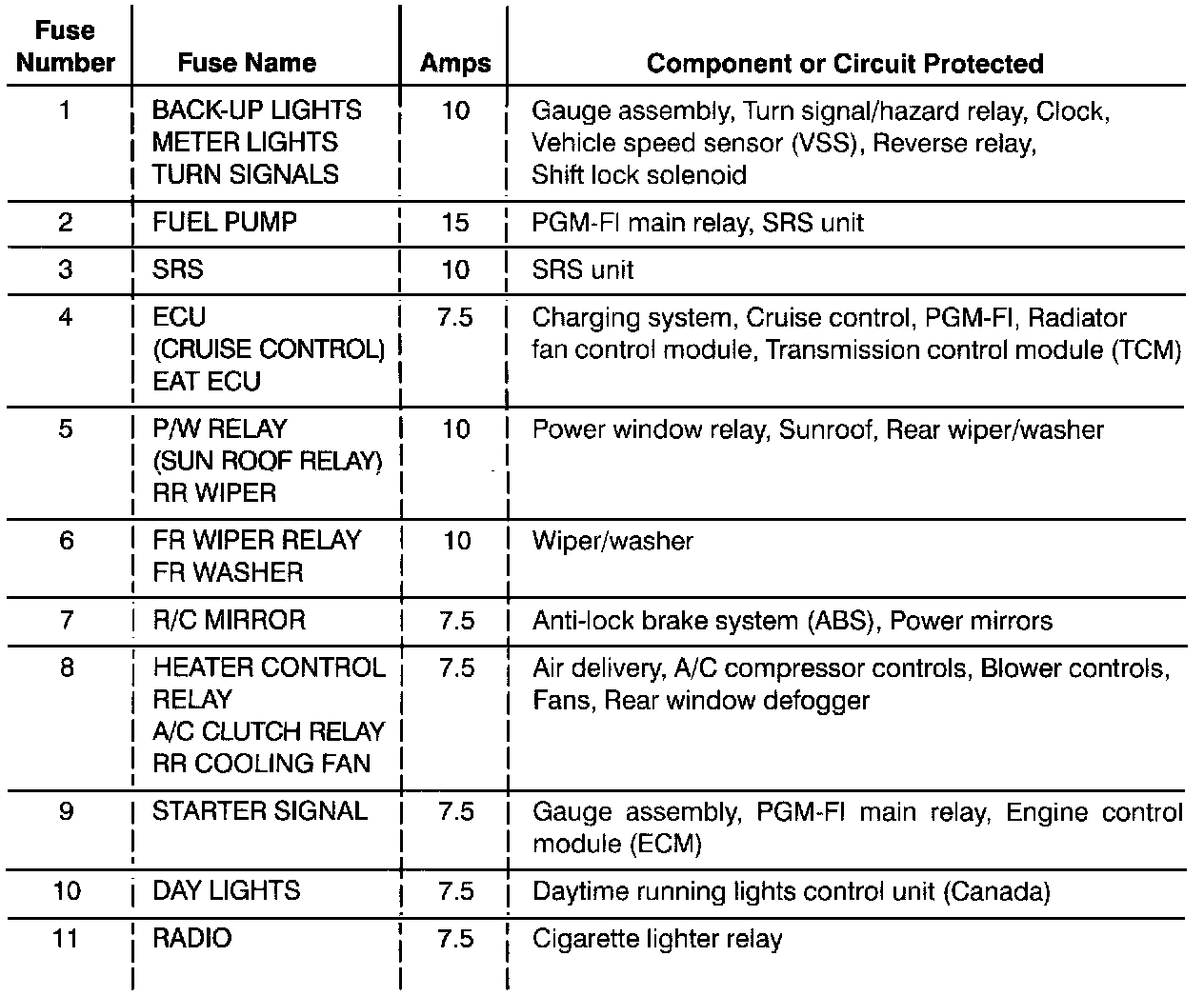

Fuse/Relay Information-Under-dash Fuse/Relay Box (Part 1 Of 2):

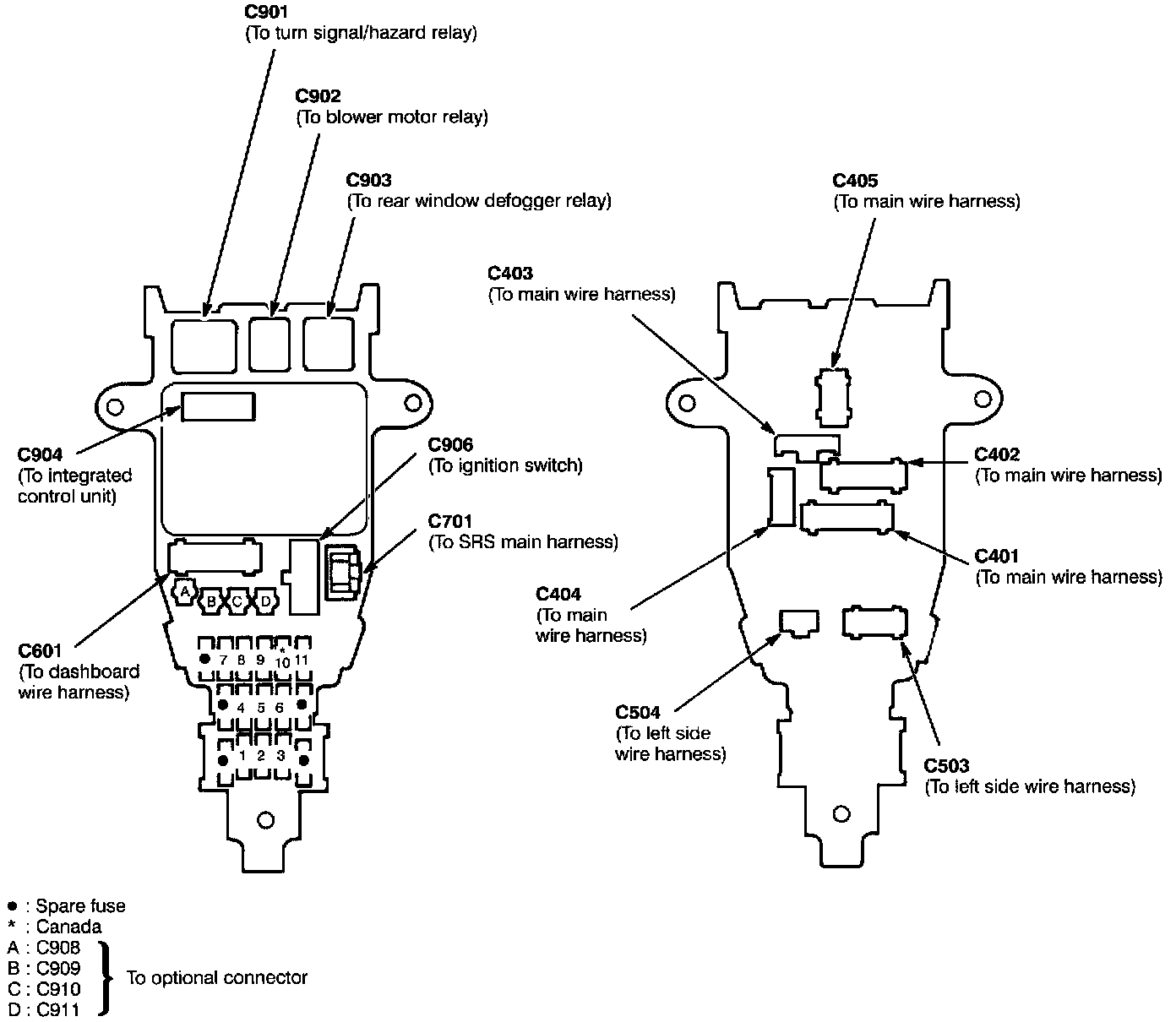

Fuse/Relay Information-Under-dash Fuse/Relay Box (Part 2 Of 2):
