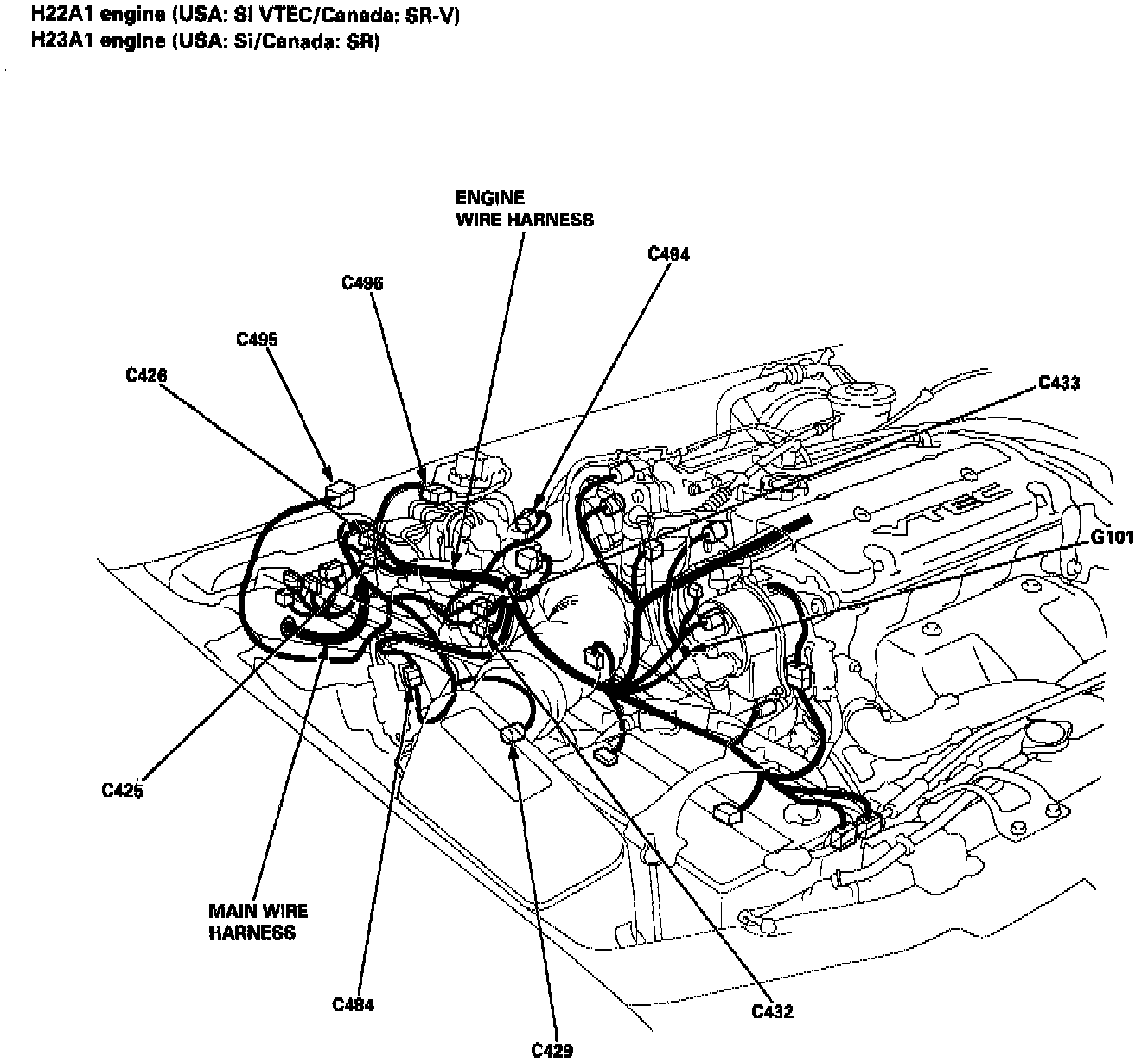

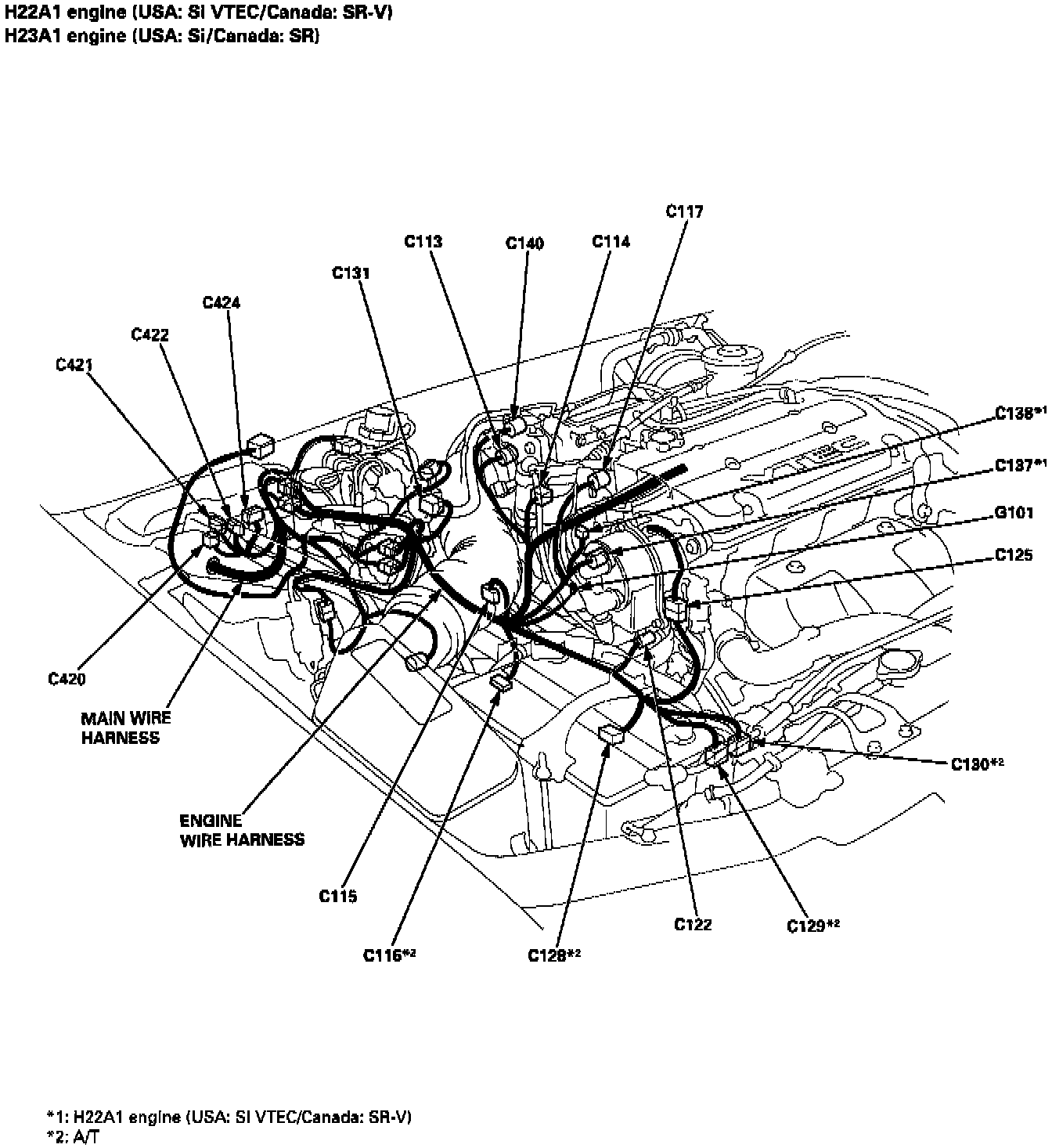

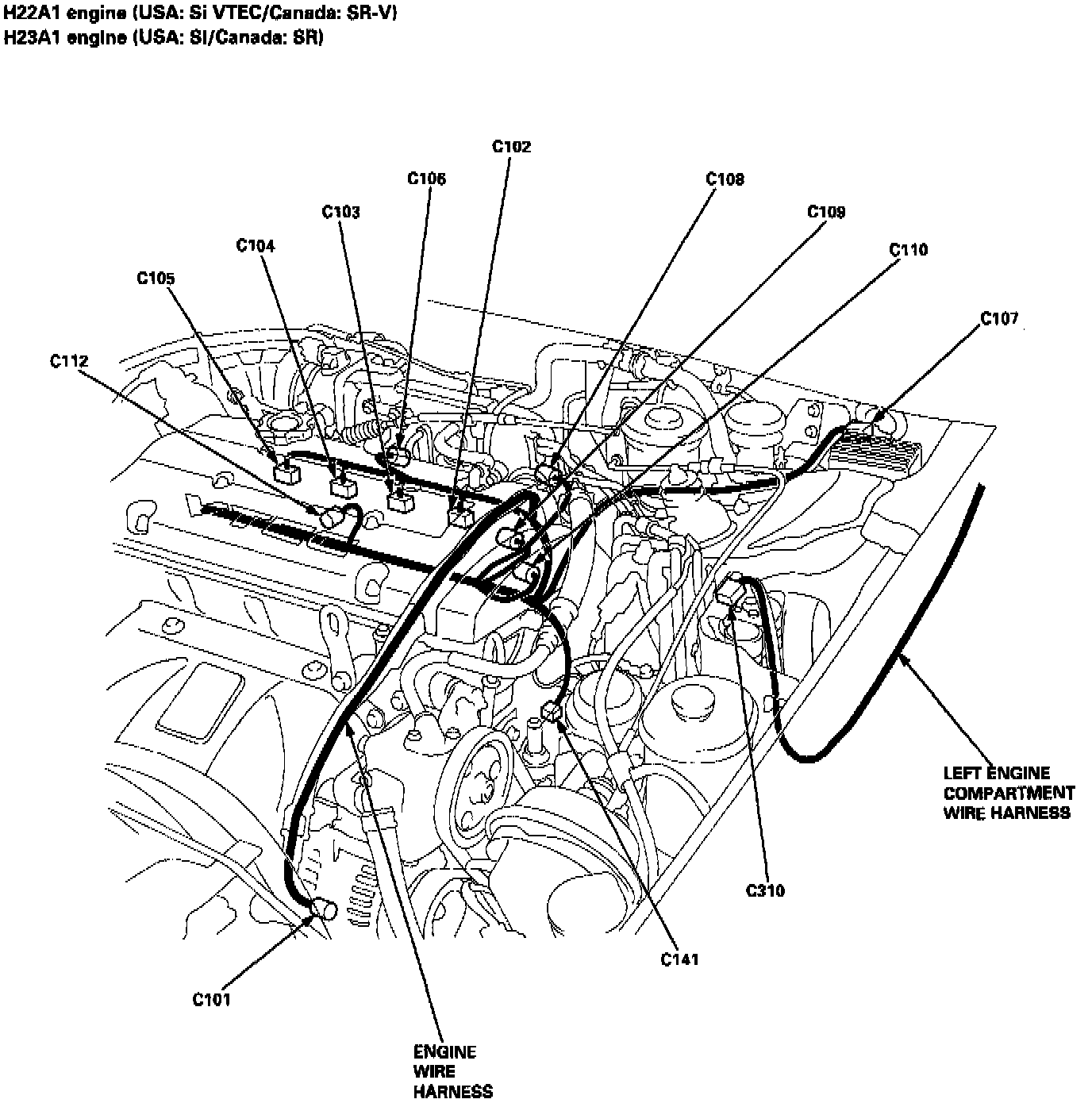

Engine Compartment

*1: H22A1 engine (USA: Si VTEC/Canada: SR-V)
*2: A/T








*1: H22A1 engine (USA: Si VTEC/Canada: SR-V)










NOTE:
- Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).
- Related to Fuel and Emissions System.

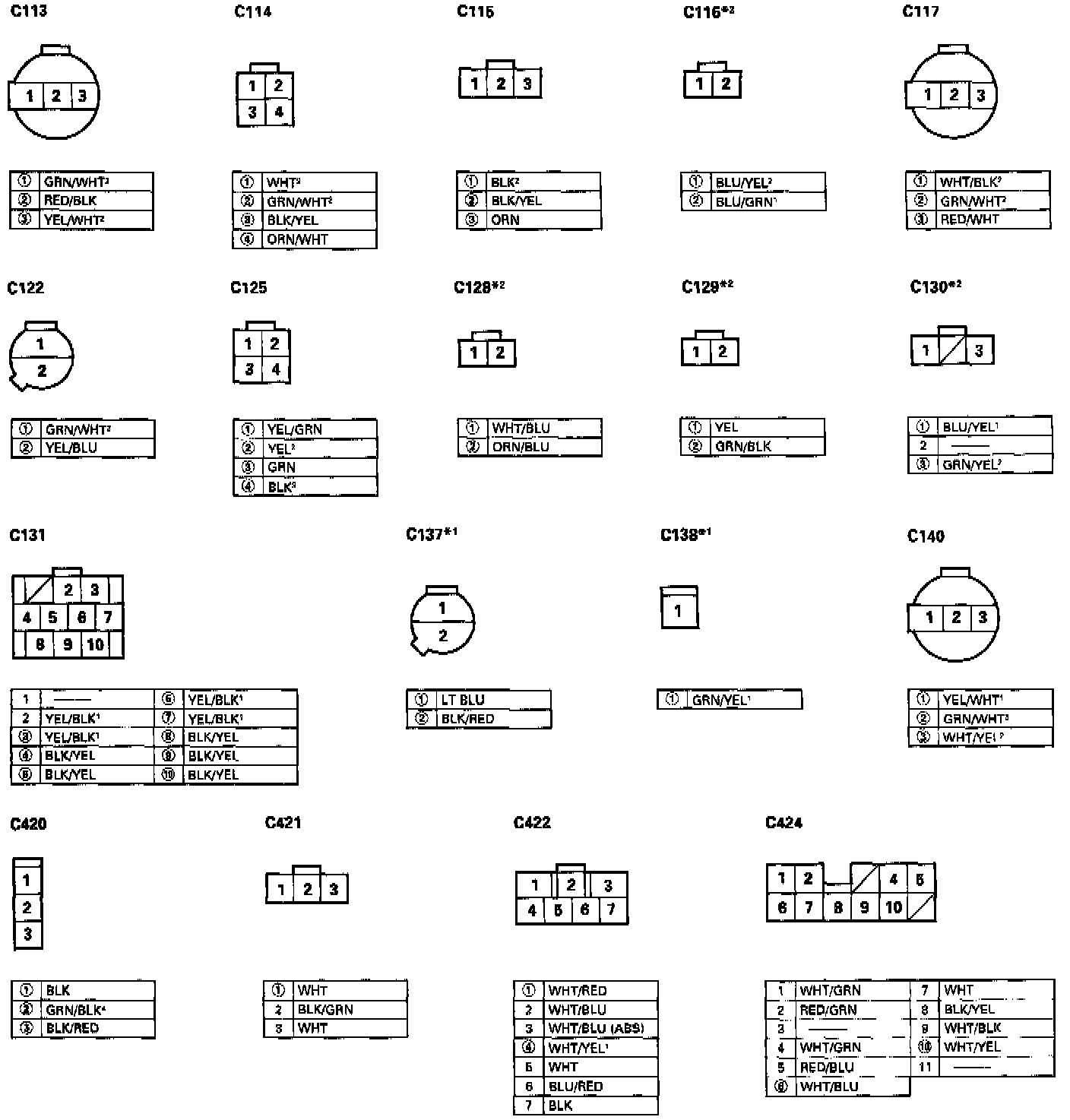

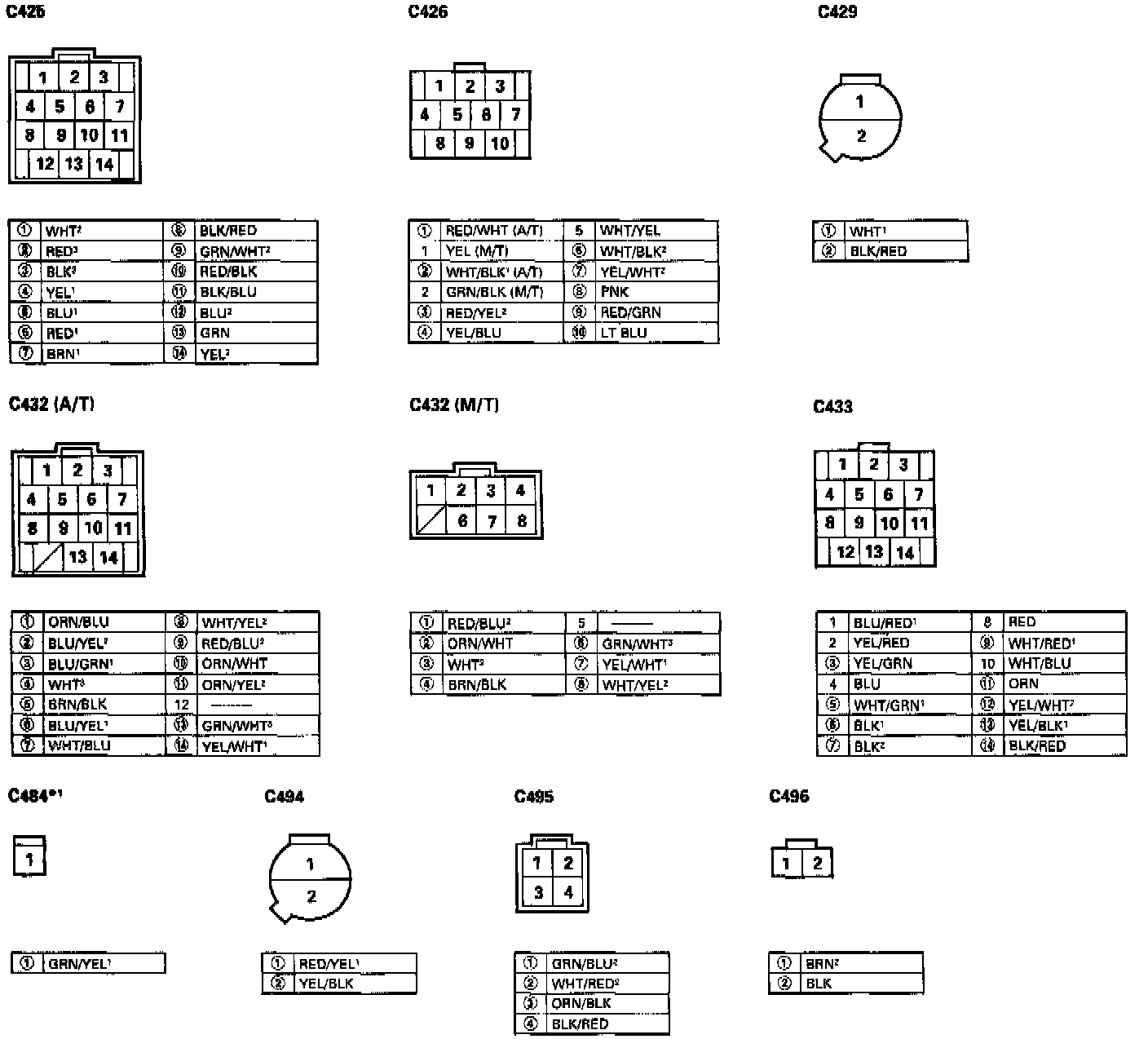

- Connector with male terminals (double outline): View from terminal side
- Connector with female terminals (single outline): View from wire side
