UNDERDASH Fuse Panel Identification: Notes

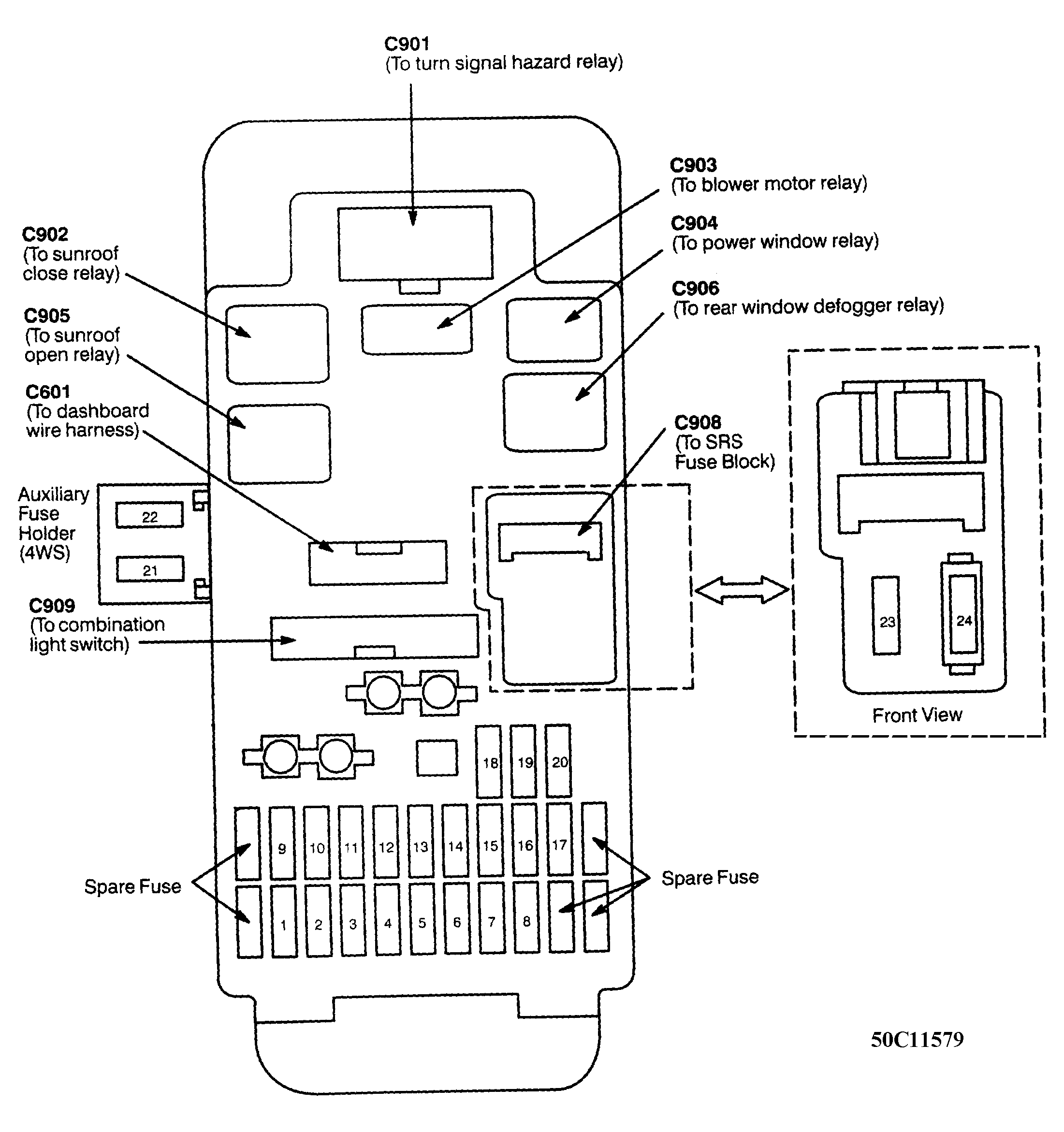

Fig 1: Underdash Fuse Panel Identification
G50C11579Courtesy of AMERICAN HONDA MOTOR CO., INC.
