Toe-In Adjustment
NOTE:
Manufacturer recommends using commercially available computerized 4-wheel alignment equipment. Follow equipment manufacturer instructions to obtain current vehicle alignment settings. Use following procedures for necessary adjustments.

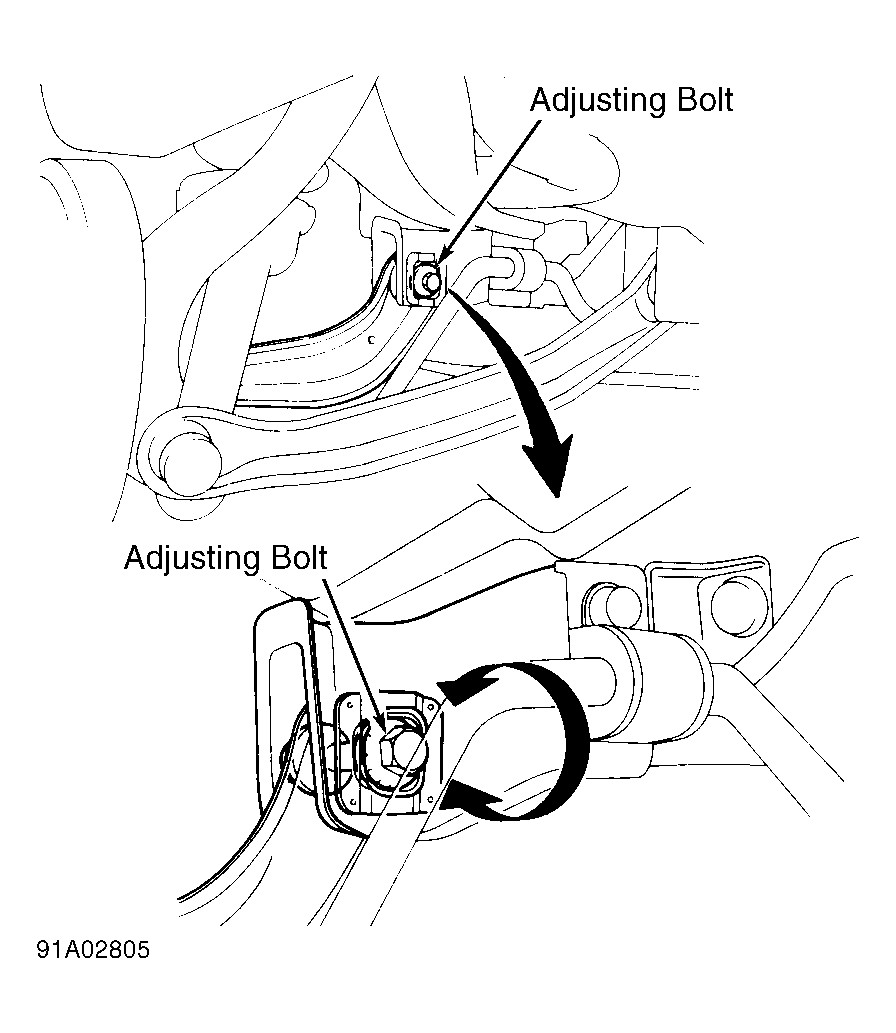

- Check caster and camber. See WHEEL ALIGNMENT SPECIFICATIONS table. Adjust if necessary. Secure steering wheel in straight-ahead position. Ensure parking brake is released. Check rear wheel toe-in. If rear toe-in needs adjustment, hold adjusting bolt on rear lower control arm and loosen lock nut. Adjust rear toe-in by turning adjusting bolt until toe-in is correct. Install NEW lock nut, and tighten it while holding adjusting bolt. See Fig 1 . See TORQUE SPECIFICATIONS .
- Measure front wheel toe-in. See WHEEL ALIGNMENT SPECIFICATIONS table. If adjustment is needed, loosen tie rod lock nuts. Turn both tie rods equally in same direction until front wheels are in straight-ahead position and toe-in reading is correct. Tighten tie rod lock nuts. See TORQUE SPECIFICATIONS . Reposition tie rod boots if they are twisted.
