Pin Voltage

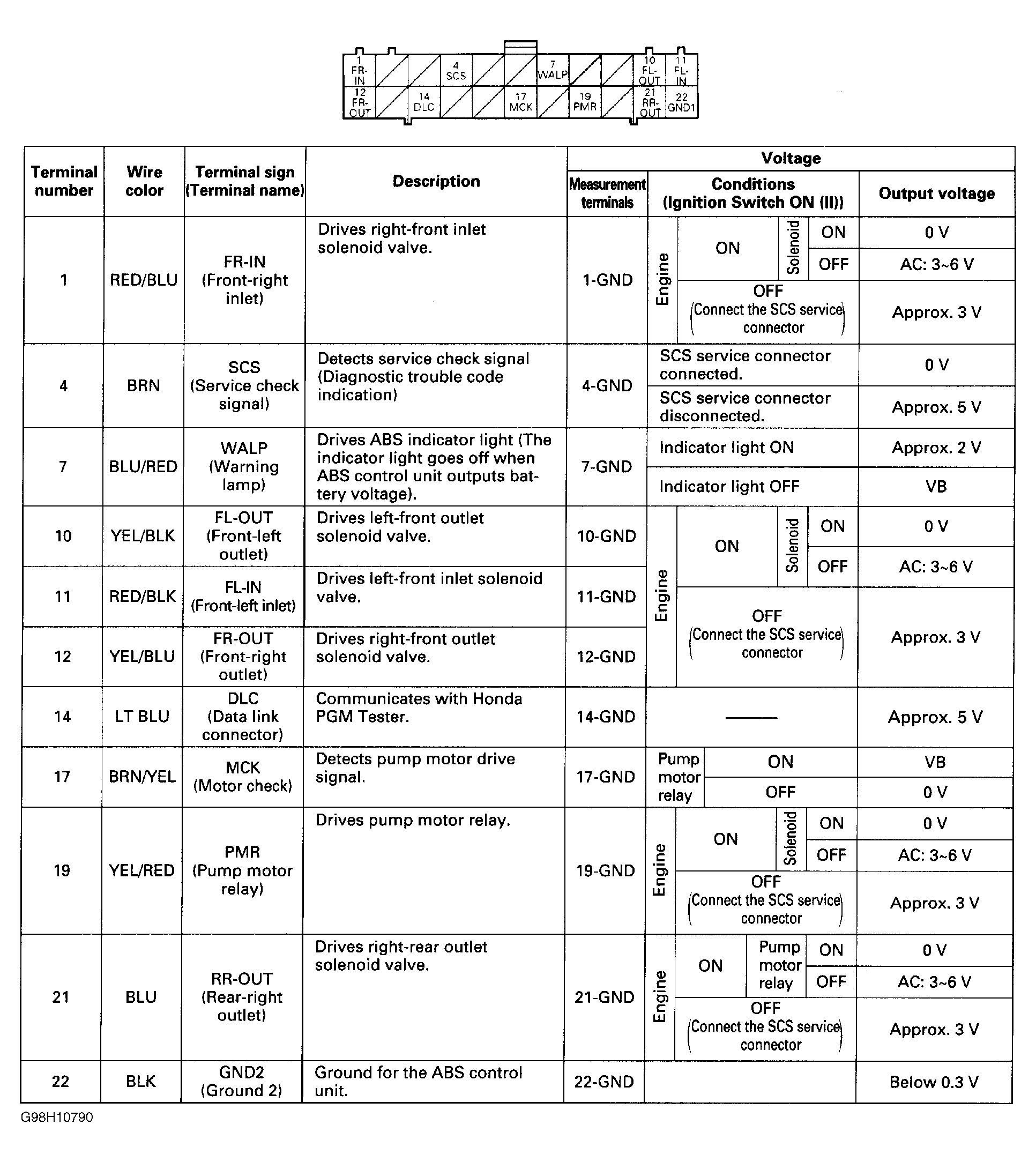

Fig 1: Identifying Orange 22-Pin ABS Control Unit Connector Pin Voltage Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig 2: Identifying Orange 26-Pin ABS Control Unit Connector Pin Voltage Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
