Removal & Installation

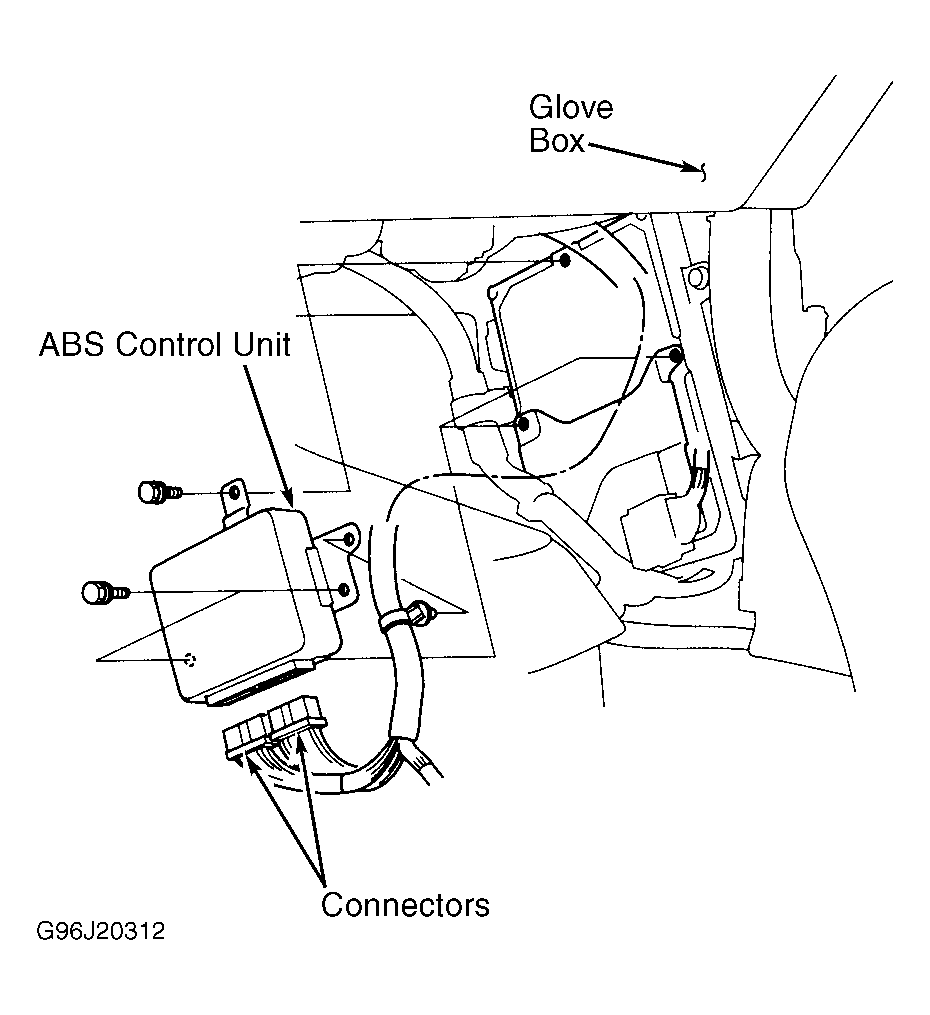

Remove right kick panel. Disconnect electrical connectors. Remove ABS control unit bolts, and remove control unit. See Figure , Figure or Fig 1 . To install, reverse removal procedure. Turn ignition on and observe ABS warning light. ABS system is okay if ABS warning light goes out after engine is started.
