Pin Voltage

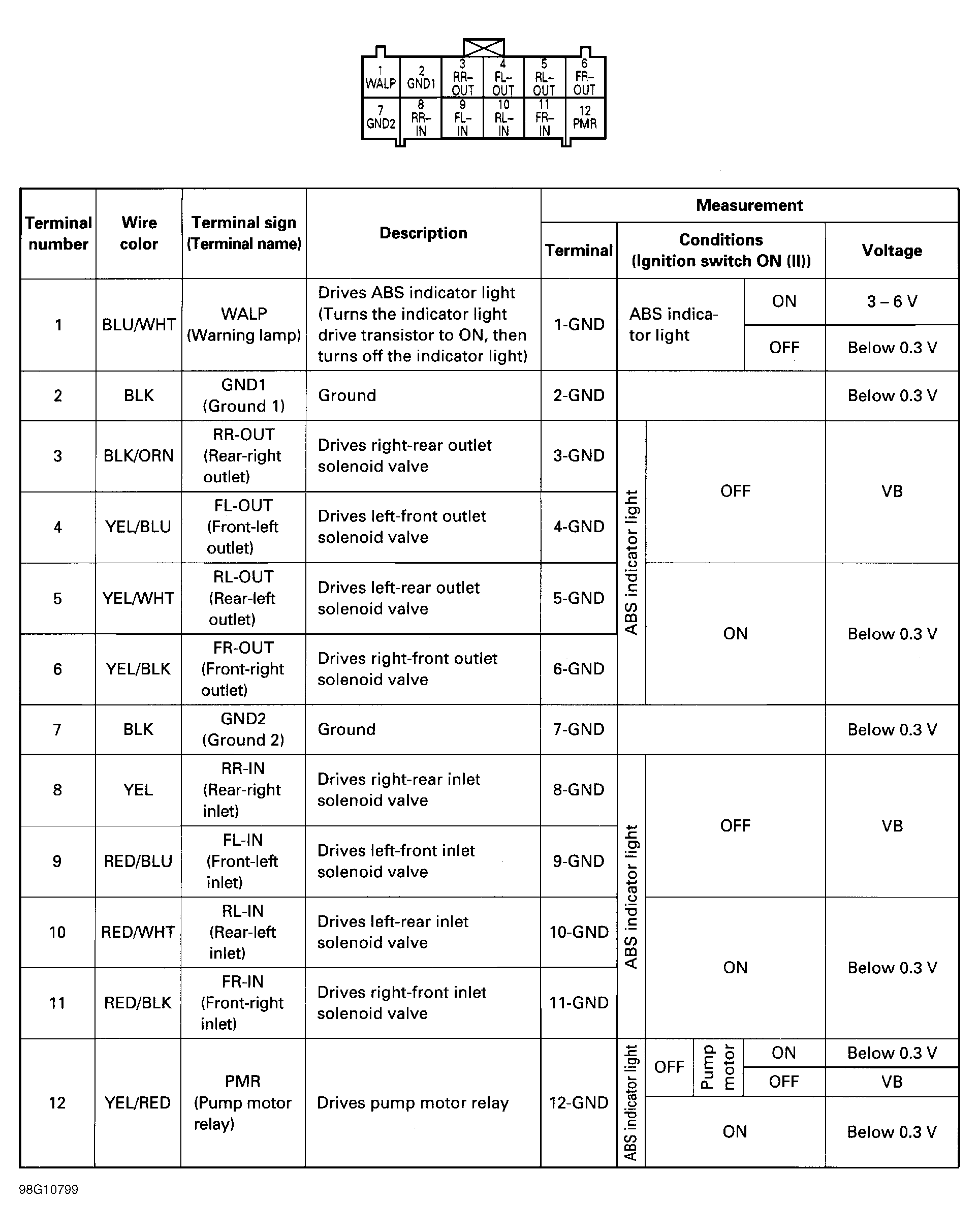

Fig 1: Identifying Orange 12-Pin ABS Control Unit Connector Pin Voltage Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

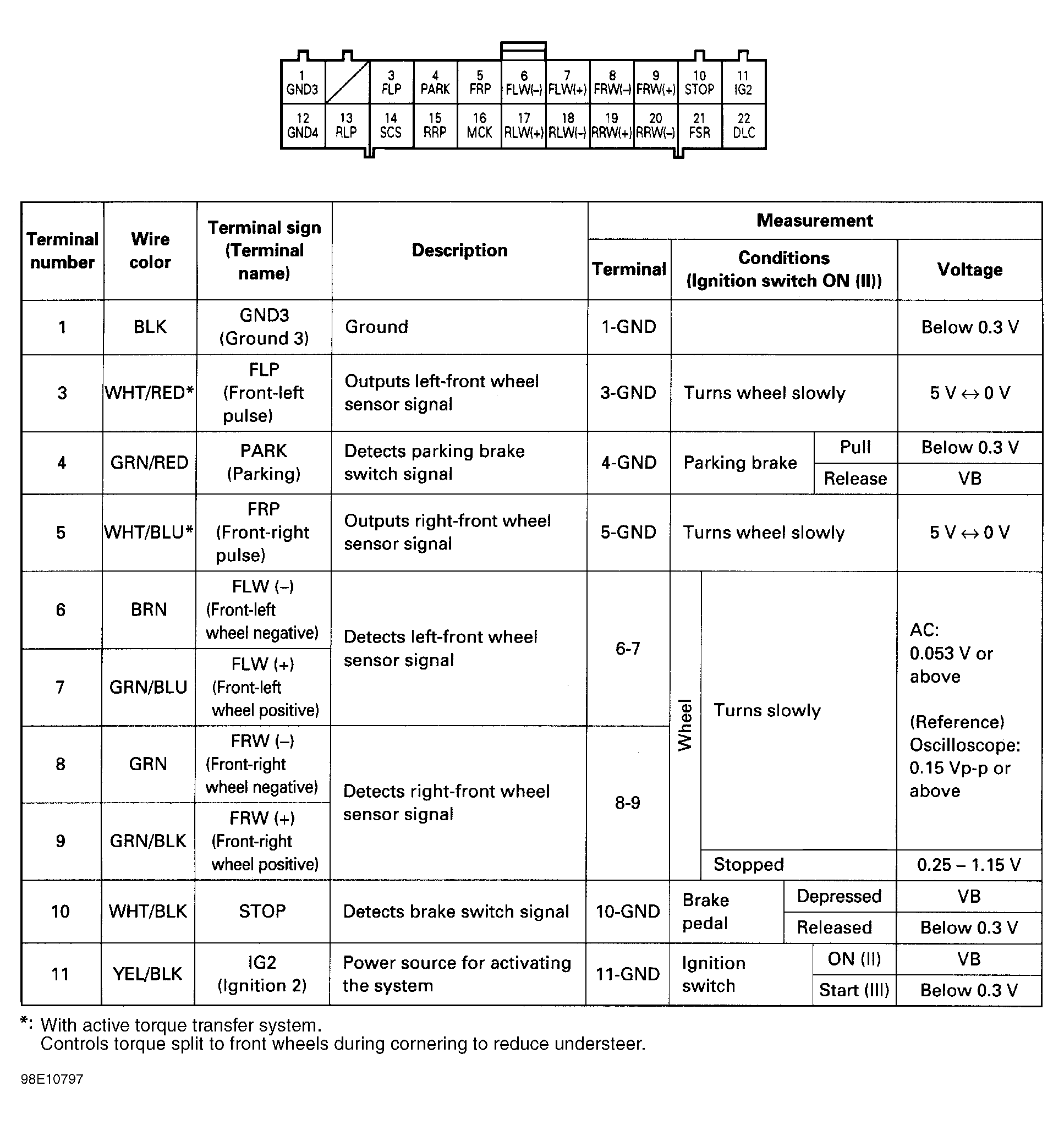

Fig 2: Identifying Orange 22-Pin ABS Control Unit Connector Pin Voltage Chart (Part 1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig 3: Identifying Orange 22-Pin ABS Control Unit Connector Pin Voltage Chart (Part 2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
