Door Control Unit Input Test

Remove driver's door trim panel. Disconnect 20-pin harness connector. Inspect connector terminals for damage or corrosion. Repair or replace as necessary. Using a DVOM, perform driver's control unit input test. See Fig 1 or Fig 2 . If all input tests are okay, replace door multiplex control unit.

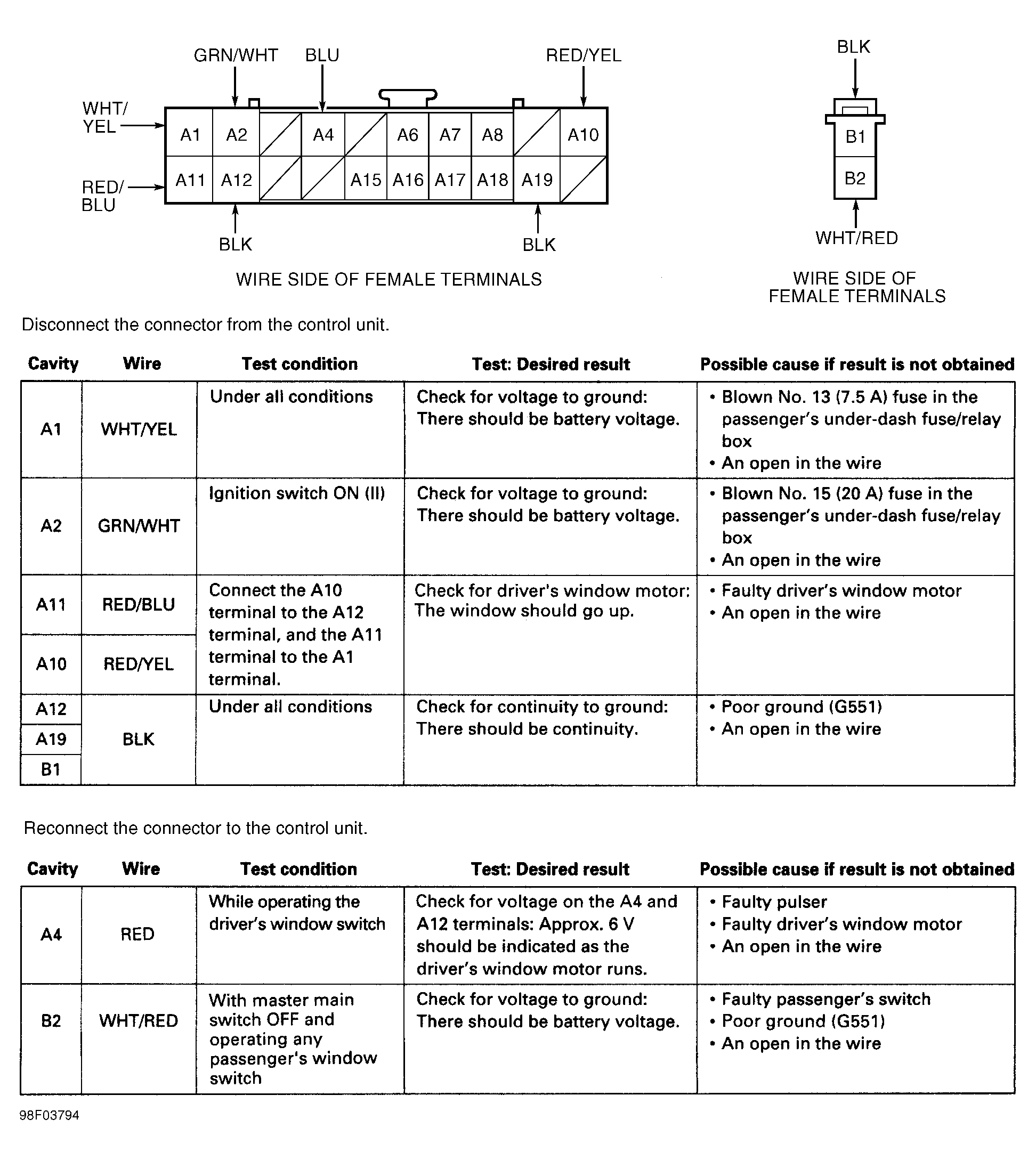

Fig 1: Door Multiplex Control Unit Input Test (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Door Multiplex Control Unit Input Test (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
