Engine Compartment

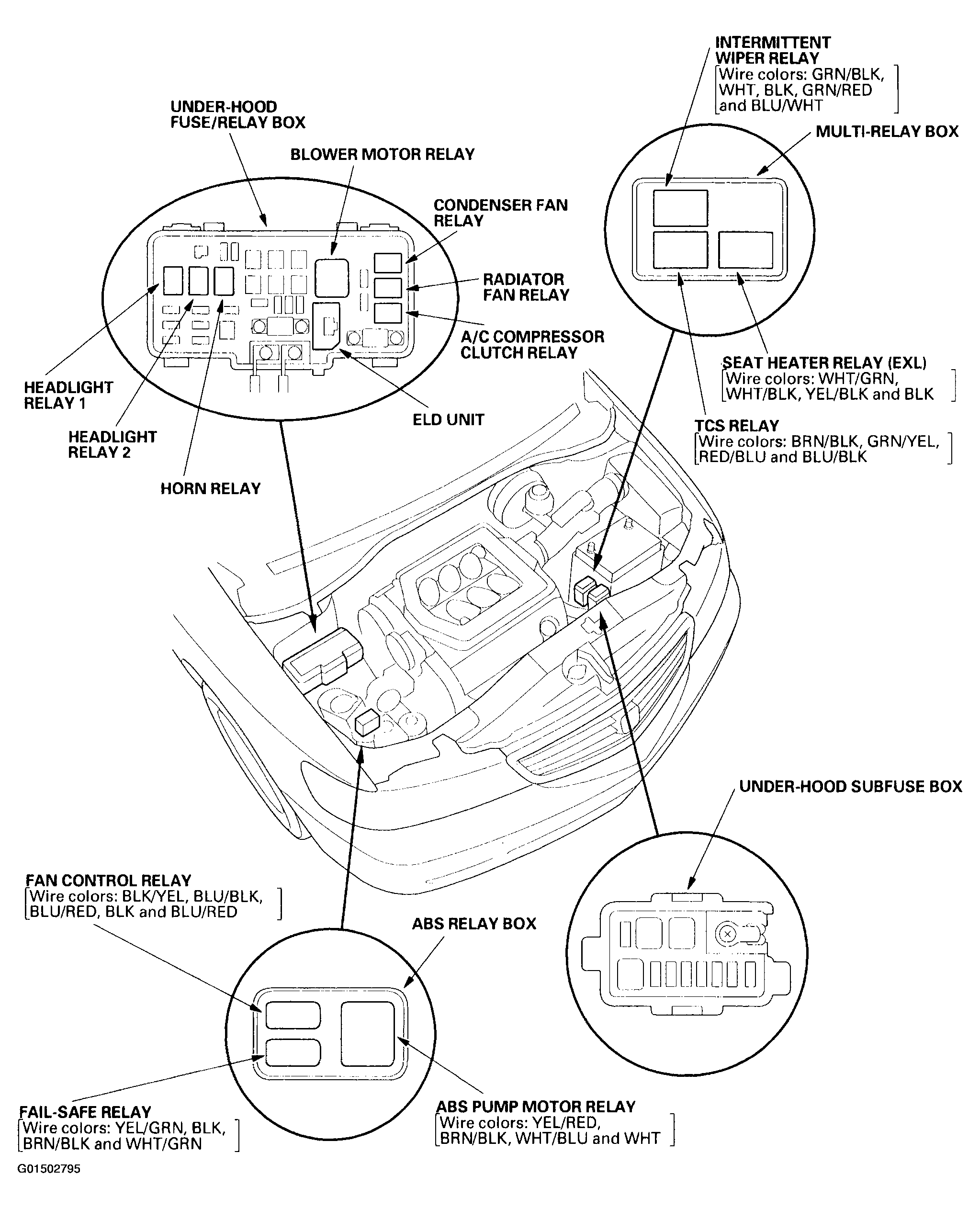

Fig 1: Identifying Engine Compartment Relay & Control Unit Harnesses (1999-2002 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Engine Compartment Relay & Control Unit Harnesses (2003-04 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
