DTC B1825: Power Seat Slide Motor Pulse Error

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  • DTC B1825 is, even when the system is OK, stored if the slide switch is operated for more than one second after the seat reaches its forward or rear limit.
  1. Turn the ignition switch OFF, and then back ON (II).
  2. Clear the DTCs with the HDS.
  3. Operate the power seat adjustment switch in all directions for more than 2 seconds.
  4. Check for DTCs with the HDS.

    Is DTC B1825 indicated?

    1. YES  - Go to step 5.
    2. NO  - Intermittent failure. The slide position sensor is OK at this time. Check for loose or poor connections at the power seat control unit connector.
  5. Check for DTCs with the HDS.

    Is DTC B1836 also indicated?

    1. YES  - Go to DTC B1836 troubleshooting (see DTC B1836: POWER SEAT POSITION SENSOR CIRCUIT SHORT  ).
    2. NO  - Go to step 6.
  6. Check for DTCs with the HDS.

    Are DTCs B1826, B1827, and/or B1828 also indicated?

    1. YES  - Go to step  16.
    2. NO  - Go to step 7.
  7. Operate the slide switch for 2 seconds and check the slide motor operation.

    Does the slide motor run smoothly?

    1. YES  - Go to step 8.
    2. NO  - Go to step  17.
  8. Turn the ignition switch OFF.
  9. Disconnect the power seat control unit connector A (40P).
  10. Disconnect the slide position sensor 3P connector.
  11. Check for continuity between the power seat control unit connector A (40P) No. 11 and No. 29 terminals and slide position sensor 3P connector No. 1 and No. 2 terminals.

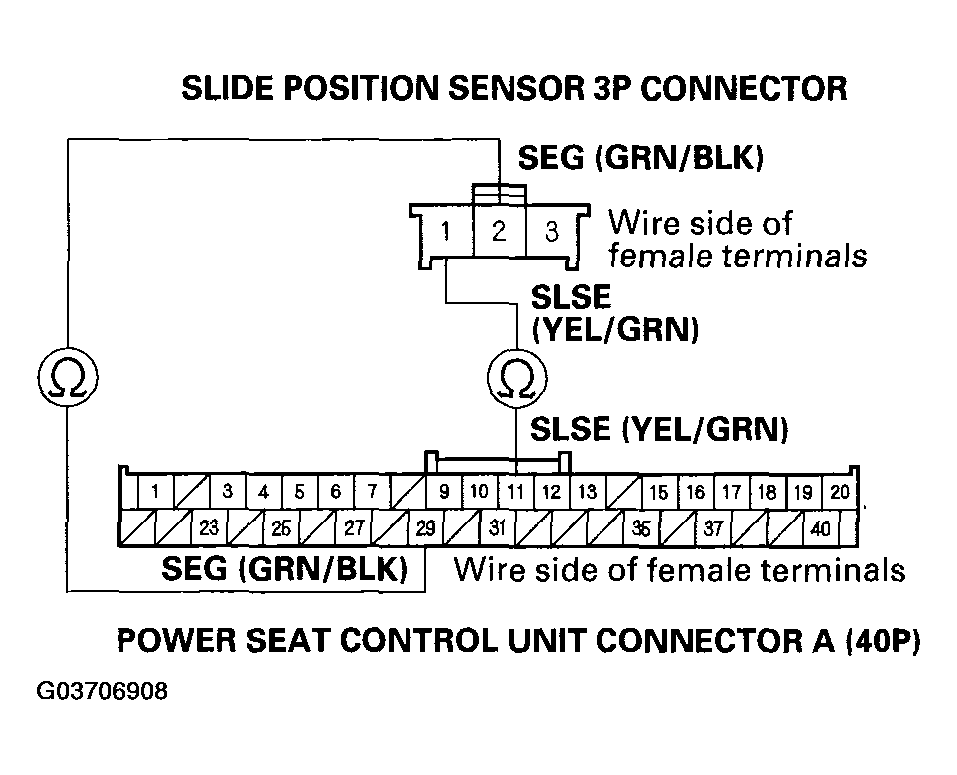

    Fig 1: Checking Continuity Between Power Seat Control Unit Connector A Terminals 11 & 29 And 3P Connector Terminals 1 & 2
    G03706908Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  - Go to step 12.
    2. NO  - Repair an open in the wire.
  12. Check for continuity between the power seat control unit connector A (40P) No. 11 terminal and body ground.

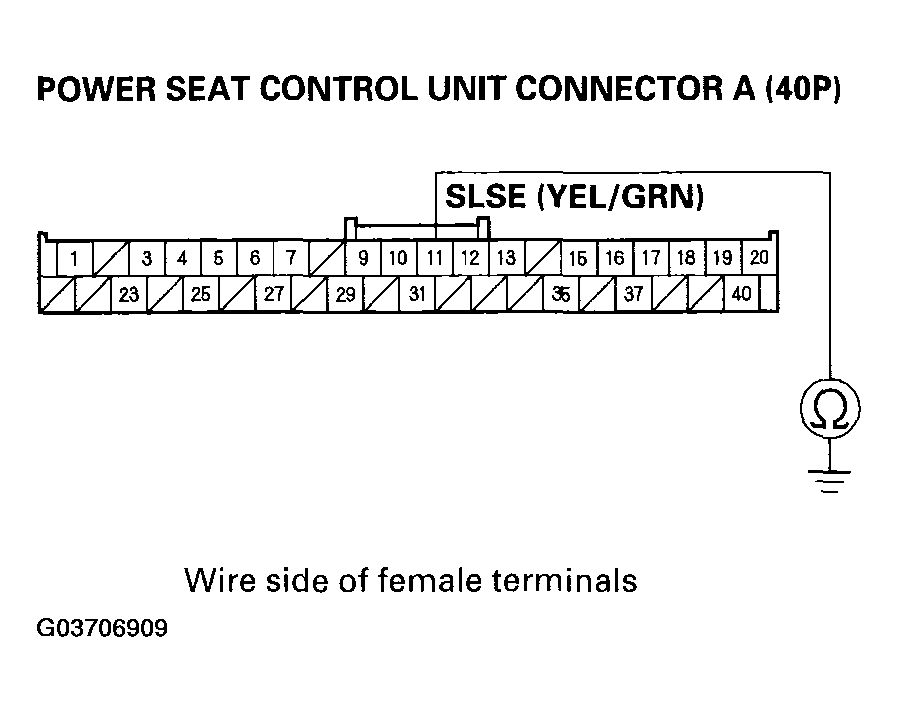

    Fig 2: Checking Continuity Between Power Seat Control Unit Connector A Terminal 11 And Body Ground
    G03706909Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  - Repair a short in the wire.
    2. NO  - Go to step 13.
  13. Reconnect the power seat control unit connector A (40P).
  14. Turn the ignition switch ON (II).
  15. Measure voltage between the slide position sensor 3P connector No. 3 and No. 2 terminals.

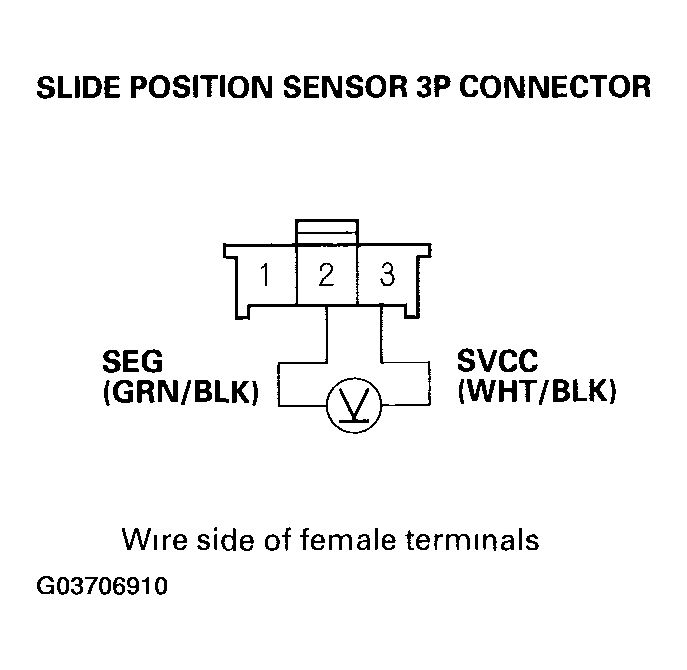

    Fig 3: Measuring Voltage Between Slide Position Sensor 3P Connector Terminals 3 And 2
    G03706910Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 10 V?

    1. YES  - Faulty slide position sensor, replace the slide motor assembly.
    2. NO  - Check for an open in the WHT/BLK wire. If it is OK, substitute a known-good power seat control unit. If the problem is repaired, replace the power seat control unit.
  16. Measure voltage between the power seat control unit connector A (40P) No. 15 and No. 29 terminals.

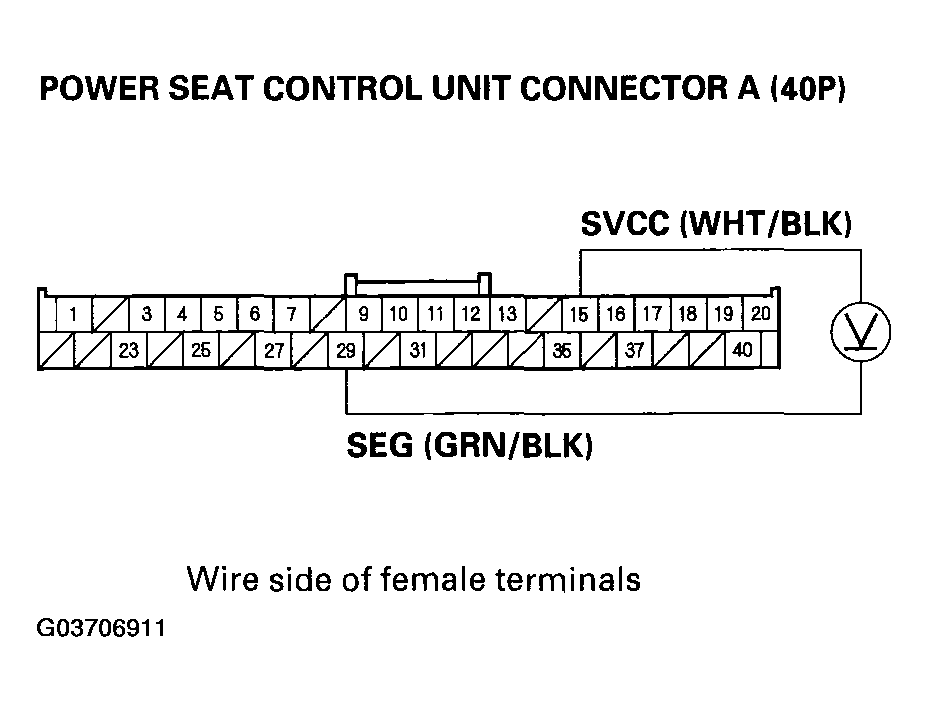

    Fig 4: Measuring Voltage Between Power Seat Control Unit Connector A Terminals 15 And 29
    G03706911Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 10 V when the slide switch is operated?

    1. YES  - Faulty slide position sensor, replace the slide motor assembly.
    2. NO  - Replace the power seat control unit.
  17. Turn the ignition switch OFF.
  18. Disconnect the power seat control unit connector B (18P).
  19. Disconnect the slide motor 2P connector.
  20. Check for continuity between the power seat control unit connector B (18P) No. 7 and 17 terminals and slide motor 2P connector No. 1 and No. 2 terminals.

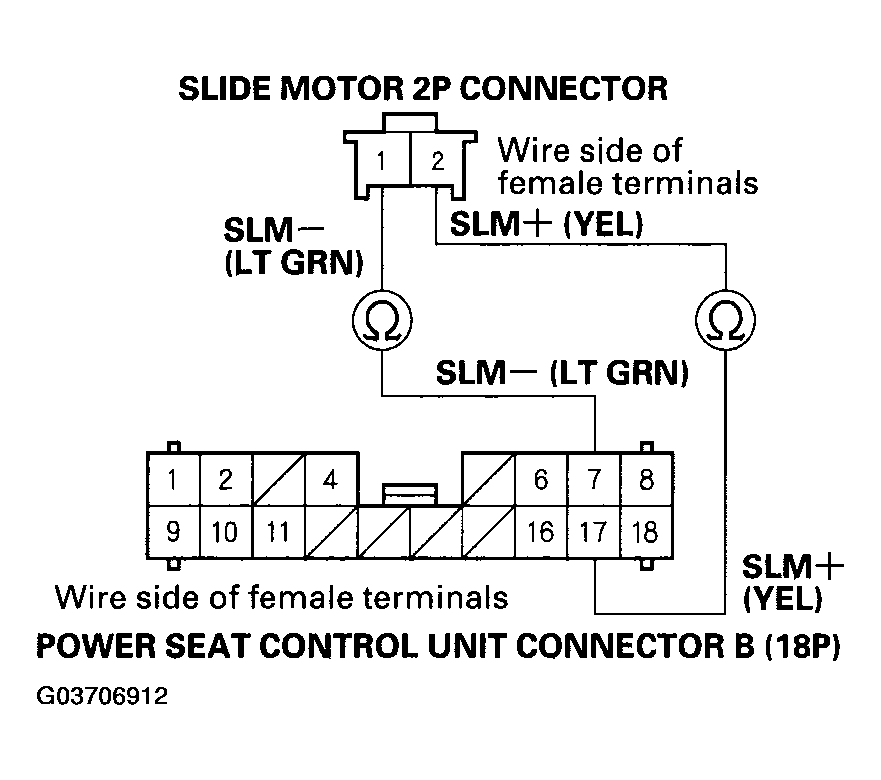

    Fig 5: Checking Continuity Between Power Seat Control Unit Connector B (18P) Terminals 7 & 17 And Slide Motor 2P Connector Terminals 1 & 2
    G03706912Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  - Go to step 21.
    2. NO  - Repair an open in the wire.
  21. Check for continuity between the slide motor 2P connector No. 1 and No. 2 terminals and body ground.

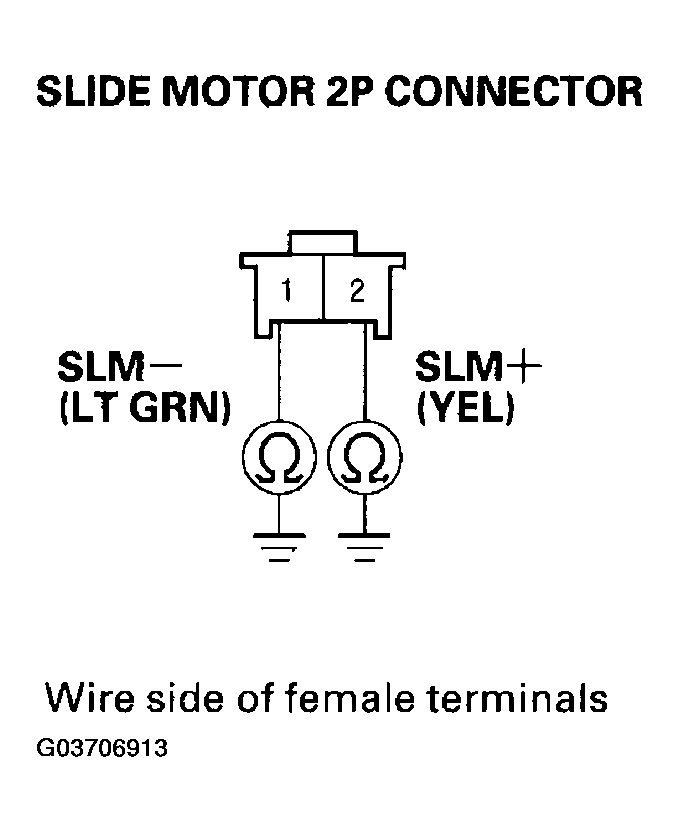

    Fig 6: Checking Continuity Between Slide Motor 2P Connector Terminals 1 & 2 And Body Ground
    G03706913Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  - Repair a short in the wire.
    2. NO  - Go to step 22.
  22. Perform the slide motor test (see DRIVER'S POWER SEAT MOTOR TEST ).

    Is the motor OK?

    1. YES  - Replace the power seat control unit.
    2. NO  - Replace the slide motor.
