Air Bag Control Module

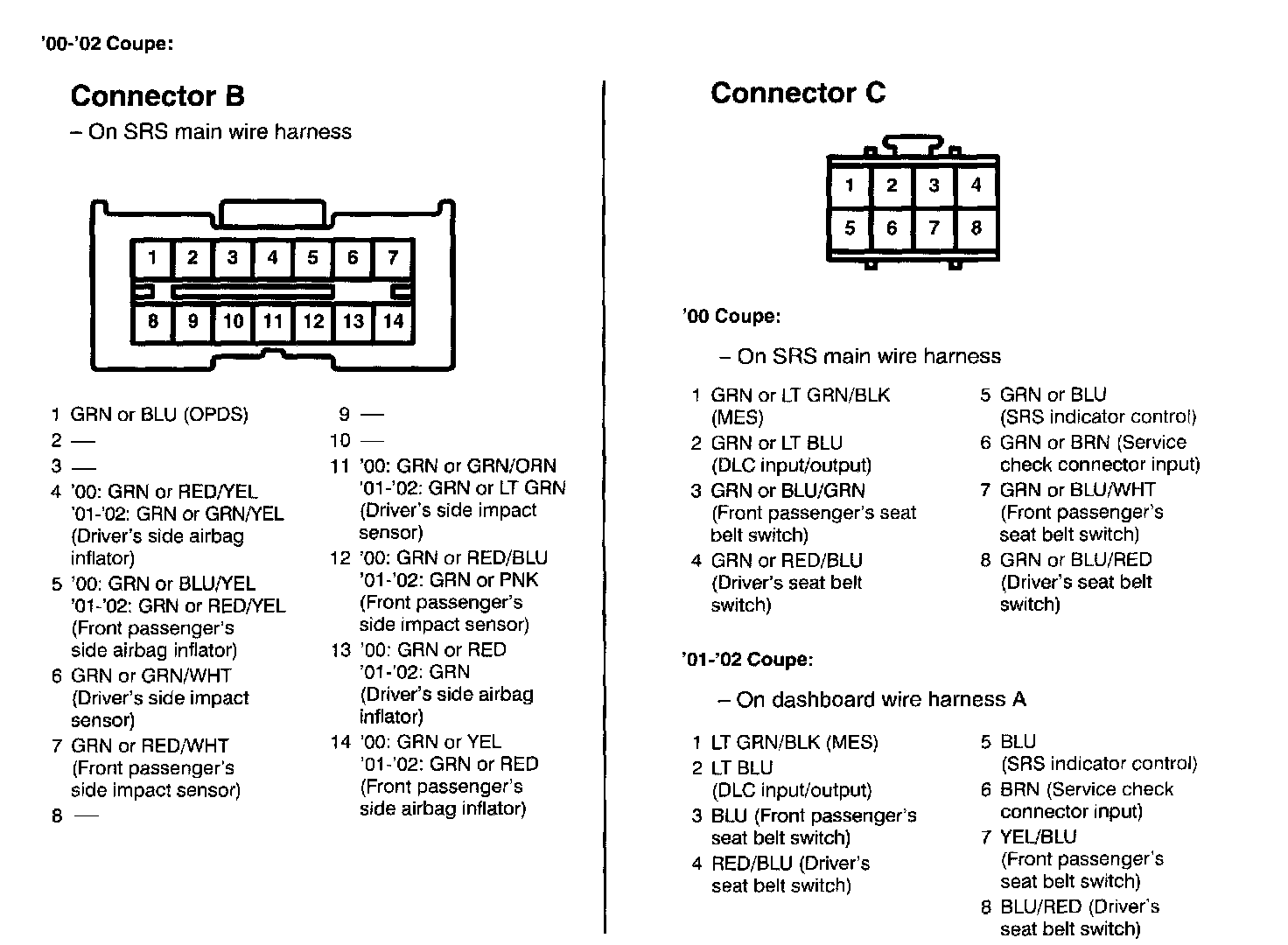

64. SRS Unit Connectors:

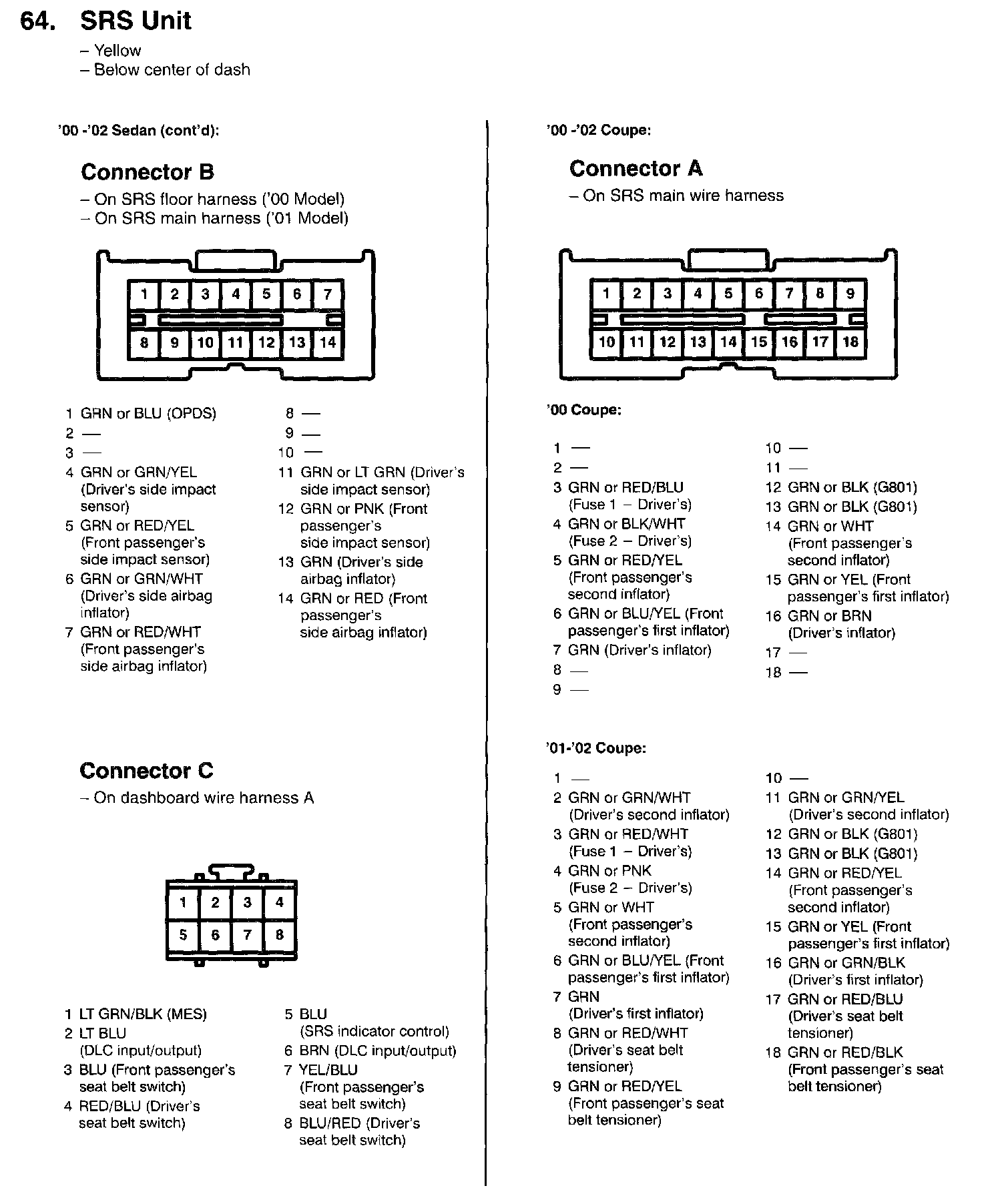

64. SRS Unit Connectors:

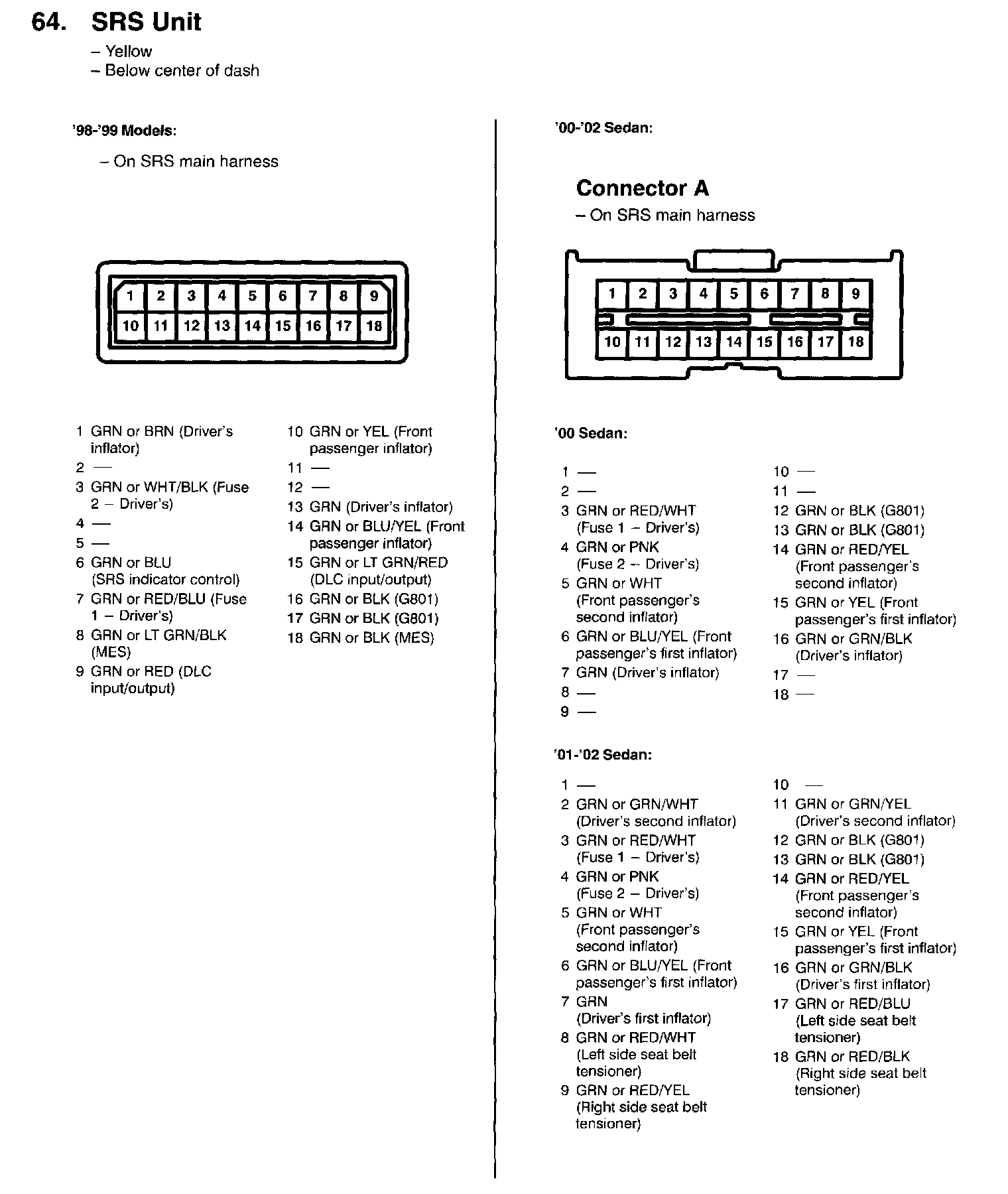

64. SRS Unit Connectors:

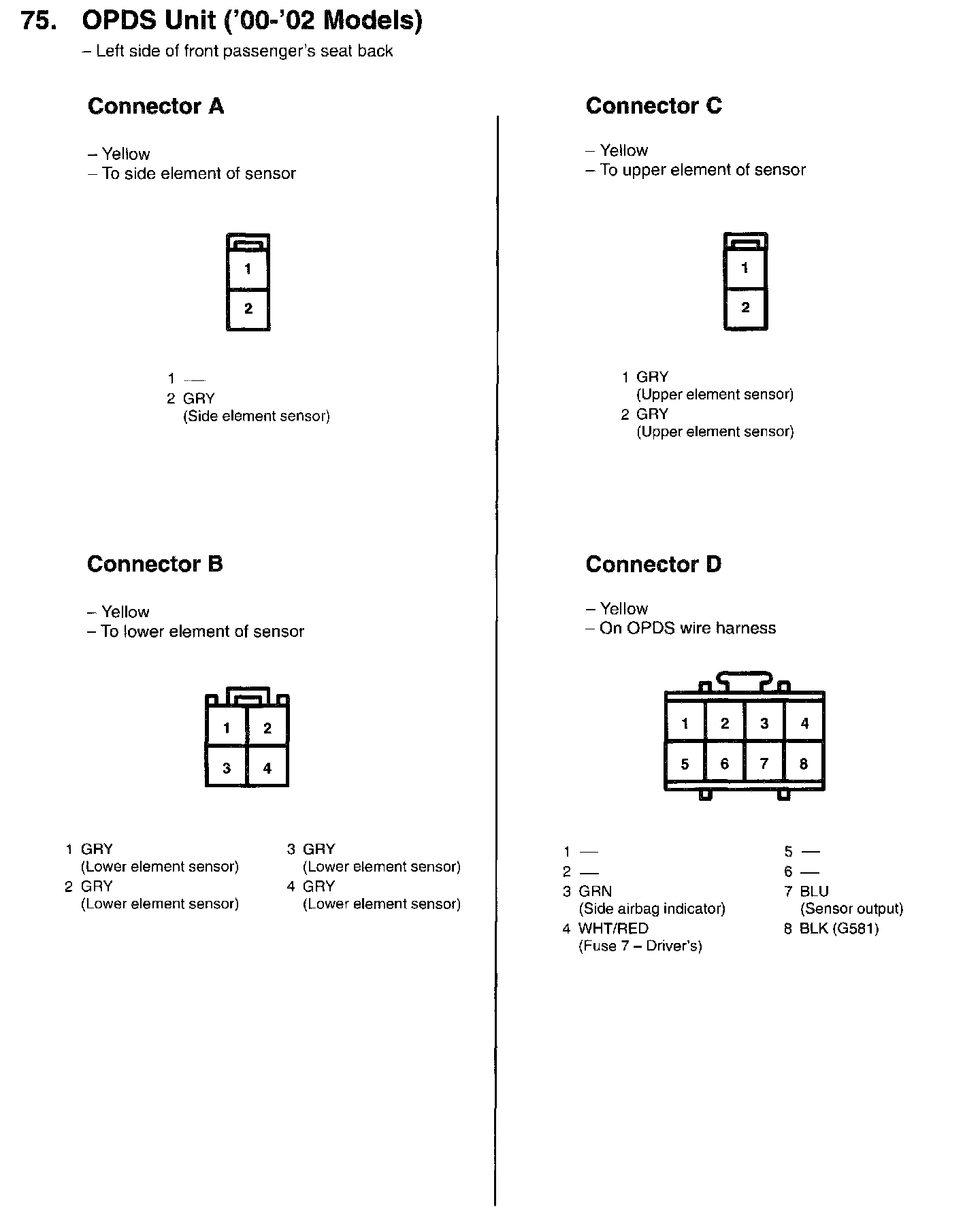

75. OPDS Unit Connectors:
