Electronic Climate Control Panel
Climate Control UnitRemoval and Installation
1. Remove the center panel together with the climate control unit.
2. Remove the self-tapping screws and the climate control unit (A) from the center panel (B).
3. Install the control unit in the reverse order of removal. After installation, operate the control unit controls to see whether it works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
Climate Control Unit Disassembly and Reassembly

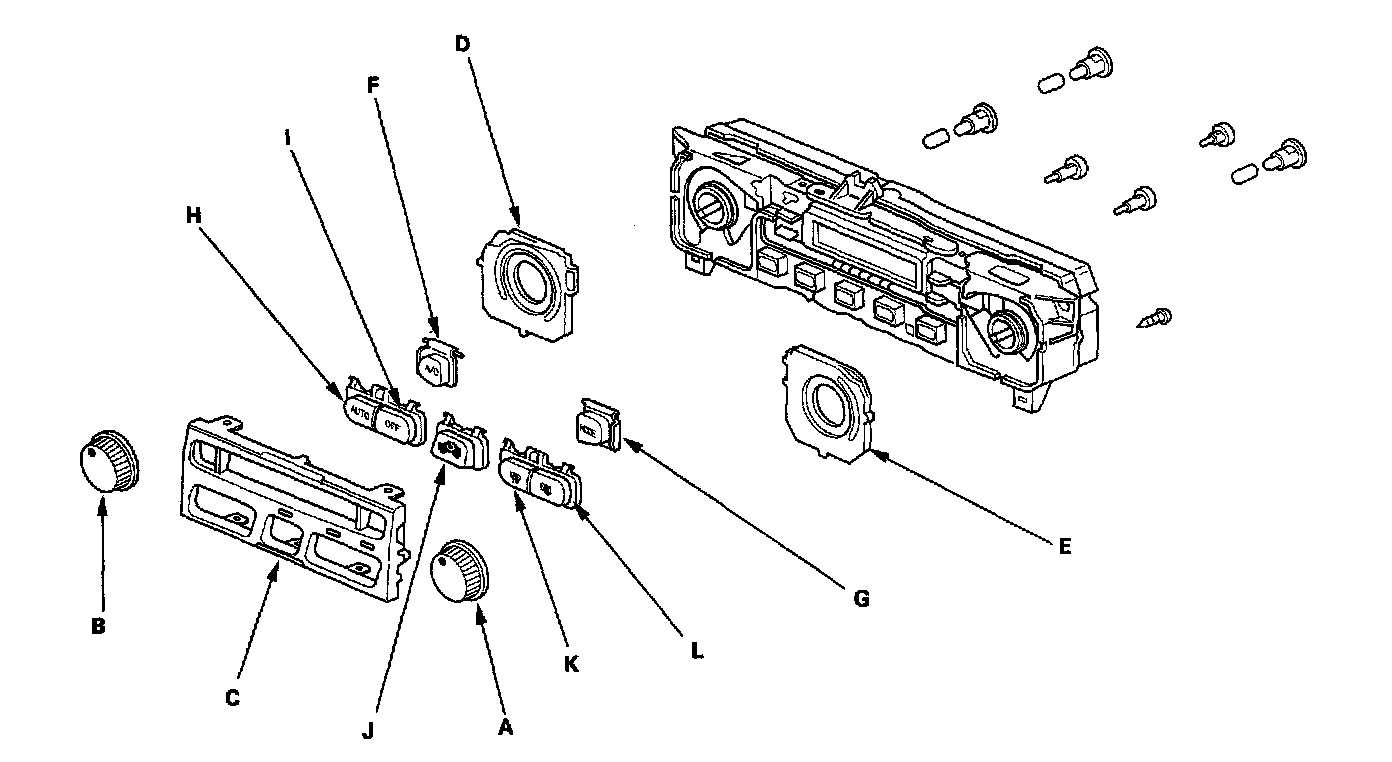

1. Remove the fan switch (A) and temperature control (B) dials, then remove the front (C), temperature control (D) and fan switch (E) panels. Remove A/C switch (F), MODE control switch (G), AUTO switch (H), OFF switch (I), recirculation control switch (J), front defroster switch (K) and rear defogger switch (L) buttons.
2. Reassemble the control unit in the reverse order of removal.
