Connector Views

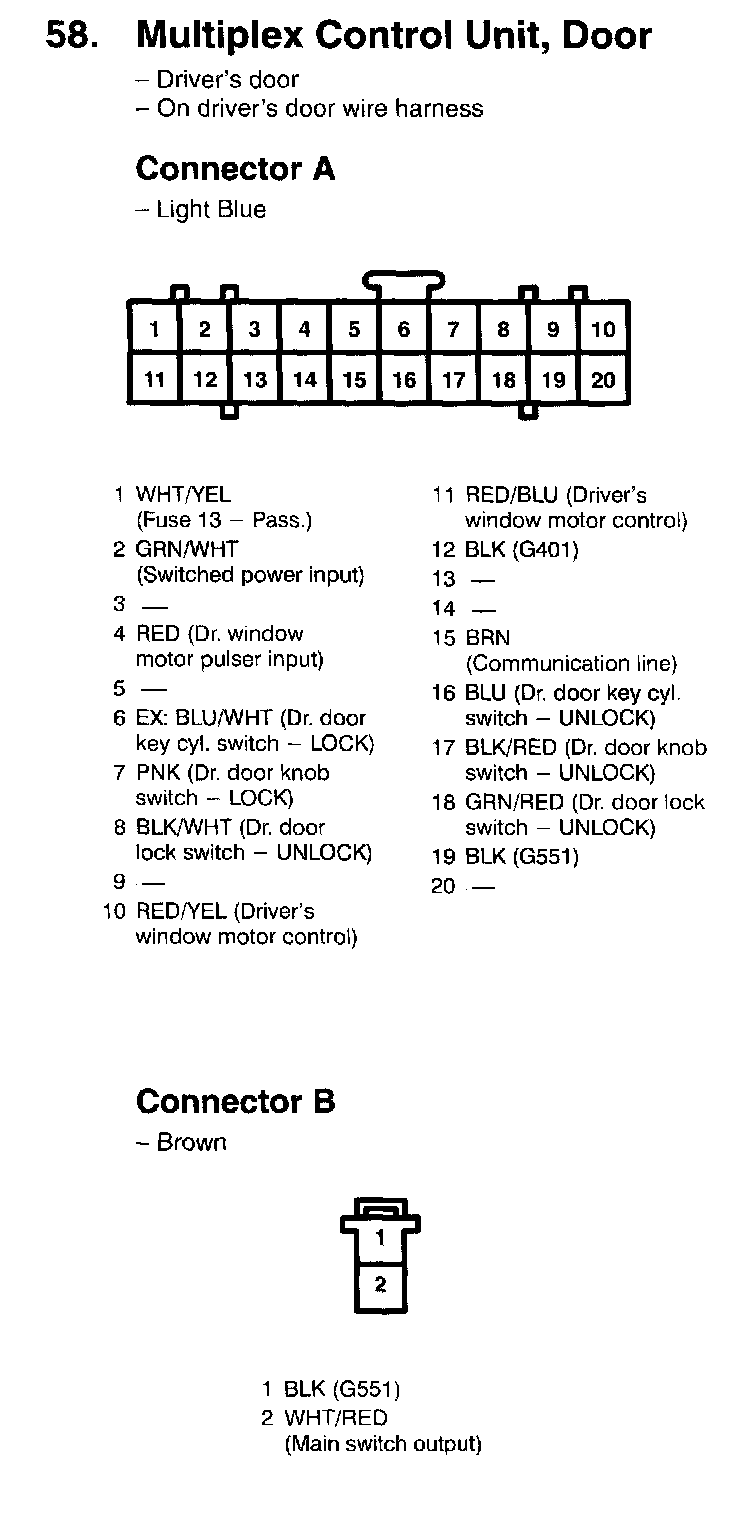

58. Multiplex Control Unit, Door Connectors A, B:

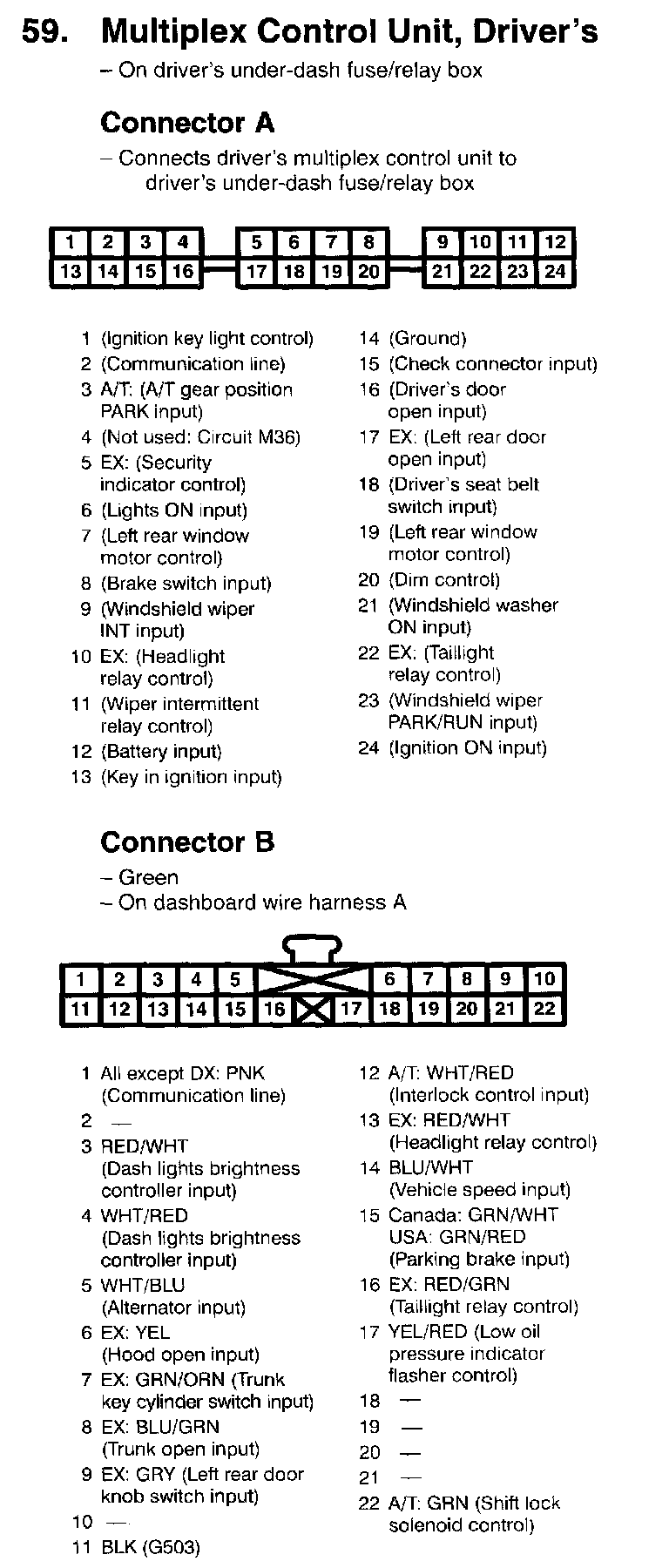

59. Multiplex Control Unit, Driver's Connectors A, B:

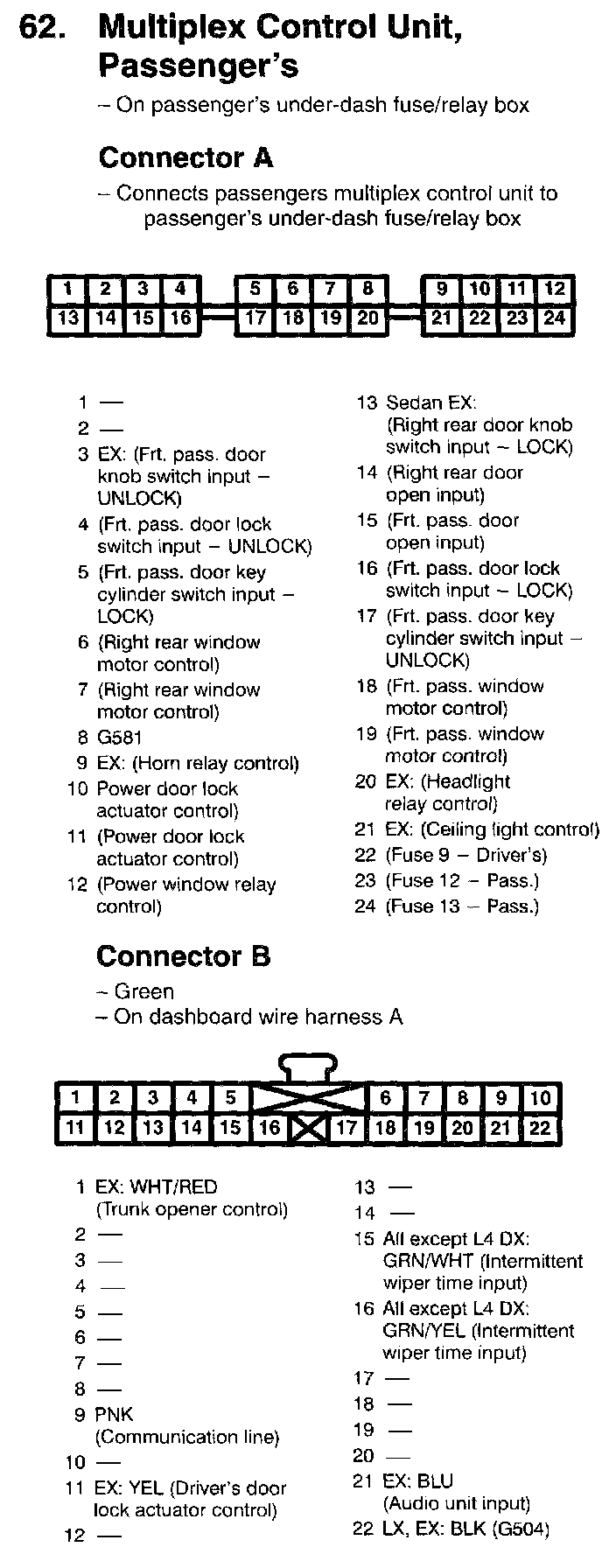

62. Multiplex Control Unit, Passenger's Connectors A, B:
