Radiator Cooling Fan Control Module: Testing and Inspection

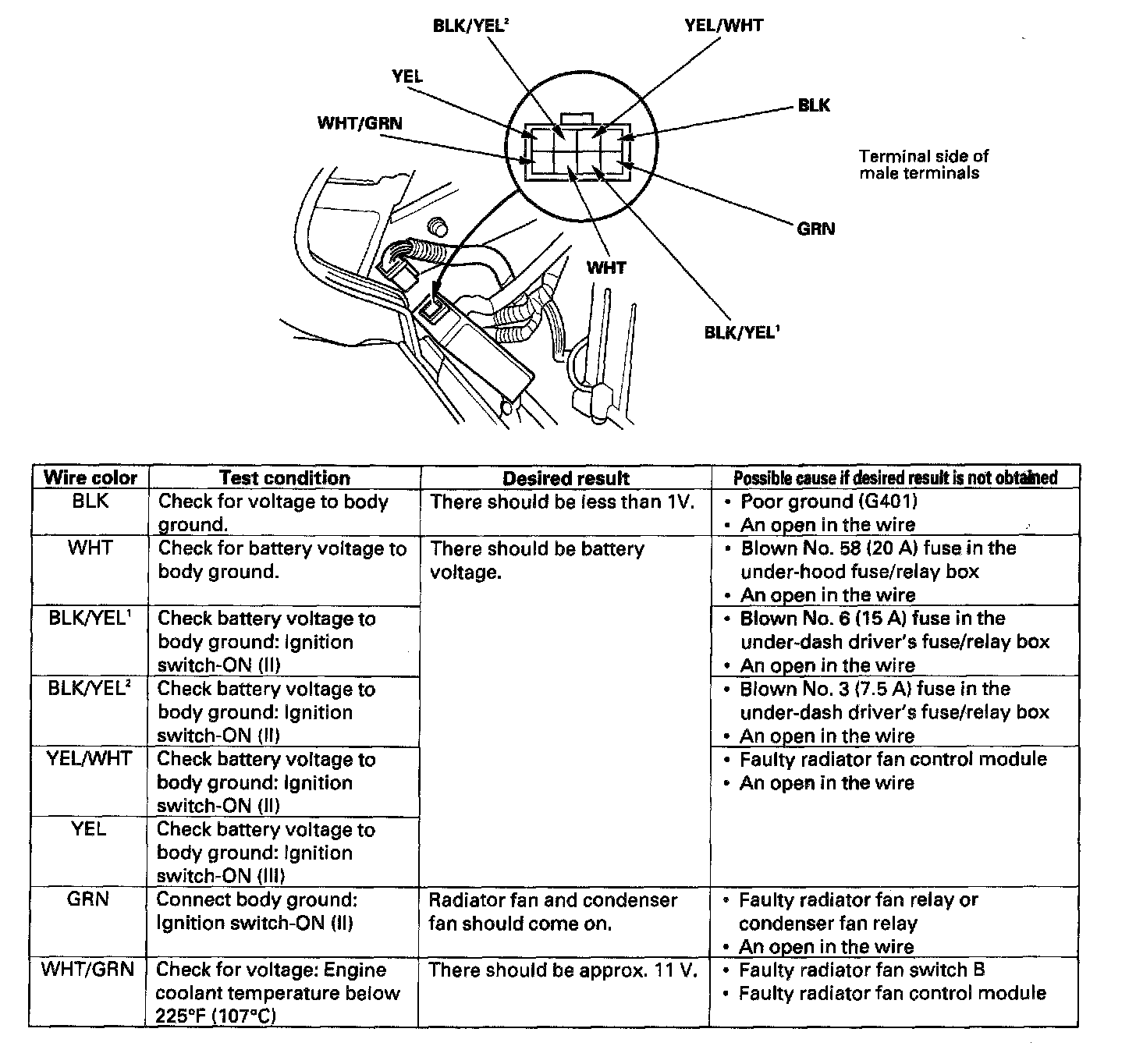

Fan Control Module Input Test





Perform the following tests with the radiator fan control module 8P connector connected, the ignition switch ON (II) and the A/C switch OFF.
If you find the cause of a problem, correct it before you continue.
