Brake Switch Signal

This signals the PCM when the brake pedal is depressed.

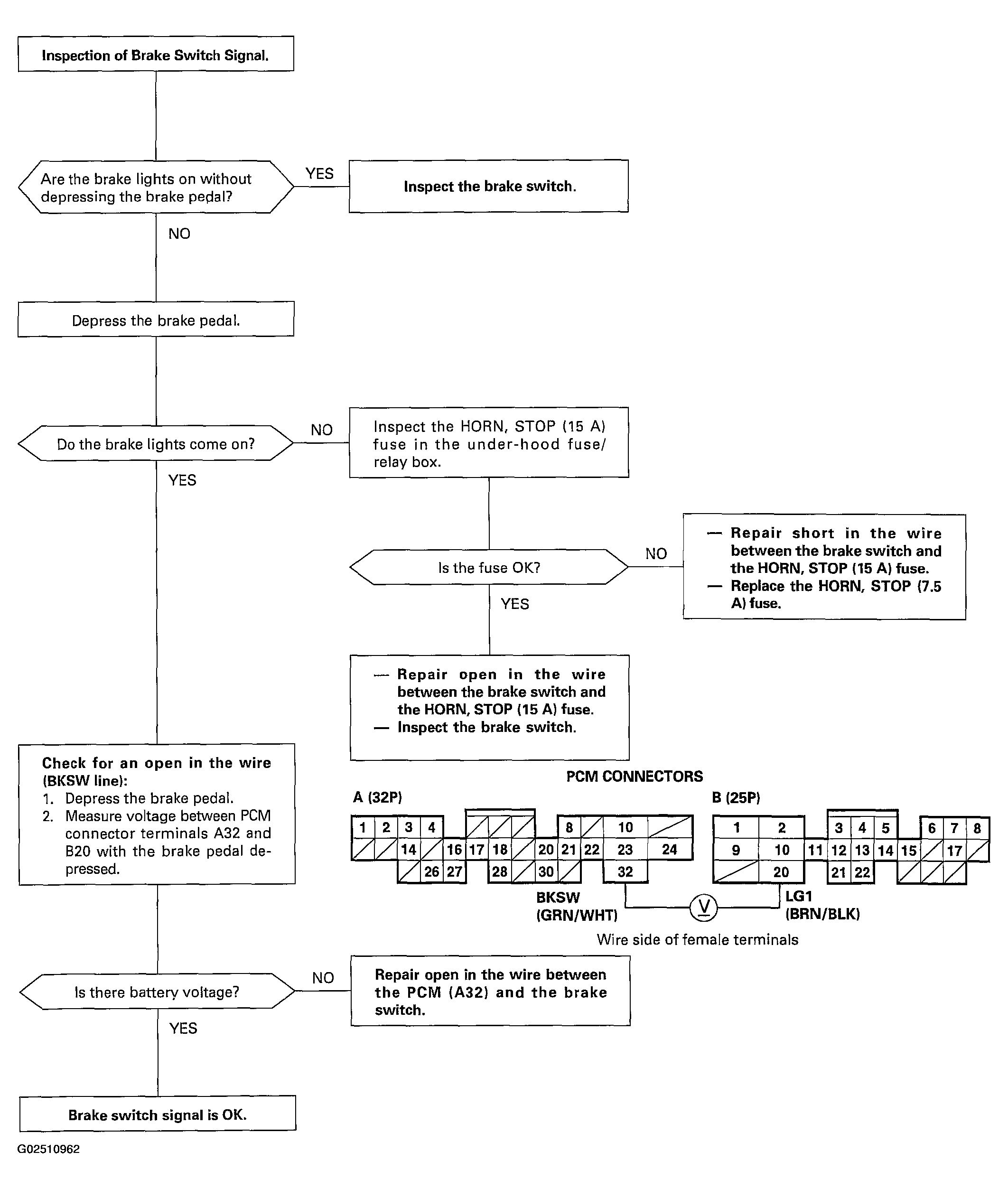

Fig 1: Brake Switch Signal Troubleshooting Flowchart
G02510962Courtesy of AMERICAN HONDA MOTOR CO., INC.
