Engine Performance: Application: Introduction: Introduction: Notes

2000 MODEL COVERAGE

MODEL	ENGINE (1)	BODY/ENGINE CODE (2)	FUEL SYSTEM	IGNITION SYSTEM (3)
Civic	1.6L 4-Cyl. (D16Y7)	EJ6	SFI	Magnetic
Civic	1.6L 4-Cyl. (D16Y5) (5)	EJ7	SFI	Magnetic
Civic	1.6L 4-Cyl. (D16Y8) (4)	EJ8	SFI	Magnetic
Civic	1.6L 4-Cyl. (B16A2) (4)(6)	EM1	SFI	Magnetic
CR-V	2.0L 4-Cyl. (B20Z2) (6)	RD1	SFI	Magnetic
CR-V	2.0L 4-Cyl. (B20Z2) (6)	RD2	SFI	Magnetic
Passport	3.2L V6 (6VD1) (6)	K (2WD)/W	SFI	DIS
Passport	3.2L V6 (6VD1) (6)	M (4WD)/W	SFI	DIS
Prelude	2.2L 4-Cyl. (H22A4) (4)(6)	BB6	SFI	Magnetic
(1) Engine Code is the first 5 characters of the 12 characters stamped or tagged on engine block. (2) On all models except Passport, Body/Engine ID is the fourth, fifth and sixth digits of VIN. On Passport, Body/Engine ID is the fifth, sixth, seventh and eighth digits of VIN. (3) Ignition timing is controlled by Powertrain Control Module (PCM). (4) Variable Valve Timing with Electronic Control (VTEC) system. (5) VTEC-E system. (6) Dual Overhead Camshafts (DOHC).

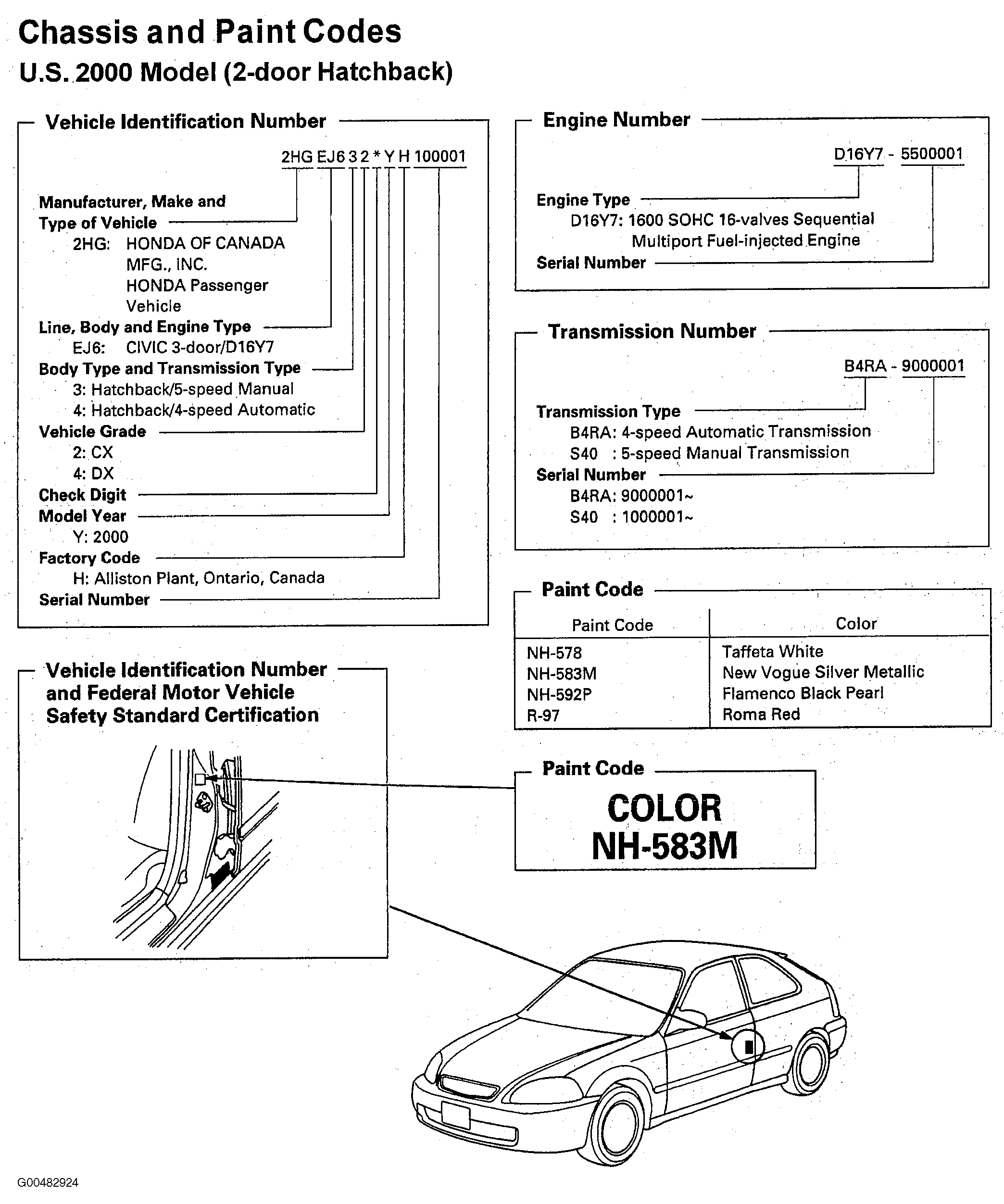

Fig 1: Chassis & Paint Codes (U.S. Model, Civic 2-door Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

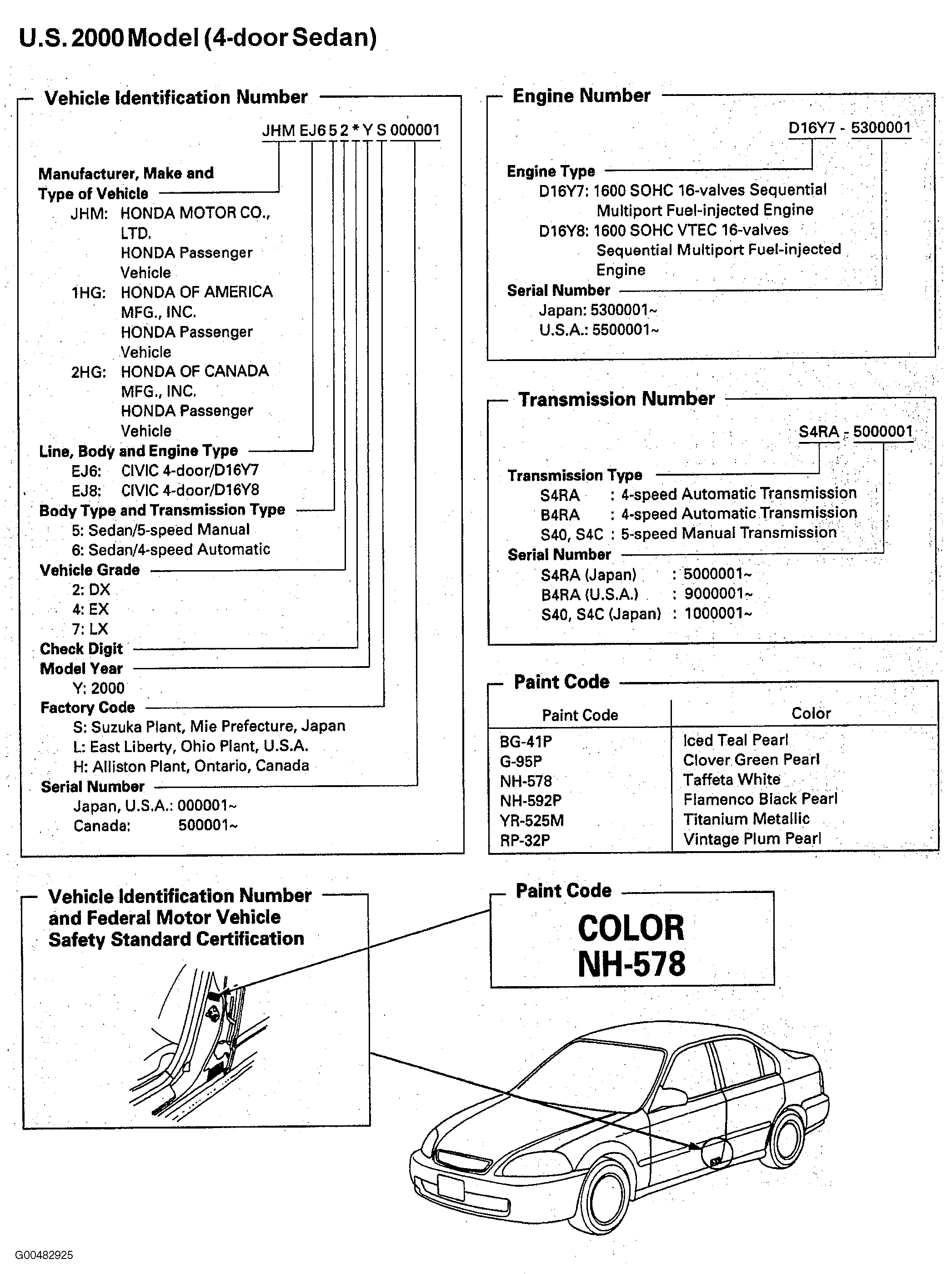

Fig 2: Chassis & Paint Codes (U.S. Model, Civic 4-door Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

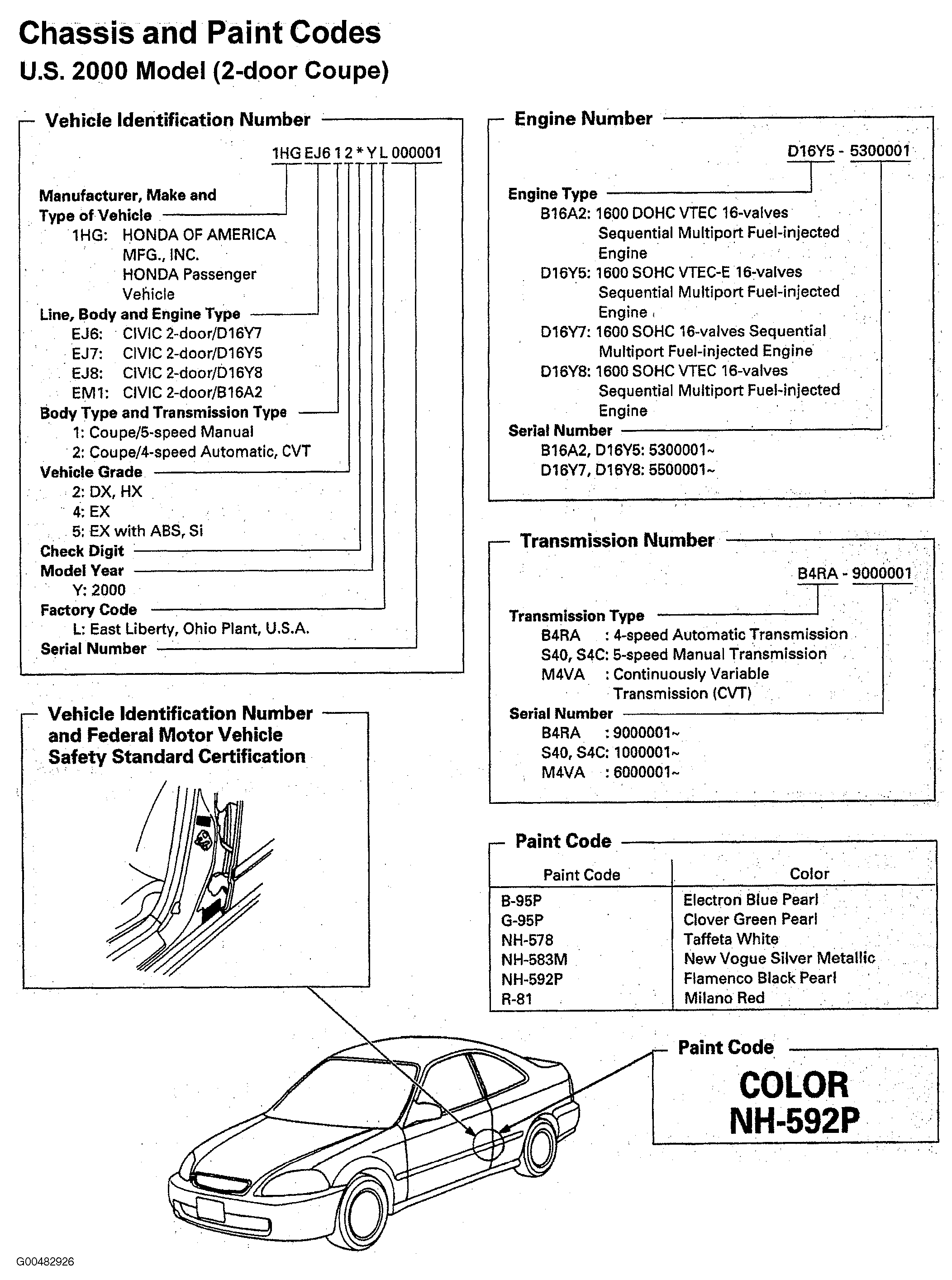

Fig 3: Chassis & Paint Codes (U.S. Model, Civic 2-Door Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

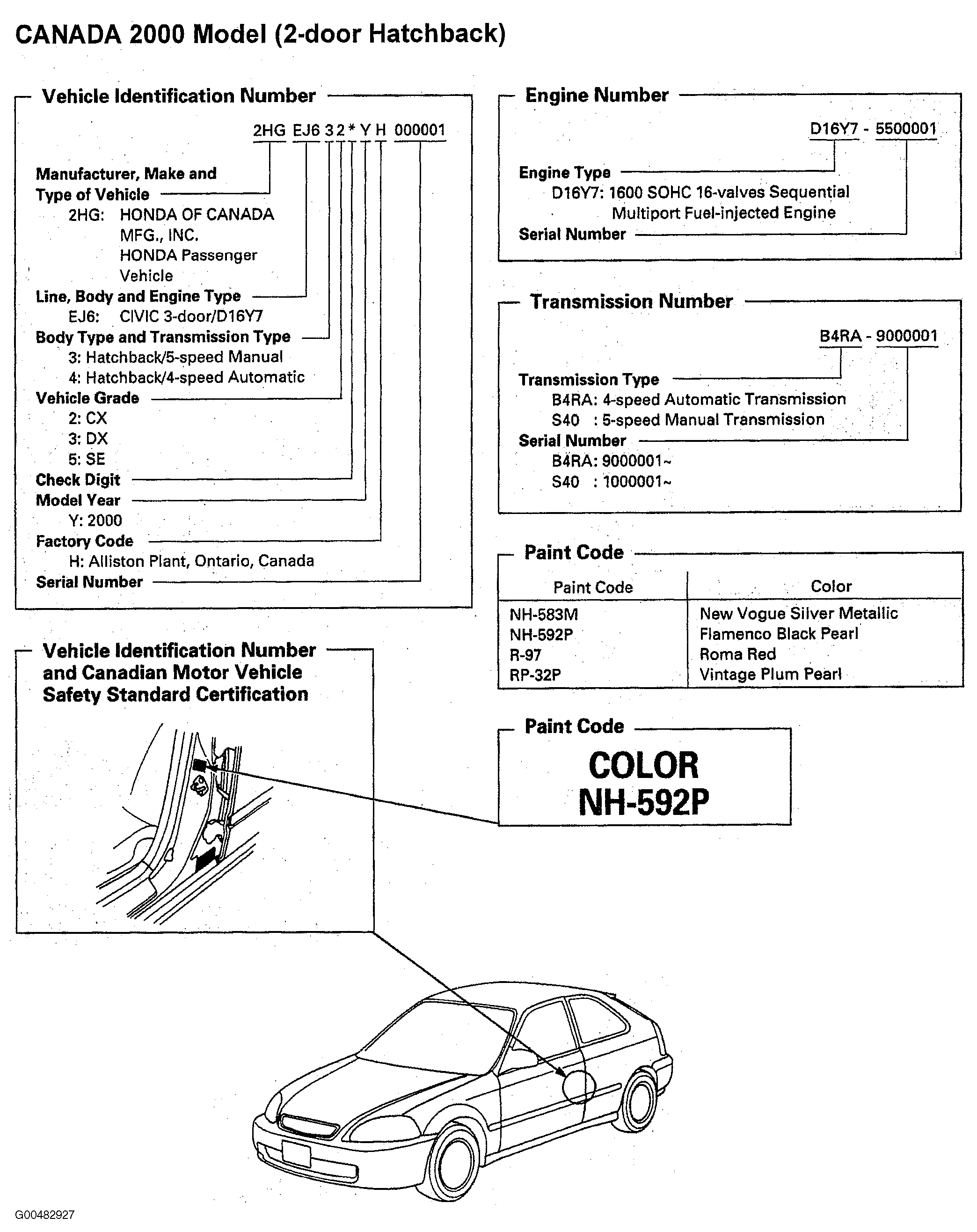

Fig 4: Chassis & Paint Codes (Canada Model, Civic 2-Door Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

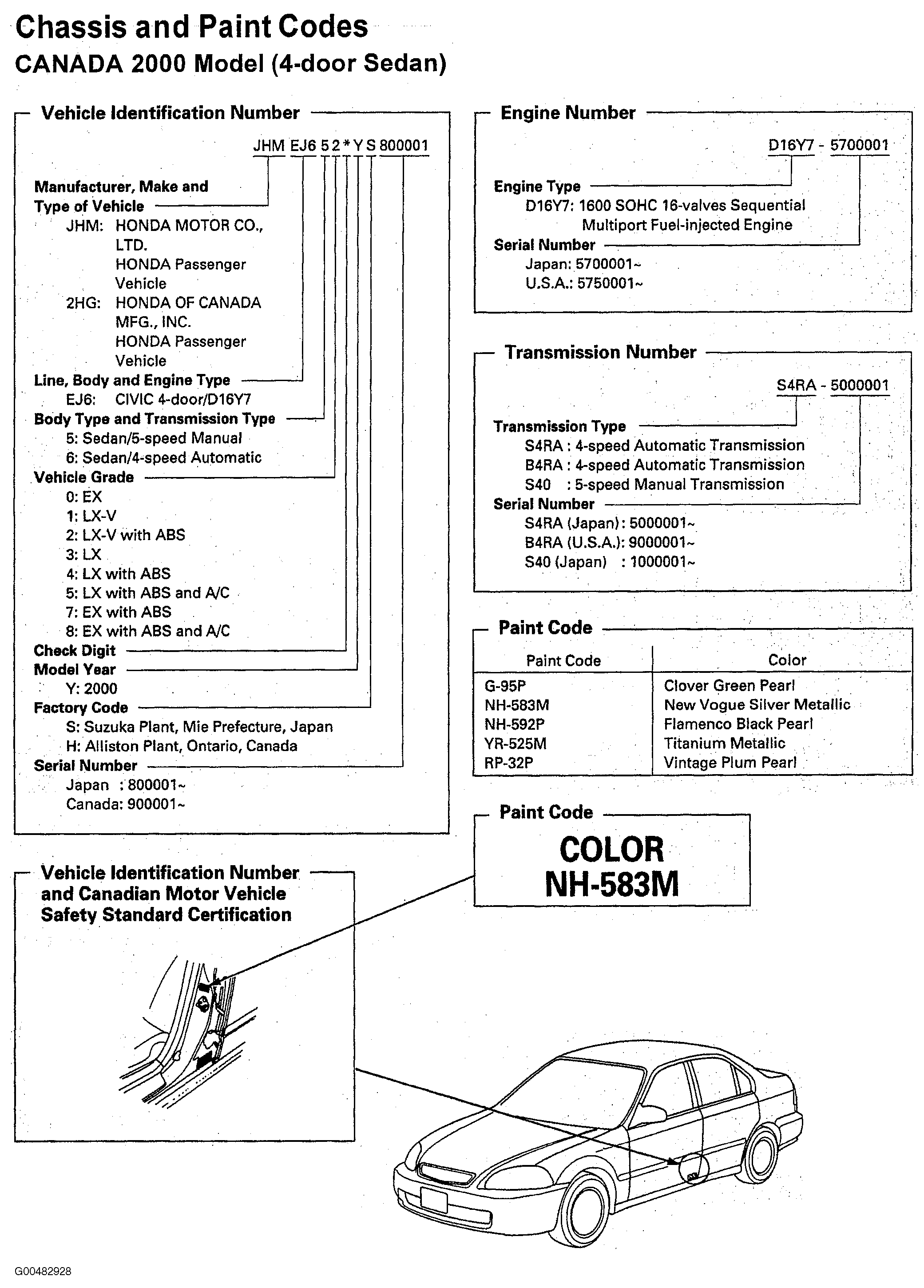

Fig 5: Chassis & Paint Codes (Canada Model, Civic 4-Door Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

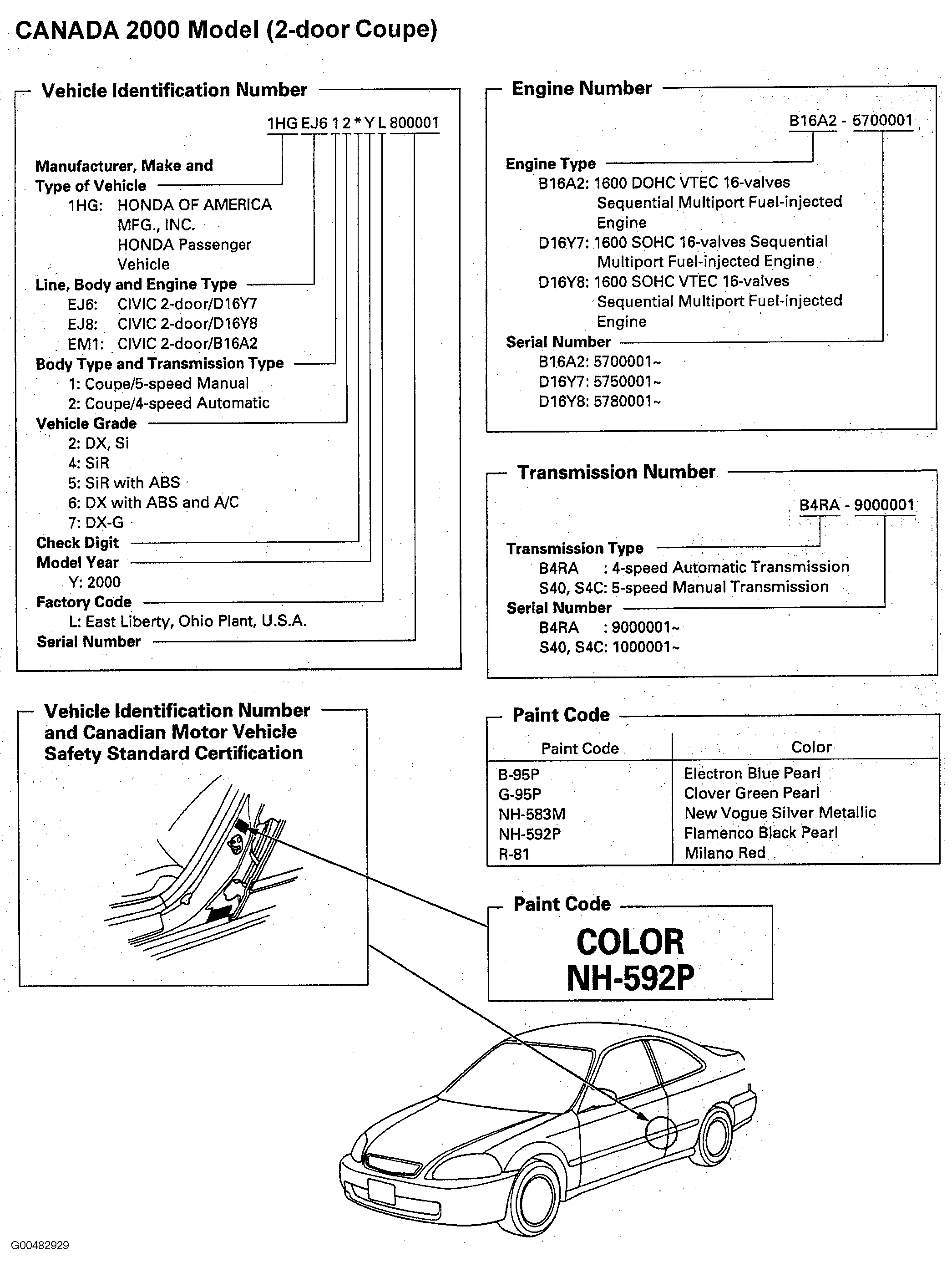

Fig 6: Chassis & Paint Codes (Canada Model, Civic 2-Door Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

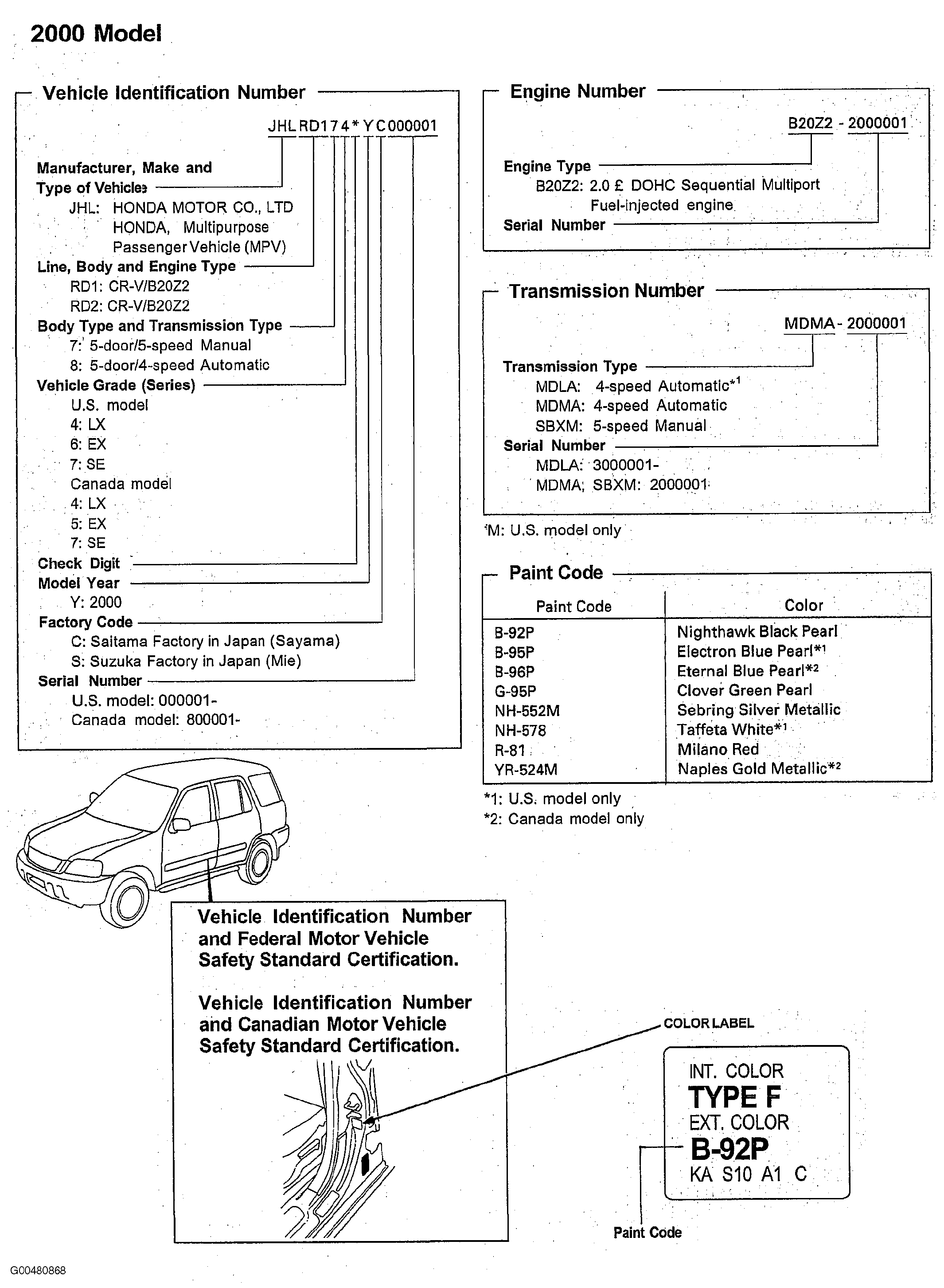

Fig 7: Chassis & Paint Codes (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

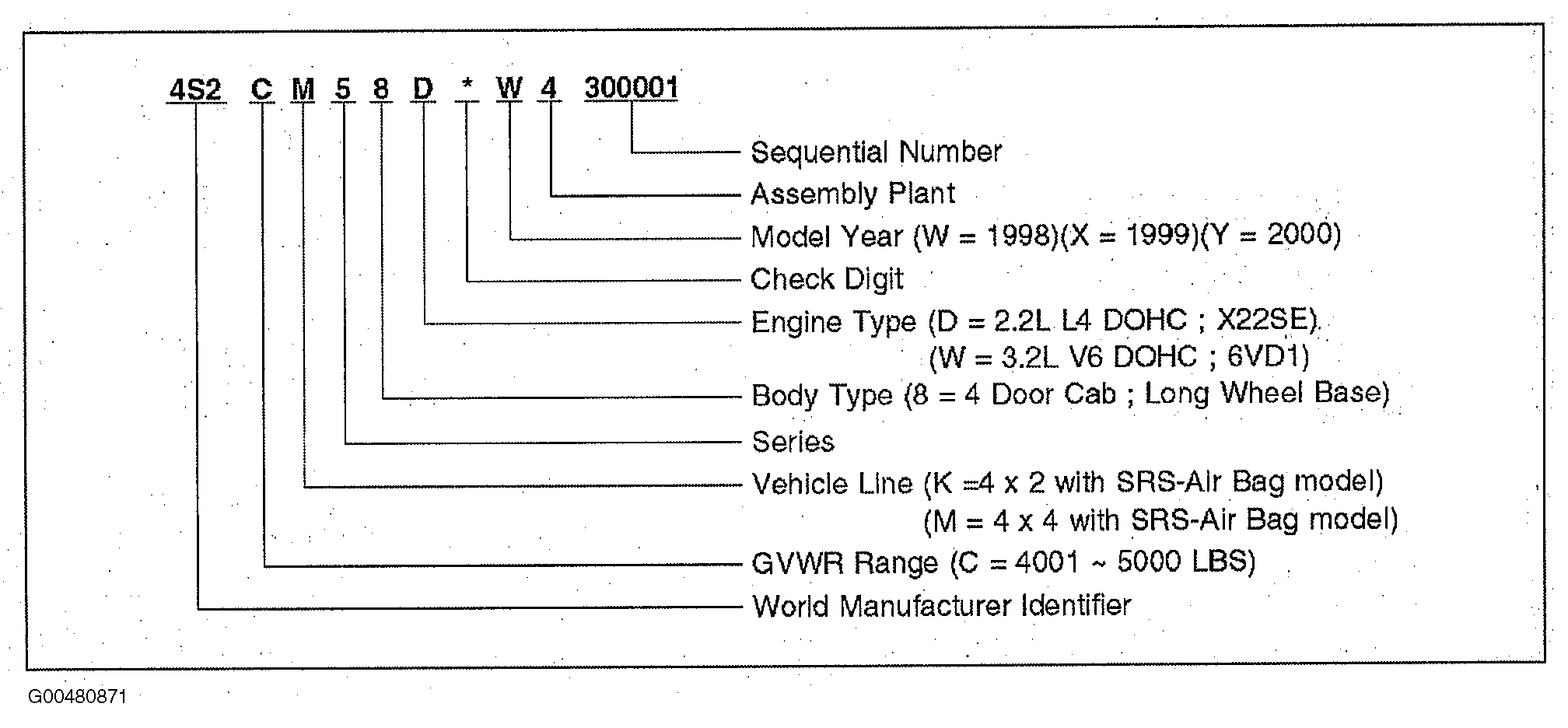

Fig 8: VIN Code Identification (Passport)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

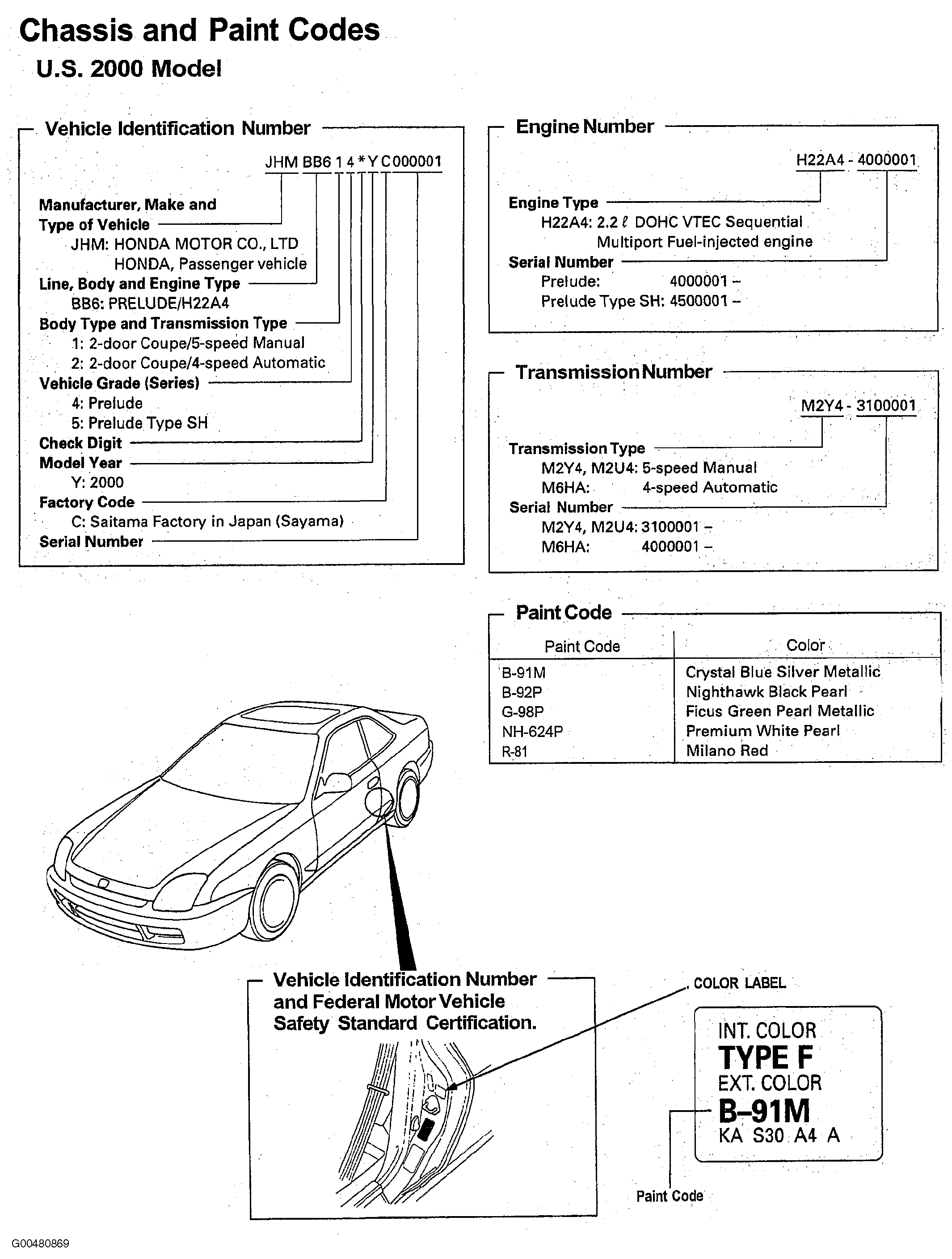

Fig 9: Chassis & Paint Codes (U.S. Model, Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

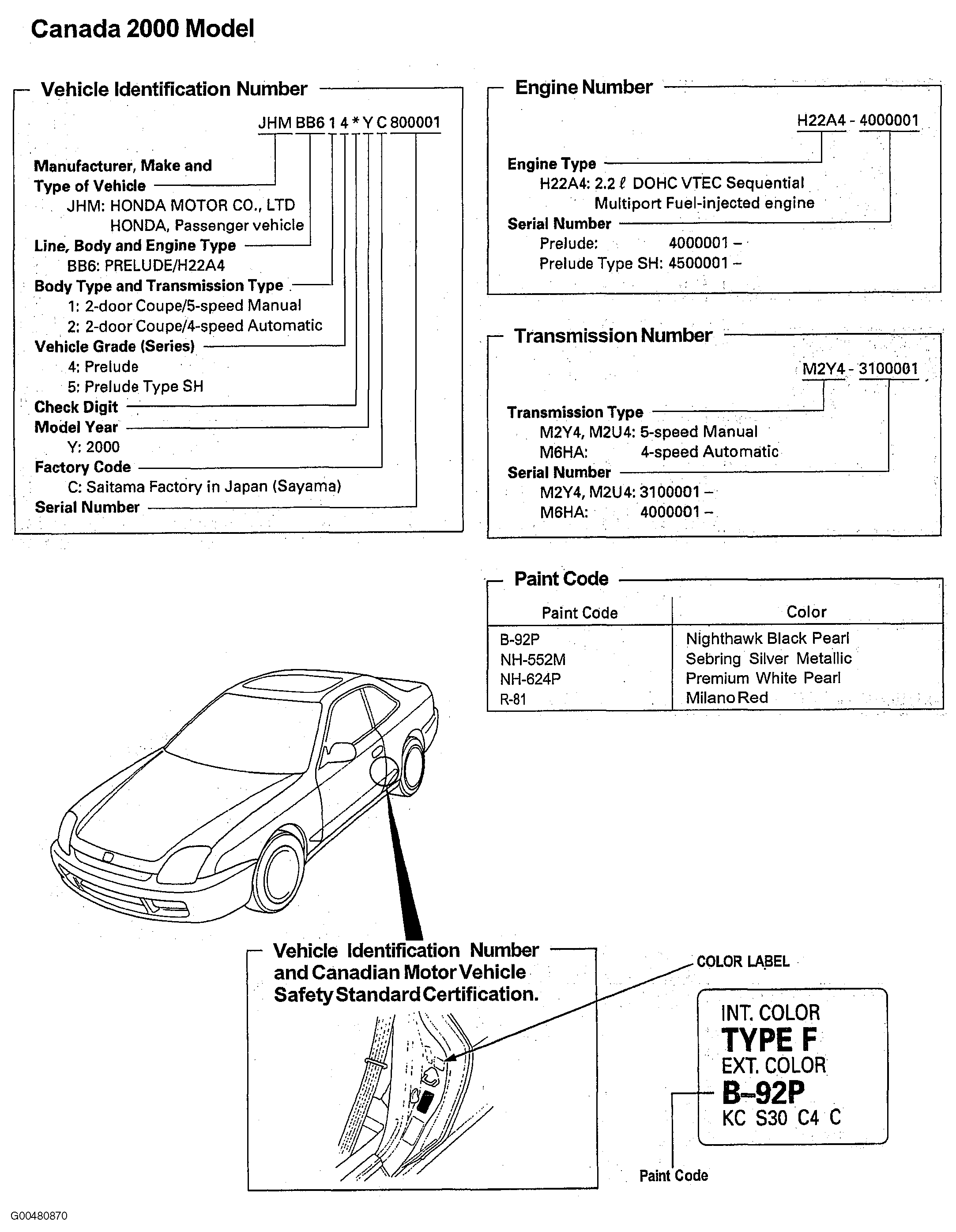

Fig 10: Chassis & Paint Codes (Canada Model, Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
