Component Location Index

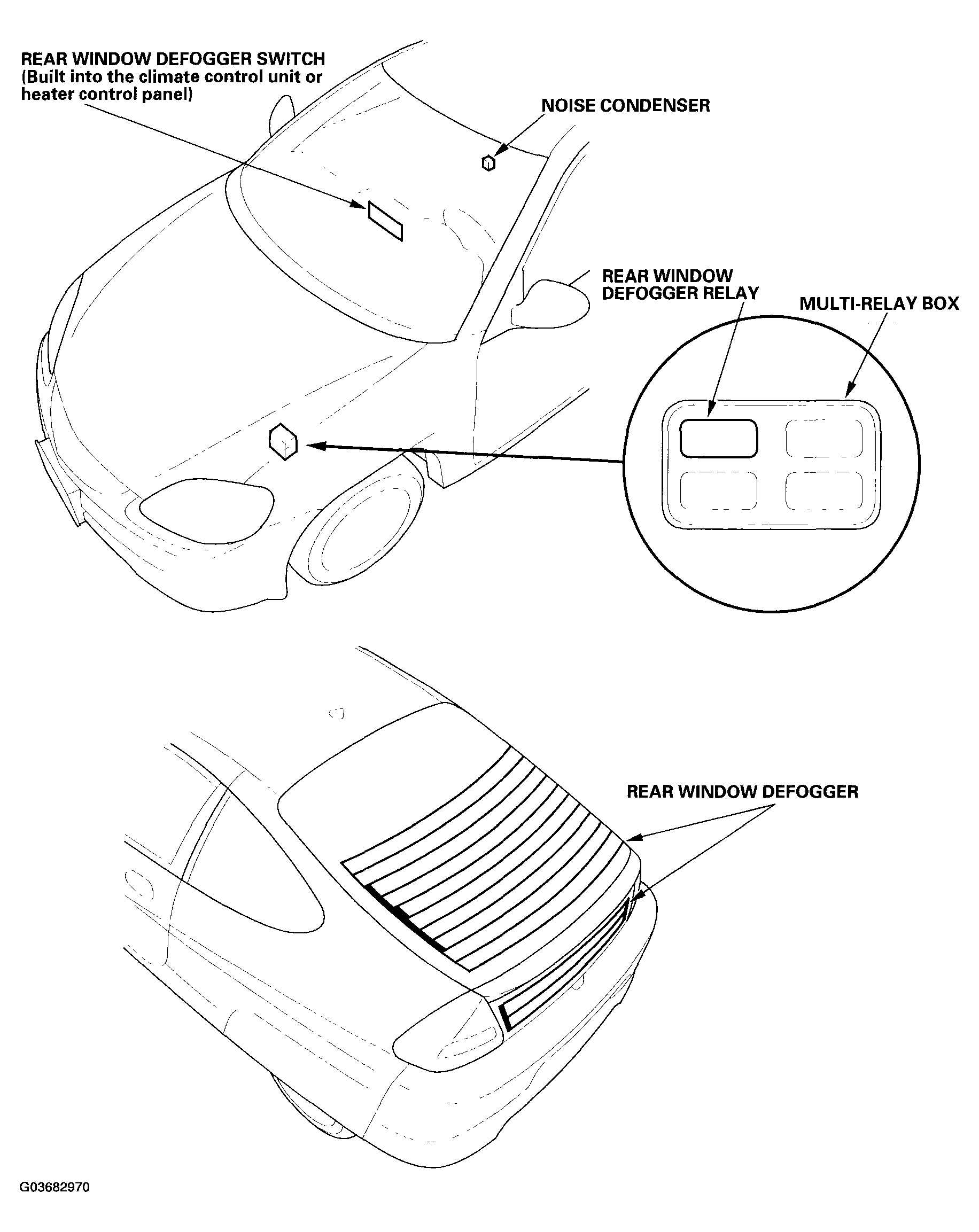

Fig 1: Identifying Rear Window Defogger Components Location
G03682970Courtesy of AMERICAN HONDA MOTOR CO., INC.
