Circuit Diagram

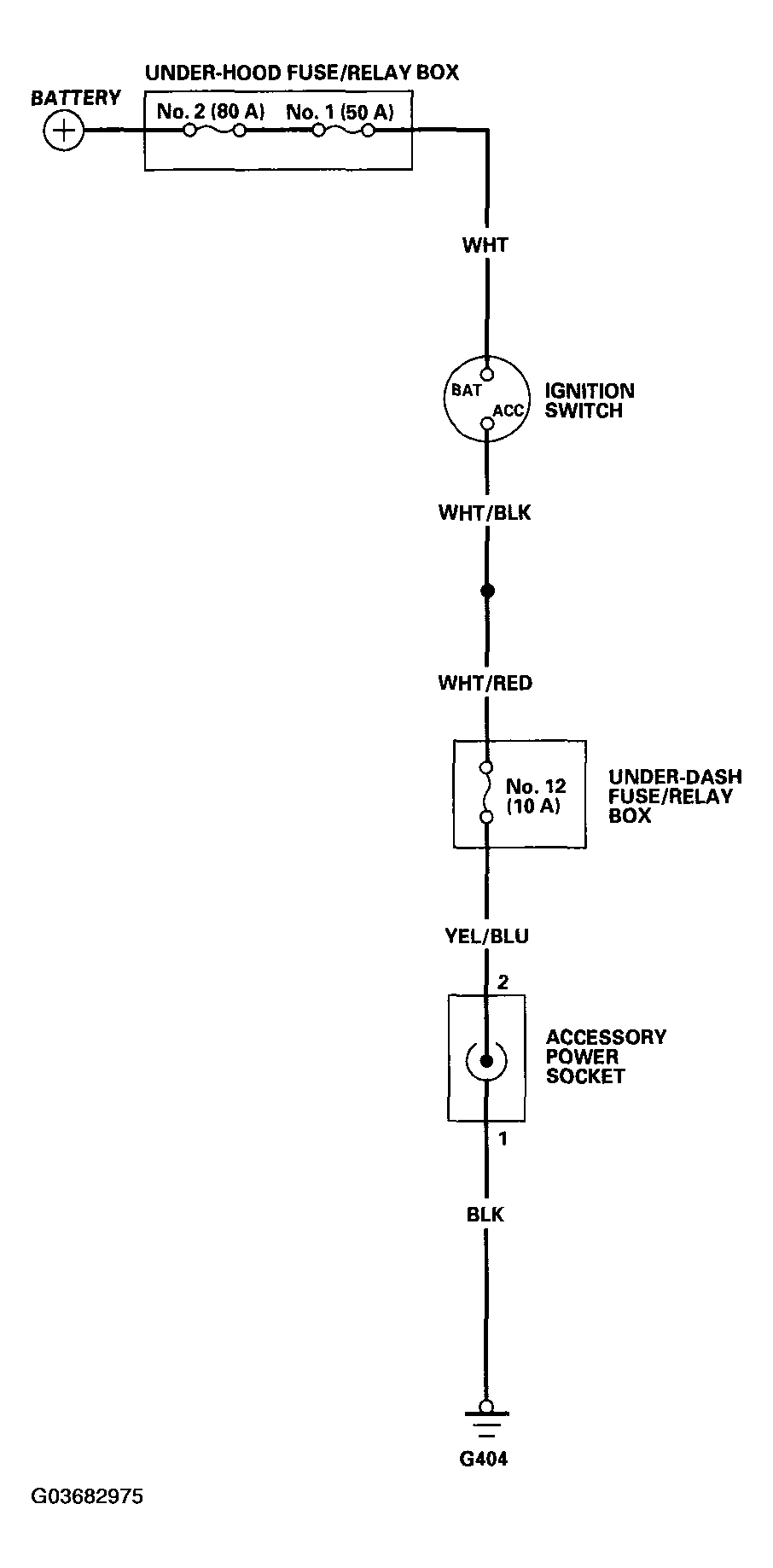

Fig 1: Circuit Diagram - Accessory Power Socket

G03682975

Courtesy of AMERICAN HONDA MOTOR CO., INC.
