Brake Booster Pressure Sensor System

The brake booster pressure sensor converts brake booster vacuum into an electrical input to the ECM. The ECM uses this signal to control the engine auto idle stop.

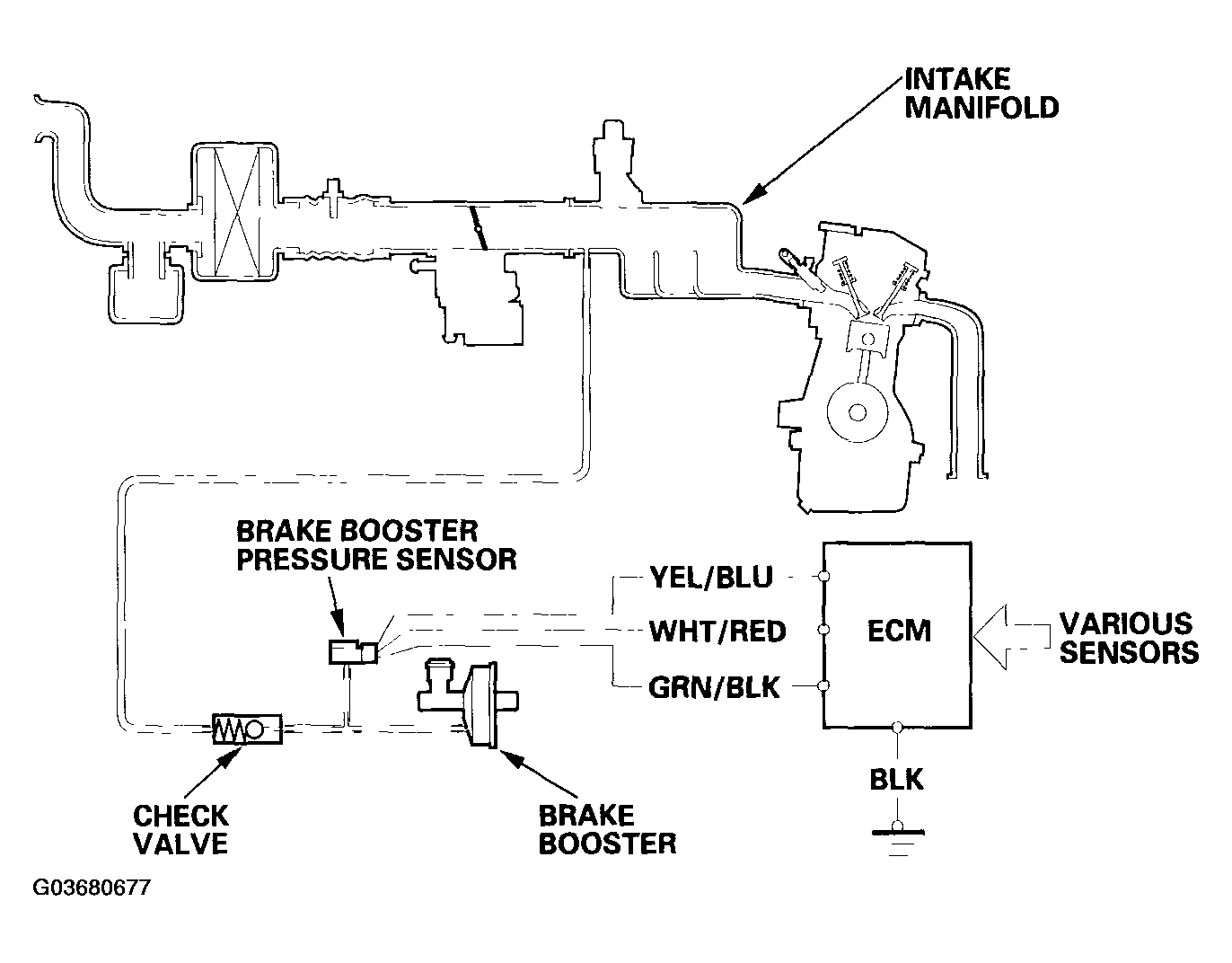

Fig 1: Identifying Brake Booster Pressure Sensor System Components
G03680677Courtesy of AMERICAN HONDA MOTOR CO., INC.
