System Description
>>
Vacuum Distribution
>>
2000-2005 M/T models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2000-2005 M/T models

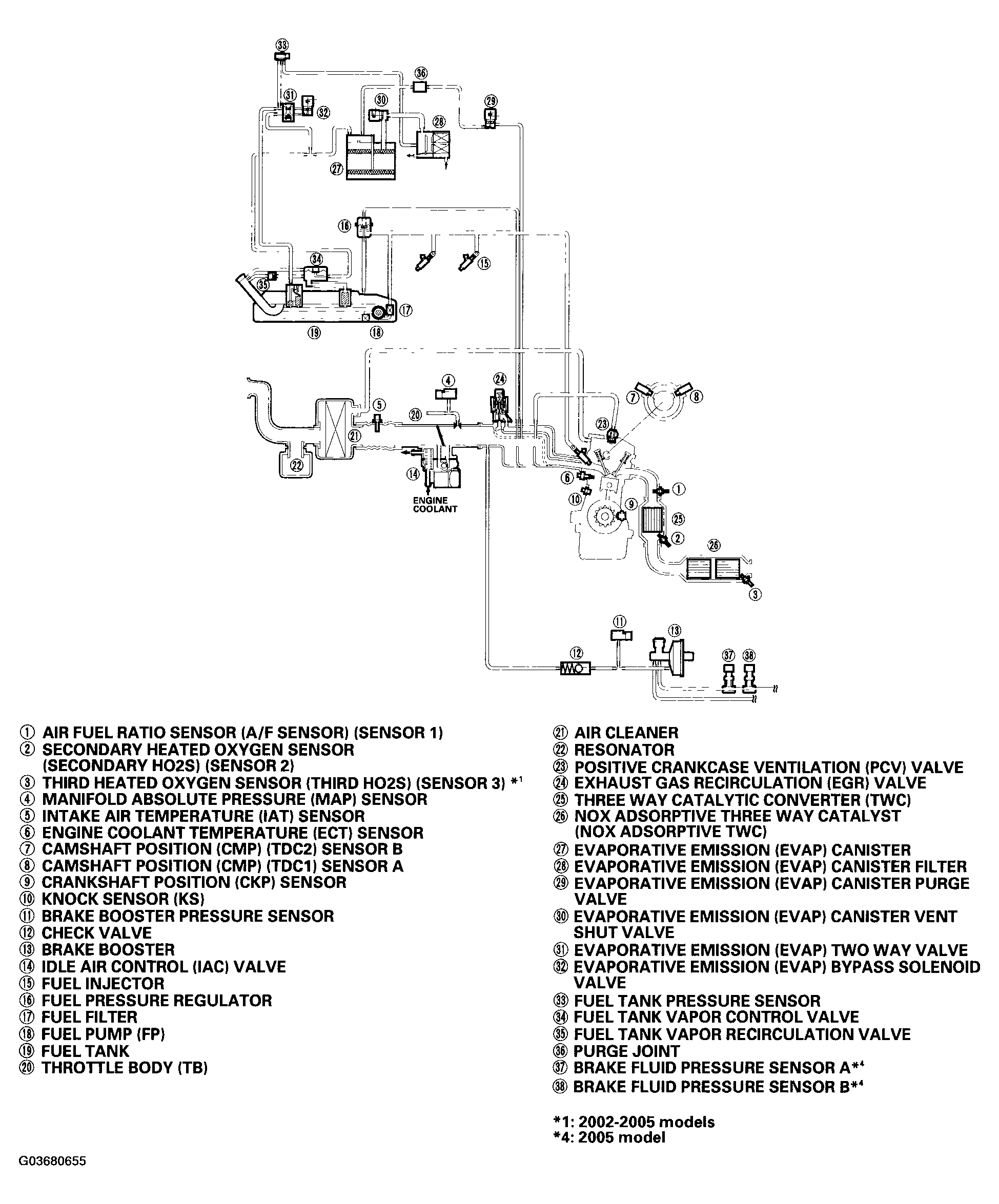

Fig 1: Identifying Vacuum Distribution (2000-2005 M/T Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
