Intake Manifold Removal and Installation

NOTE: Use new O-rings and gaskets when reassembling.

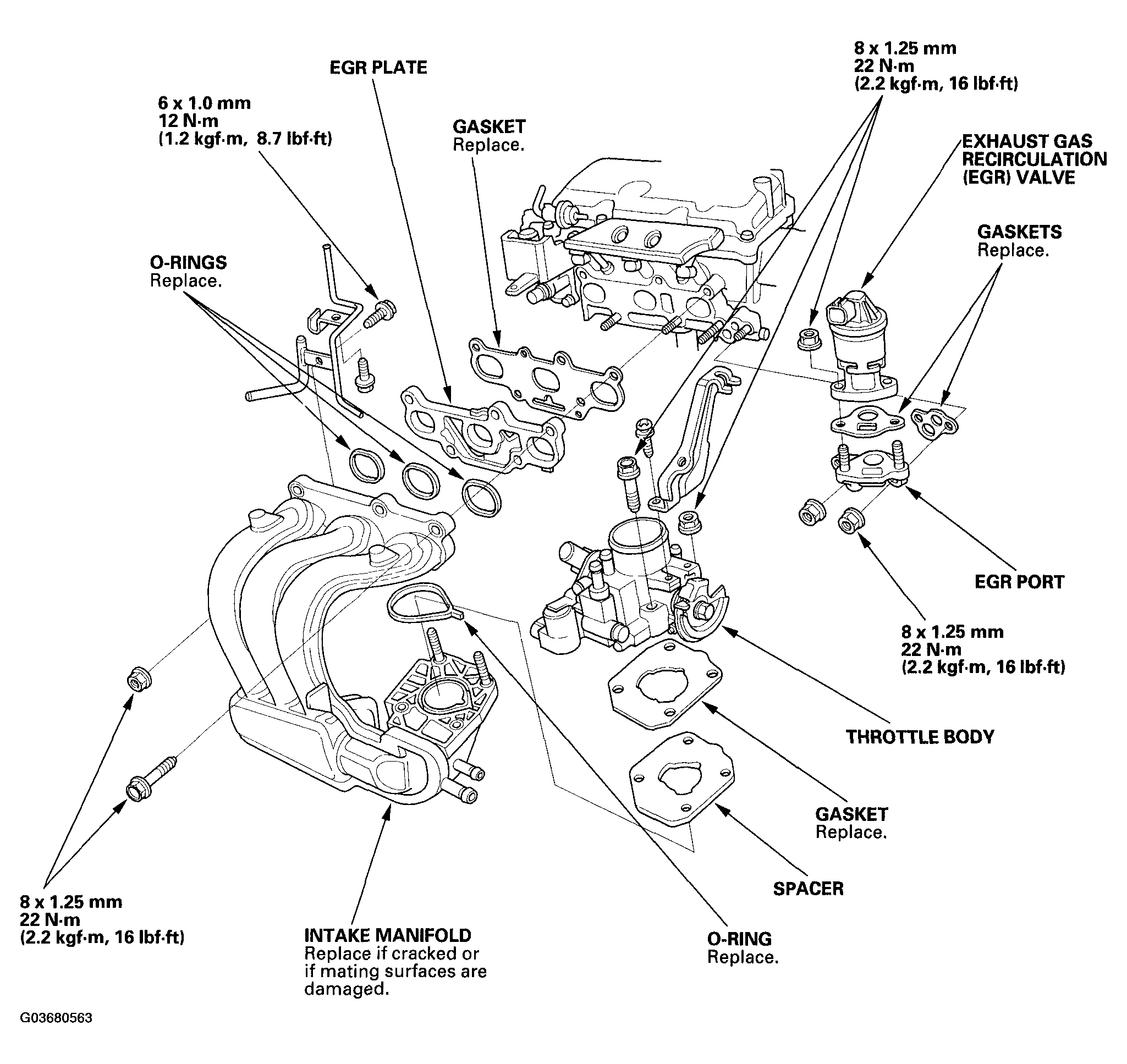

Fig 1: Exploded View Of Intake Manifold
G03680563Courtesy of AMERICAN HONDA MOTOR CO., INC.
