Exploded View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 Honda Insight, 2005 Honda Insight, 2004 Honda Insight, 2003 Honda Insight, and 2002 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

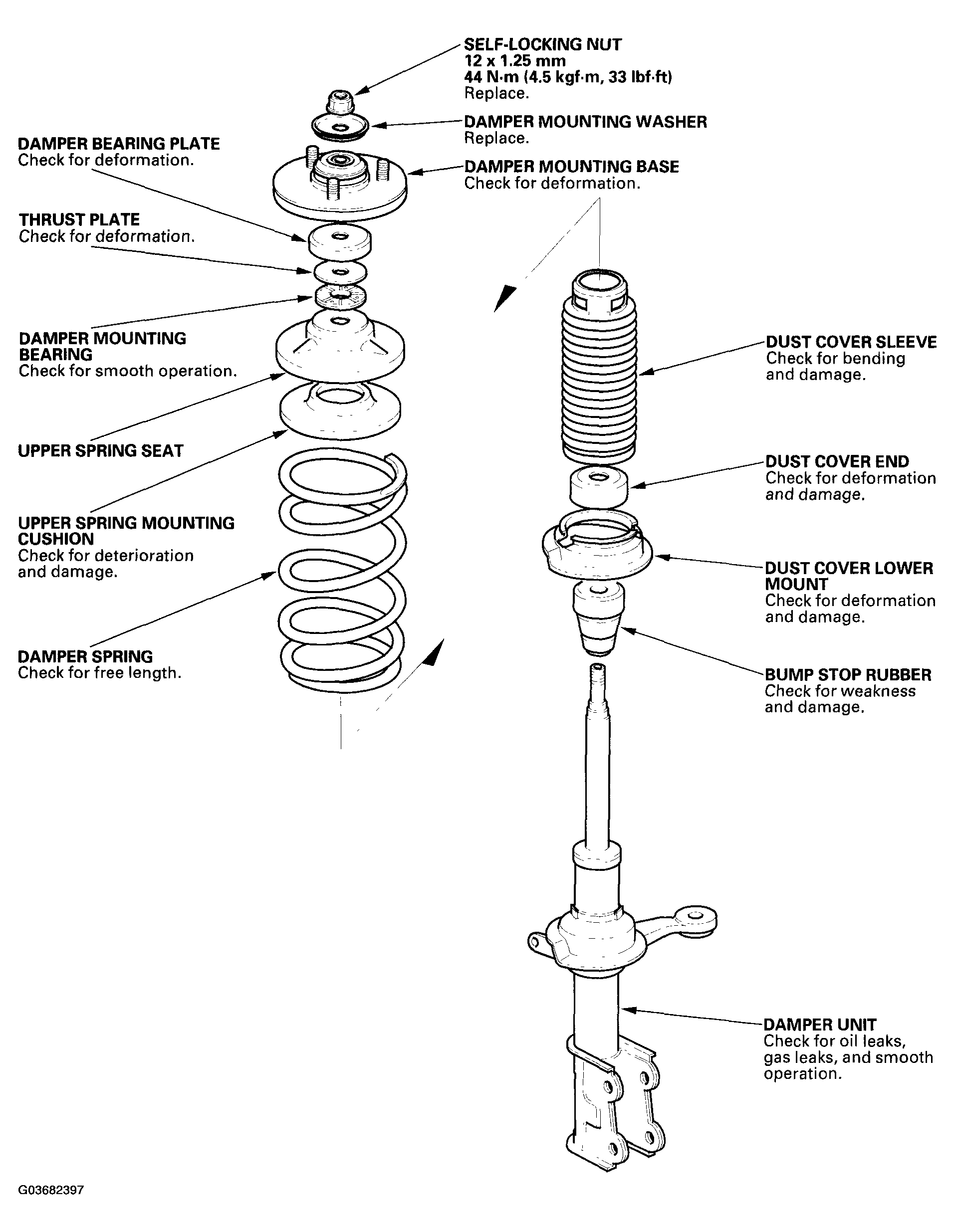

Fig 1: Exploded View Of Damper/Spring And Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball joint remover, 28 mm 07MAC-SL0A202

NOTE: To avoid damage, do not strike aluminum parts with a metal hammer. If necessary, tap gently with a plastic-tipped hammer.

NOTE:

Bolts and nuts with the * mark are special corrosion-resistant Dacro fasteners. Use the same type if replacement is necessary.
When compressing the damper spring, use a commercially available strut spring compressor (Branick MST-580A or Model 7200, or equivalent). According to the manufacturer's instructions.
