ABS/TCS Control Unit Replacement

  1. Remove the ABS/TCS control unit (A) on the driver's side under the dash.

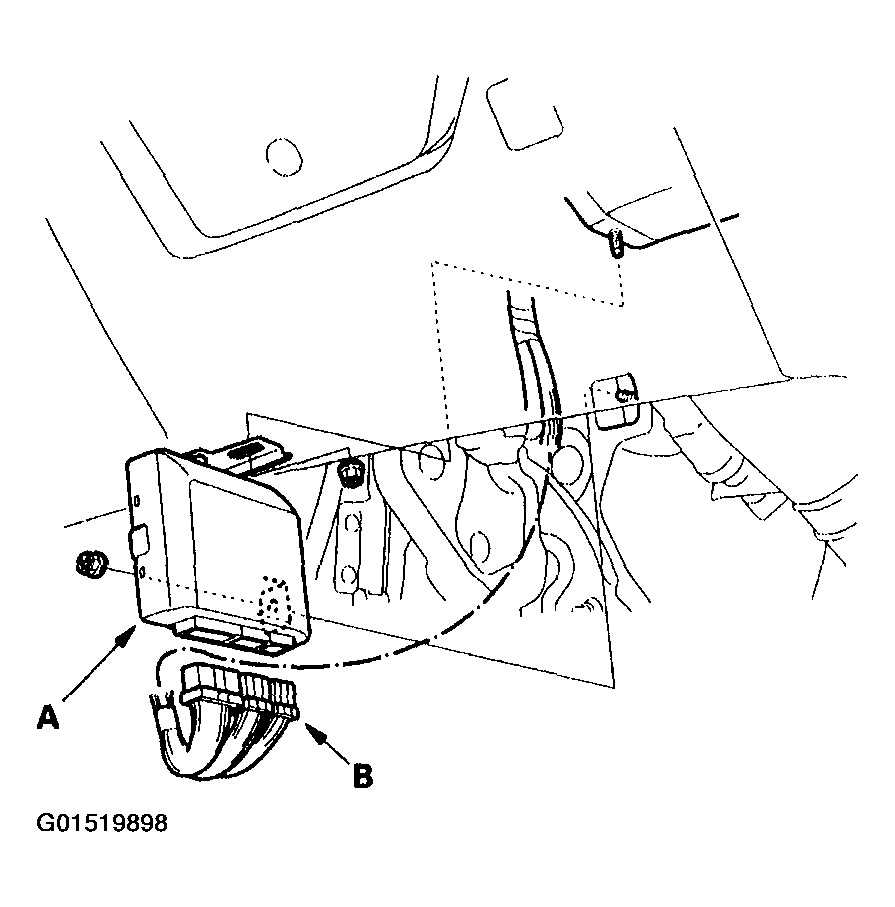

    Fig 1: Removing ABS/TCS Control Unit
    G01519898Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the ABS/TCS control unit connectors (B).
  3. Install the ABS/TCS control unit in the reverse order of removal.
