Component Location Index

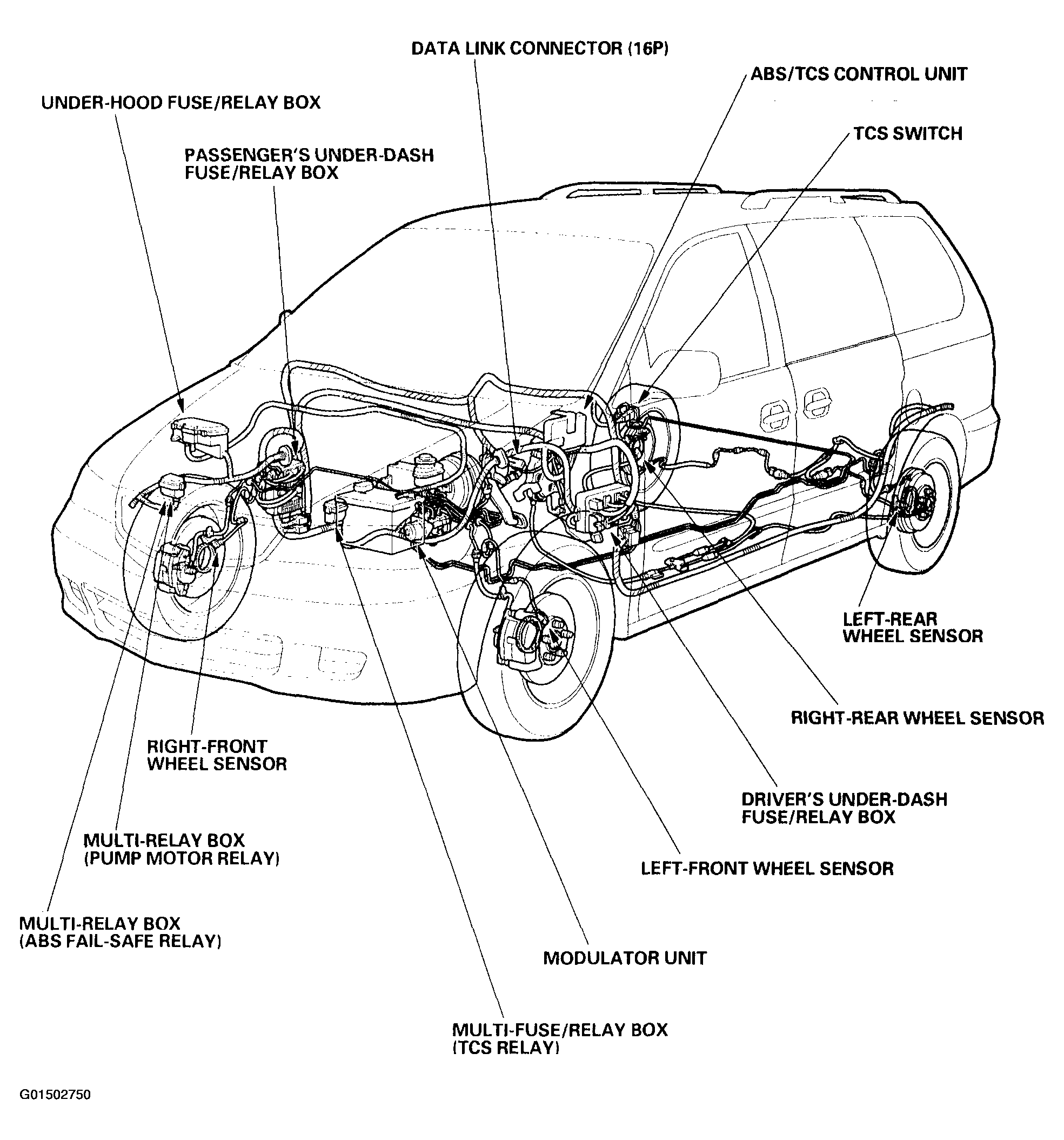

Fig 1: Identifying ABS/TCS Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
