TCS Switch Test

Remove the TCS switch (A) from the switch panel.

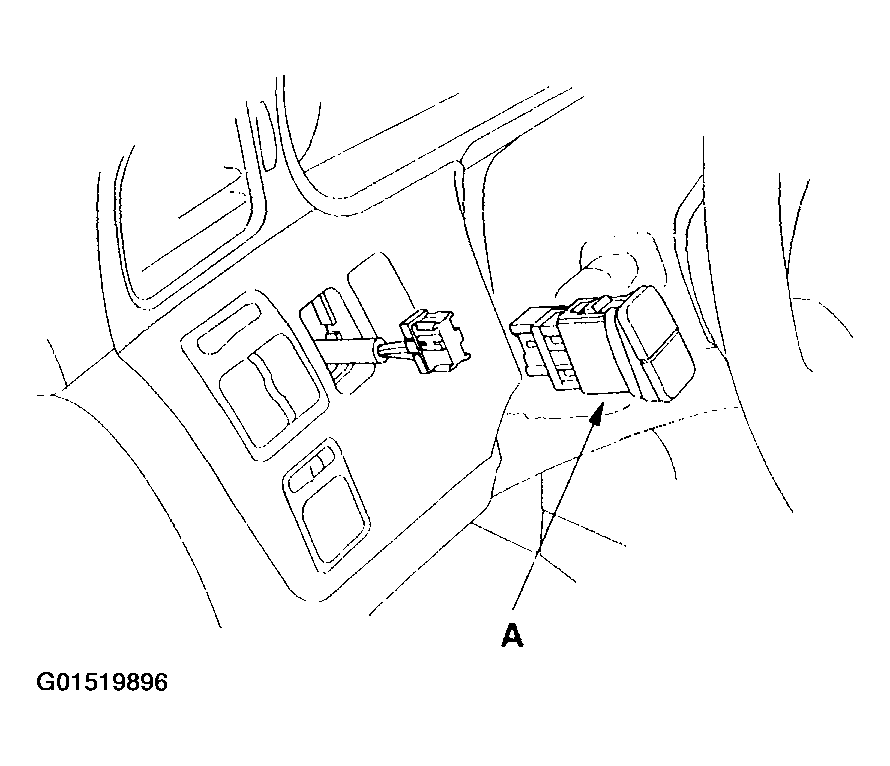

Fig 1: Removing TCS Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminal No. 5 and No. 6. There should be continuity when the TCS switch is pushed.

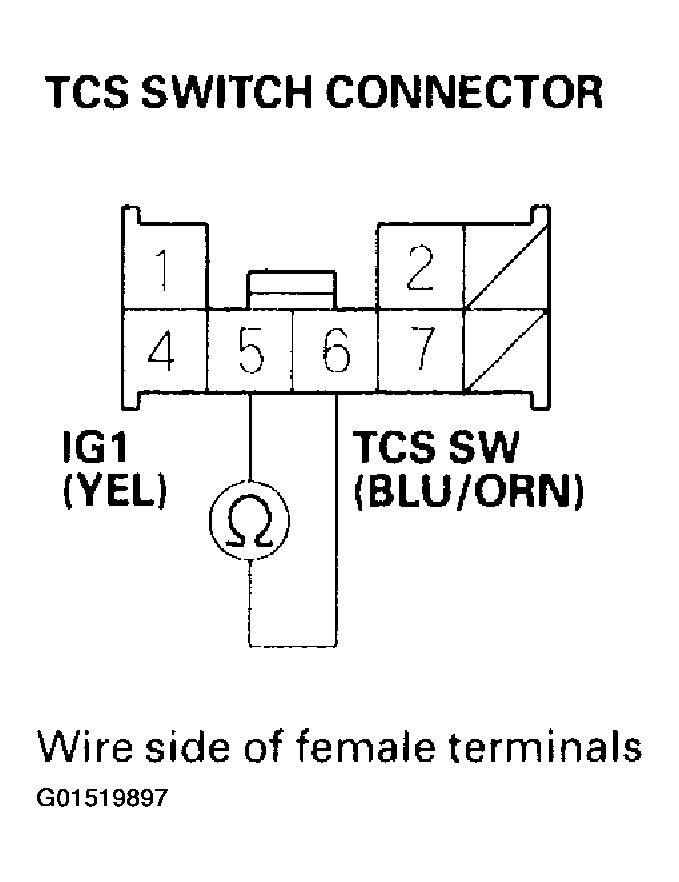

Fig 2: Checking Continuity Between Terminal No. 5 & No. 6
Courtesy of AMERICAN HONDA MOTOR CO., INC.
