Wheel Sensor Replacement

Install the sensors carefully to avoid twisting wires.

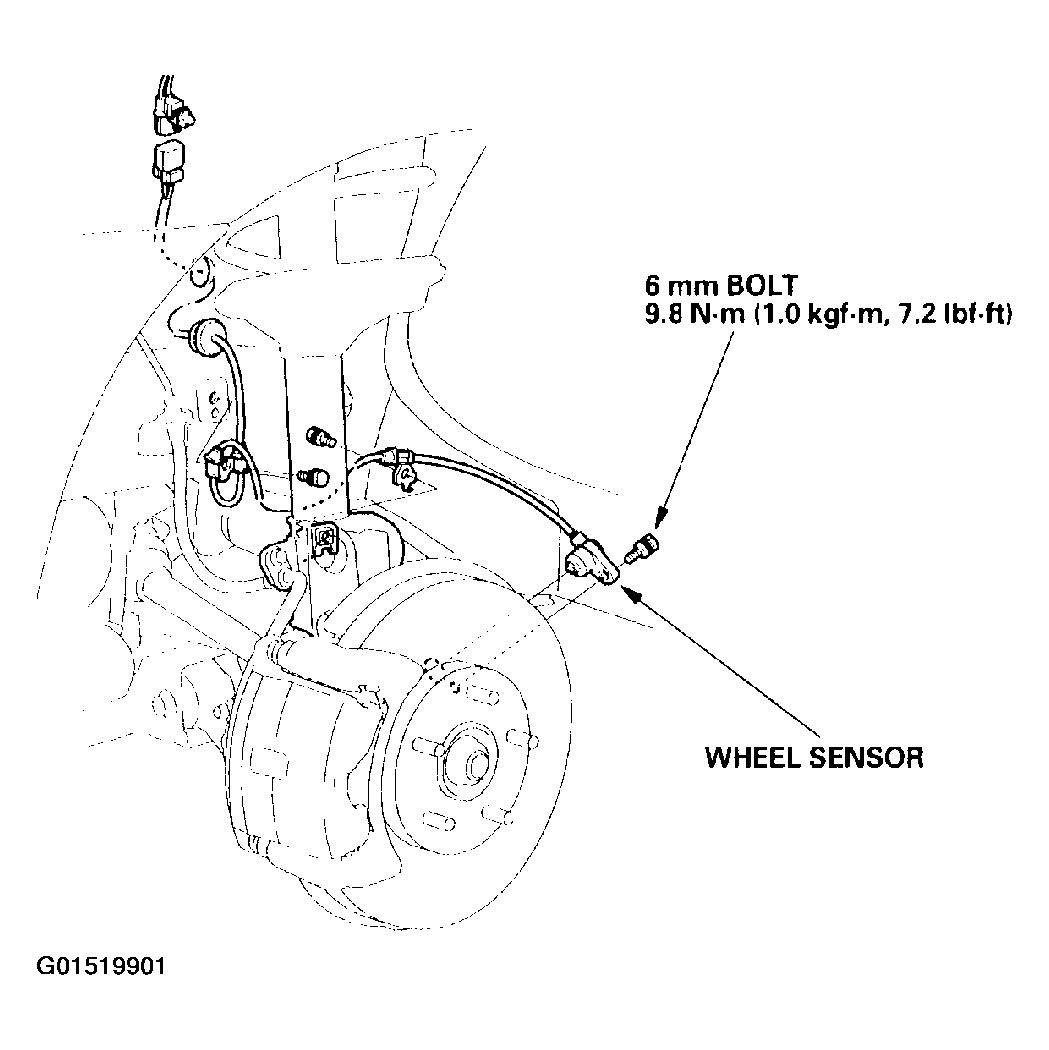

Fig 1: Identifying Wheel Sensor (Front)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

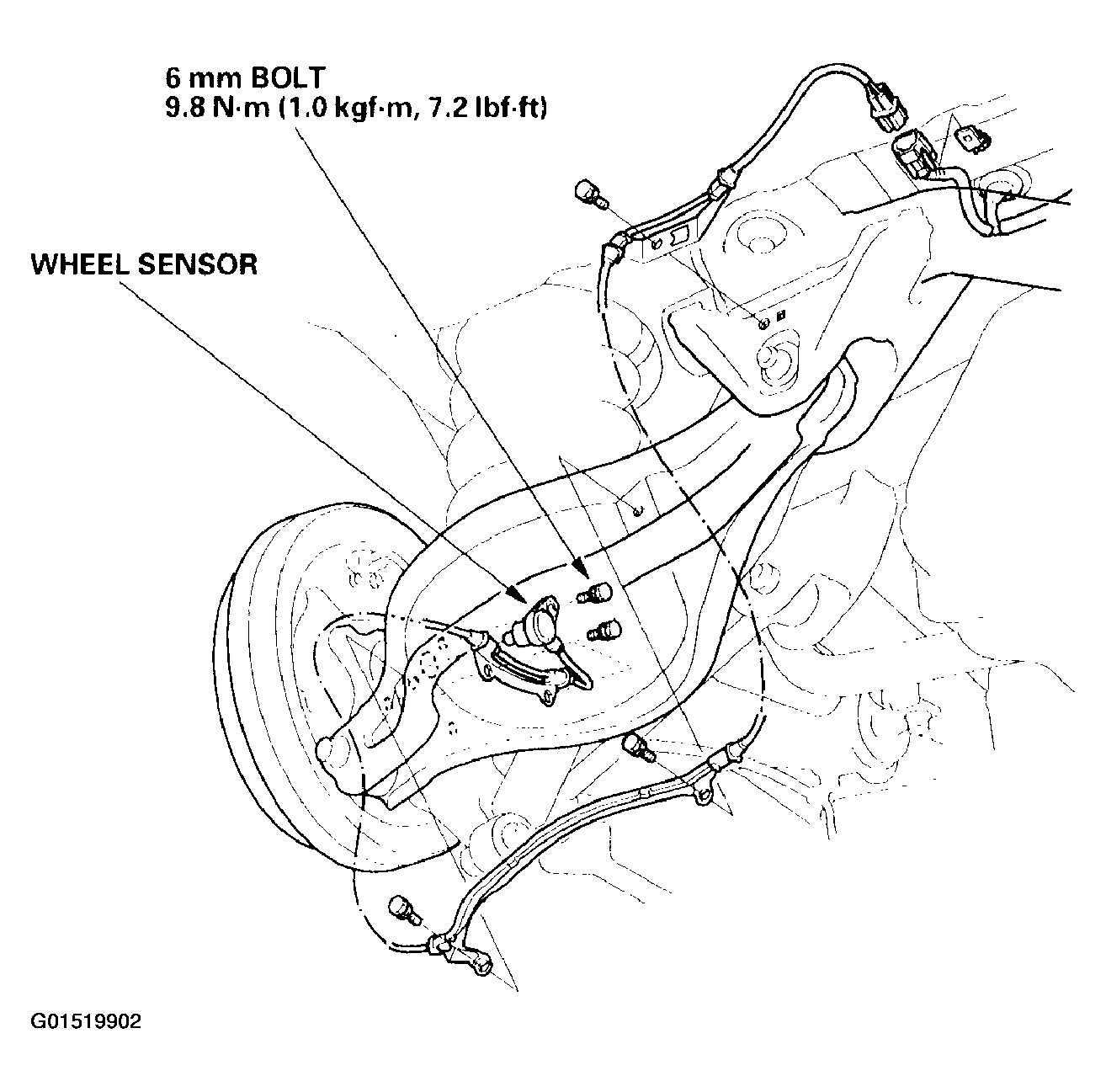

Fig 2: Identifying Wheel Sensor (Rear)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
