Transmission Installation

  1. Flush the ATF cooler (see ATF Cooler Flushing ).

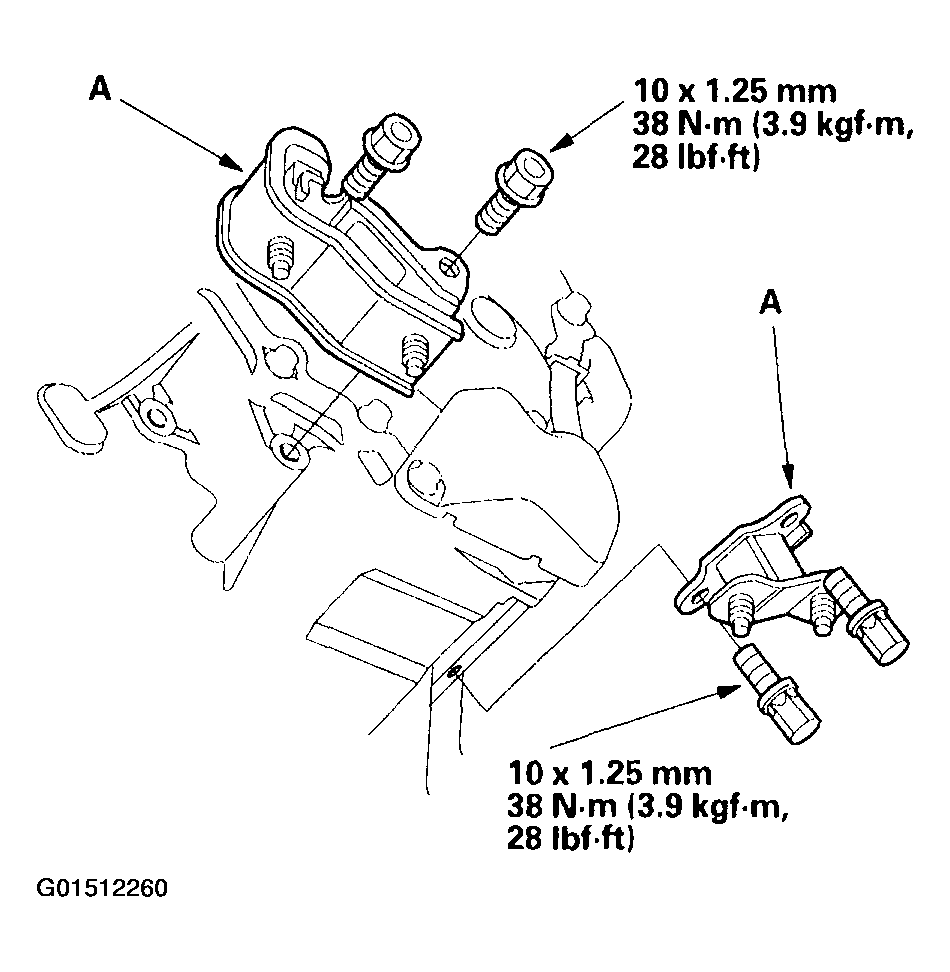

  2. Install the transmission lower mounts (A).
    Fig 1: Installing Transmission Lower Mounts
    G01512260
  3. Install the torque converter assembly (A) on the mainshaft (B) with a new O-ring (C).

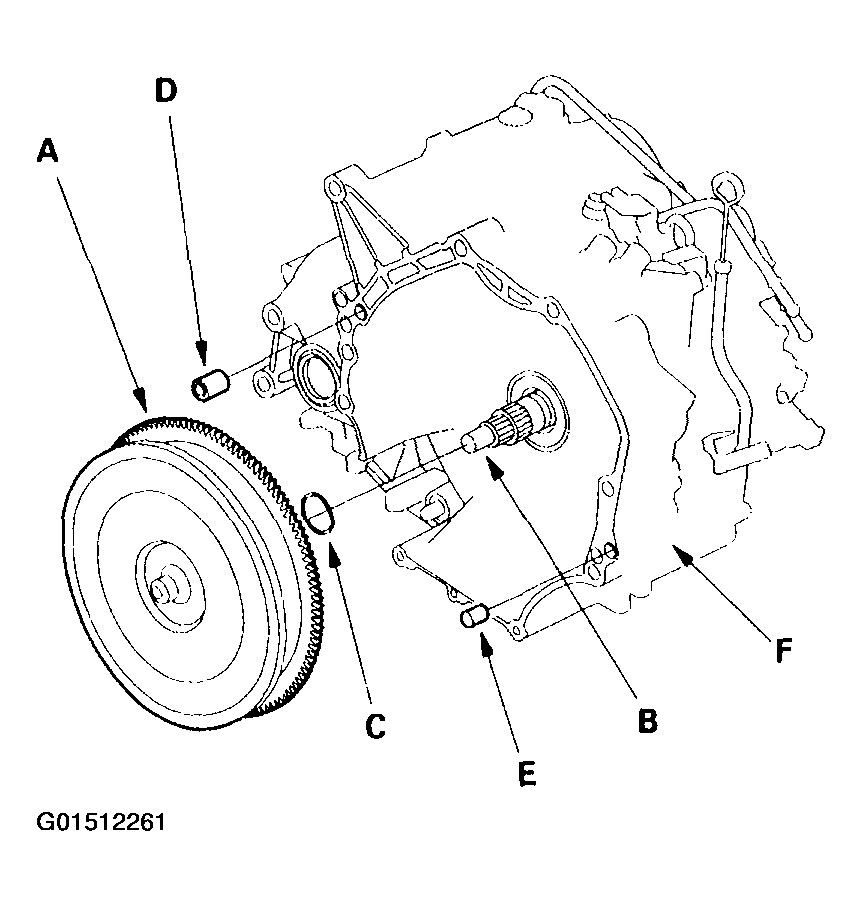

    Fig 2: Installing Torque Converter Assembly
    G01512261
  4. Install the 14 mm dowel pin (D) and 10 mm dowel pin (E) in the torque converter housing (F).
  5. Place the transmission on a jack, and raise it to engine level.
  6. Attach the transmission to the engine, then install the transmission housing mounting bolts.

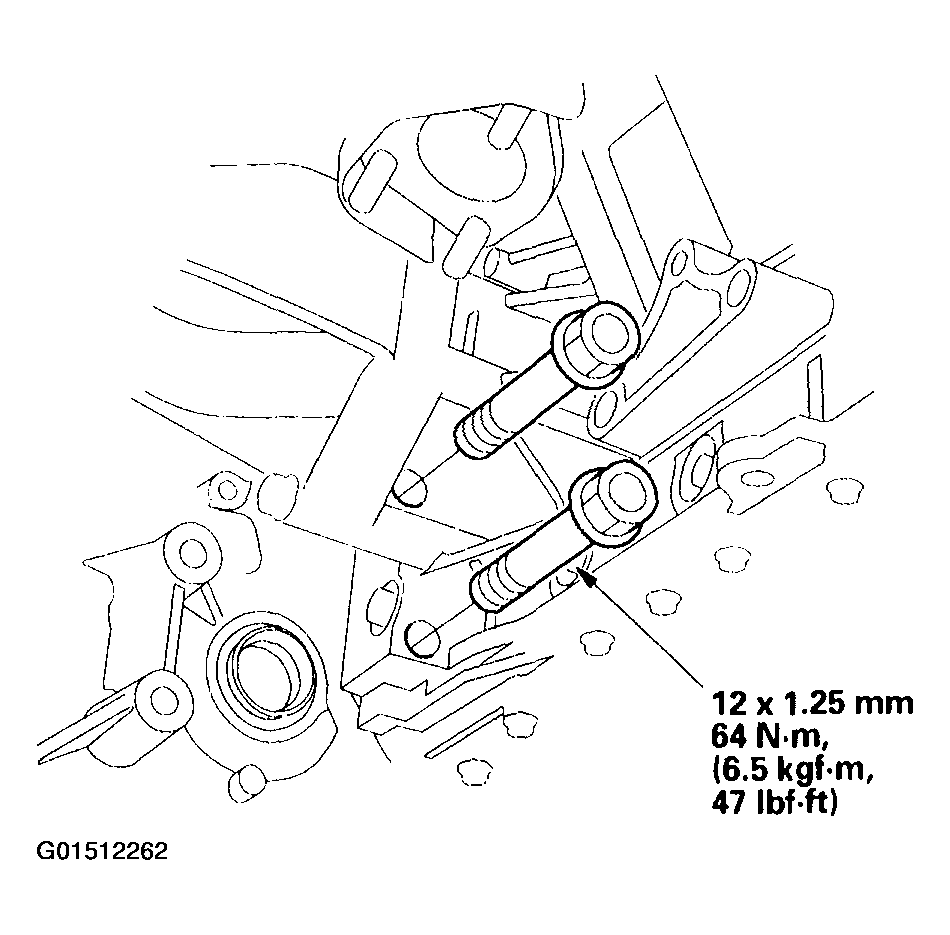

    Fig 3: Installing Transmission Housing Mounting Bolts
    G01512262
  7. Install the front mount bracket.

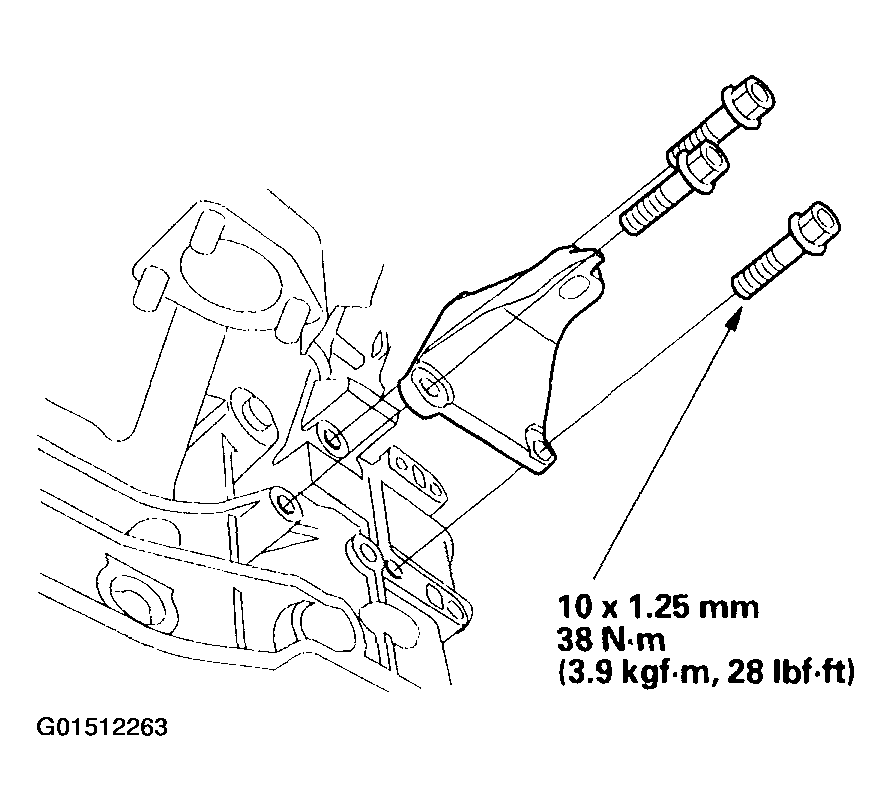

    Fig 4: Installing Front Mount Bracket
    G01512263

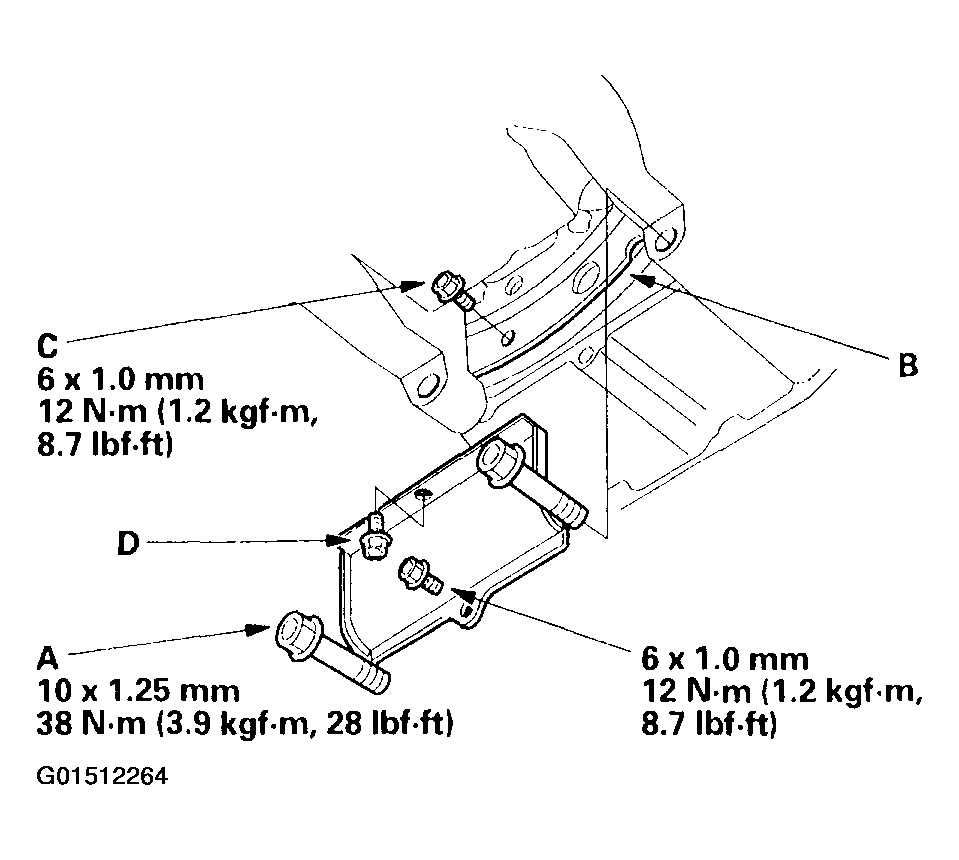

  8. Install the engine stiffener mounting bolts (A).
    Fig 5: Installing Engine Stiffener Mounting Bolts
    G01512264
  9. Attach the torque converter to the drive plate (B) with eight bolts (C). Rotate the crankshaft pulley as necessary to tighten the bolts to 1/2 of the specified torque, then to the final torque, in a crisscross pattern. After tightening the last bolt, check that the crankshaft rotates freely.
  10. Install the torque converter cover (D).
  11. Tighten the crankshaft pulley bolt as necessary (see Crankshaft Pulley Removal and Installation ).
  12. Install new set ring (A) on the intermediate shaft (B).

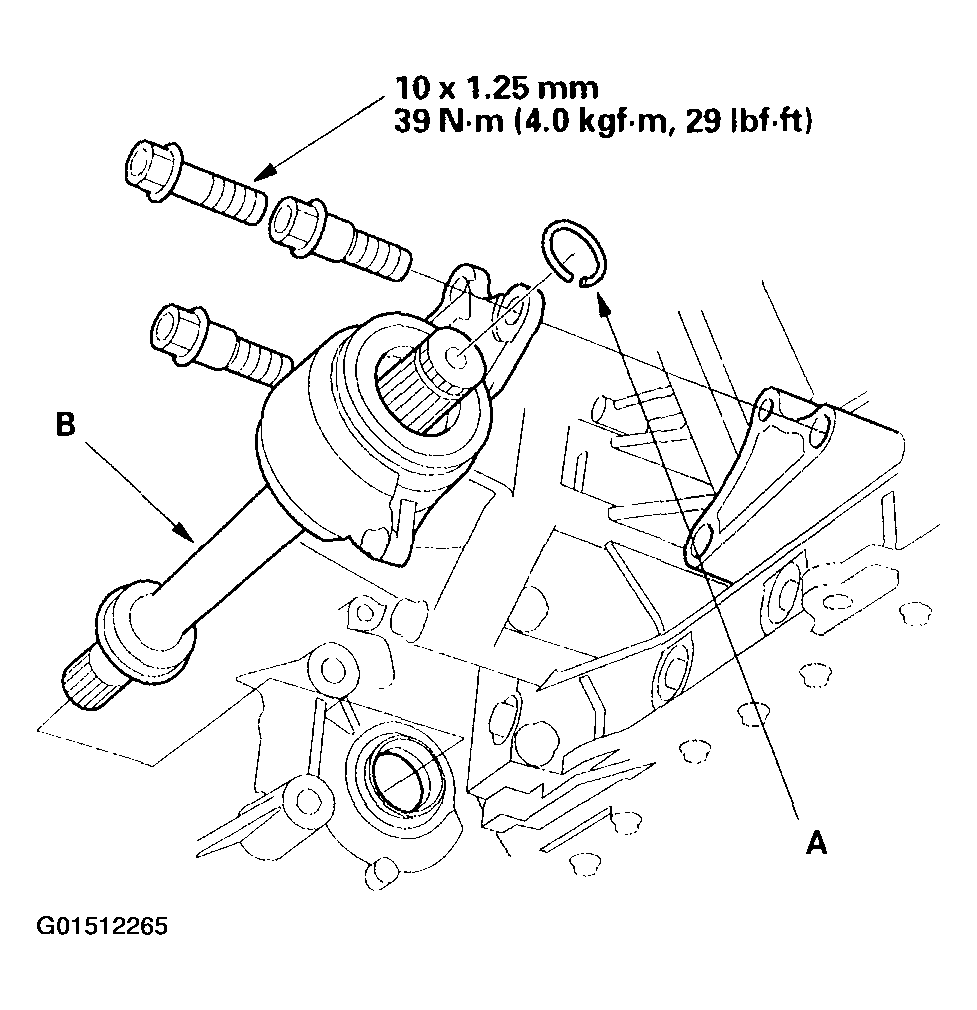

    Fig 6: Installing New Set Ring
    G01512265
  13. Clean the areas where the intermediate shaft contacts the transmission (differential) with solvent or carburetor cleaner, and dry with compressed air.

    Then install the intermediate shaft in the differential. While installing the intermediate shaft, be sure not to allow dust or other foreign particles to enter the transmission.

  14. Install a new set ring on the right driveshaft.
  15. NOTE:
    • Clean the areas where the left driveshaft contacts the transmission (differential) with solvent or carburetor cleaner, and dry with compressed air.
    • Turn the right and left steering knuckle fully outward, and slide the left driveshaft into the differential until you feel its spring clip engage the side gear. Slide the right driveshaft into the intermediate shaft until you feel its spring clip engage the intermediate shaft.
  16. Install the right and left driveshaft. While installing the left driveshaft in the differential, be sure not to allow dust or other foreign particles to enter the transmission.

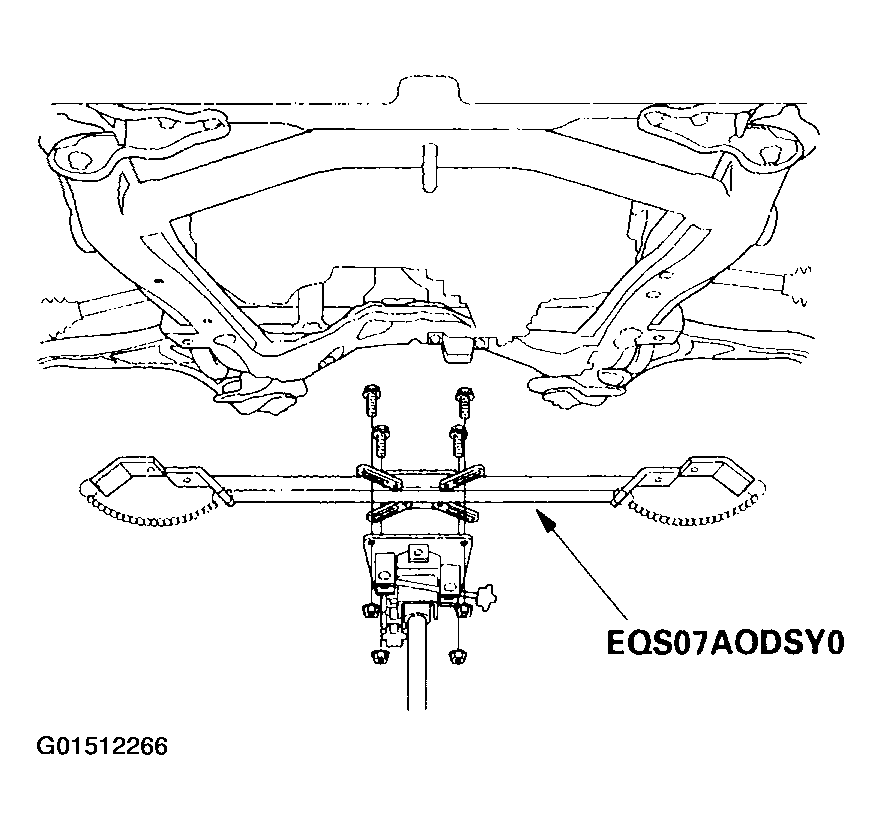

  17. Support the front subframe with the front subframe adapter (T/N EQS07AODSY0) and a jack, and lift it up the body.
    Fig 7: Supporting Front Subframe
    G01512266

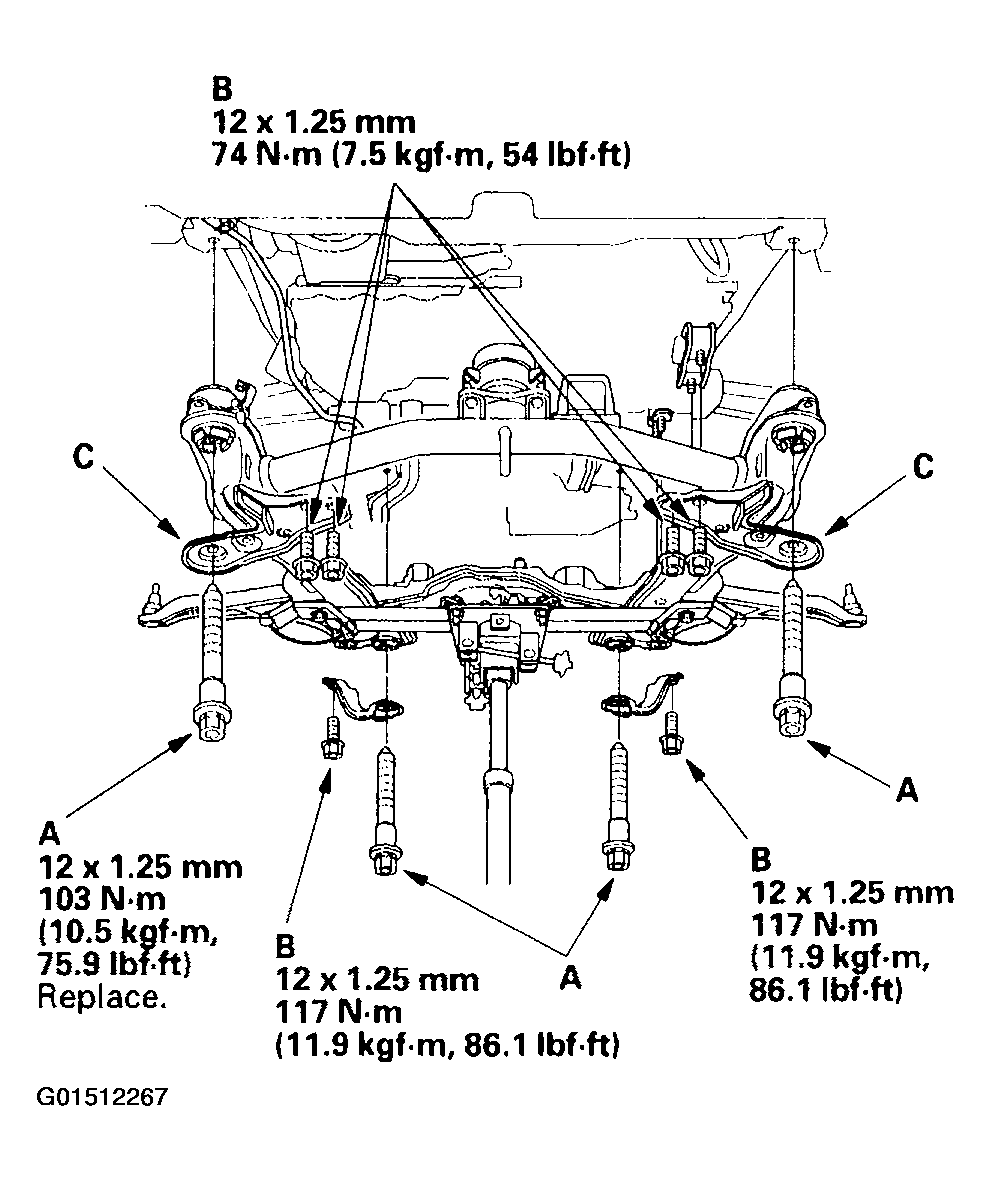

  18. Loosely install the subframe mounting bolts (4) (A) and the 12 x 1.25 mm bolts (6) (B) with the stiffeners (C), then tighten the bolts to the specified torque by aligning all reference marks (D).
    Fig 8: Installing Subframe Mounting Bolts
    G01512267

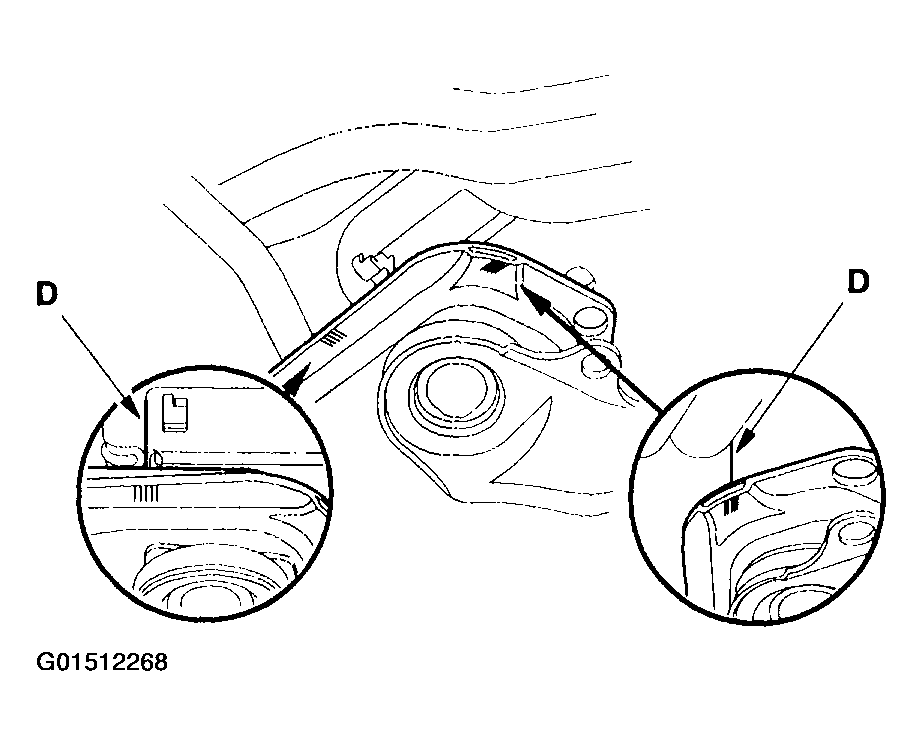

    Fig 9: Aligning Reference Marks
    G01512268
  19. Install the transmission lower mount nuts.

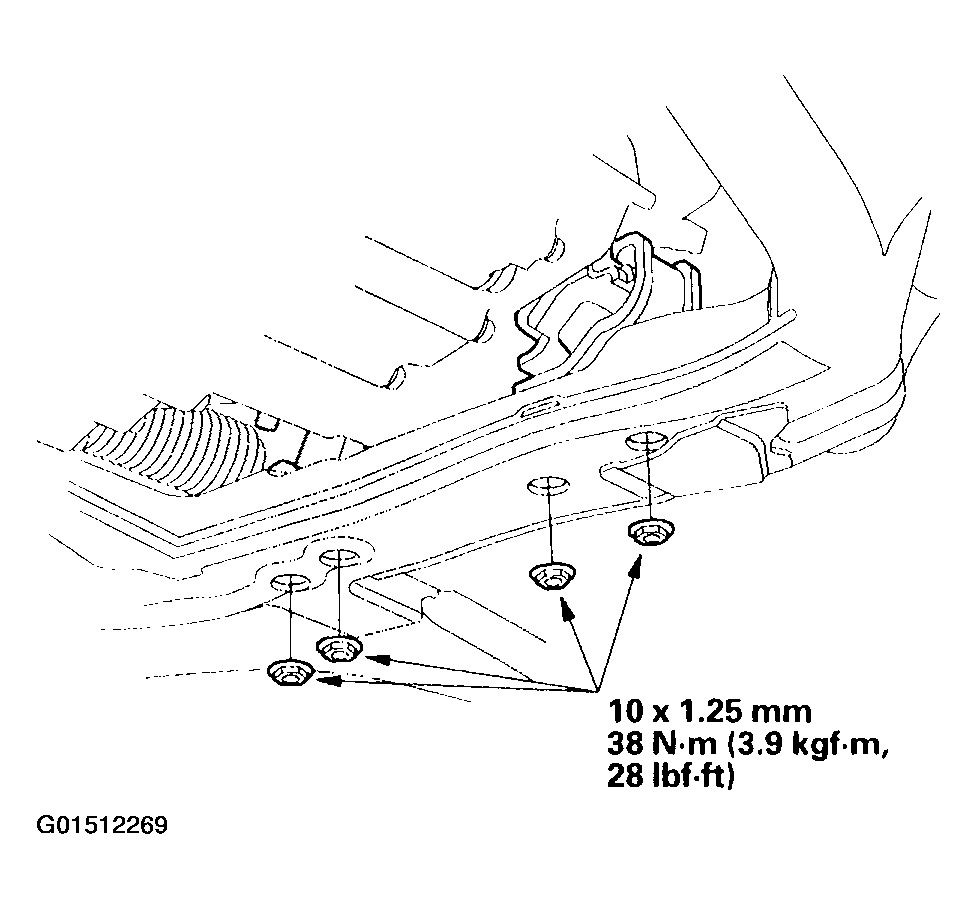

    Fig 10: Installing Transmission Lower Mount Nuts
    G01512269

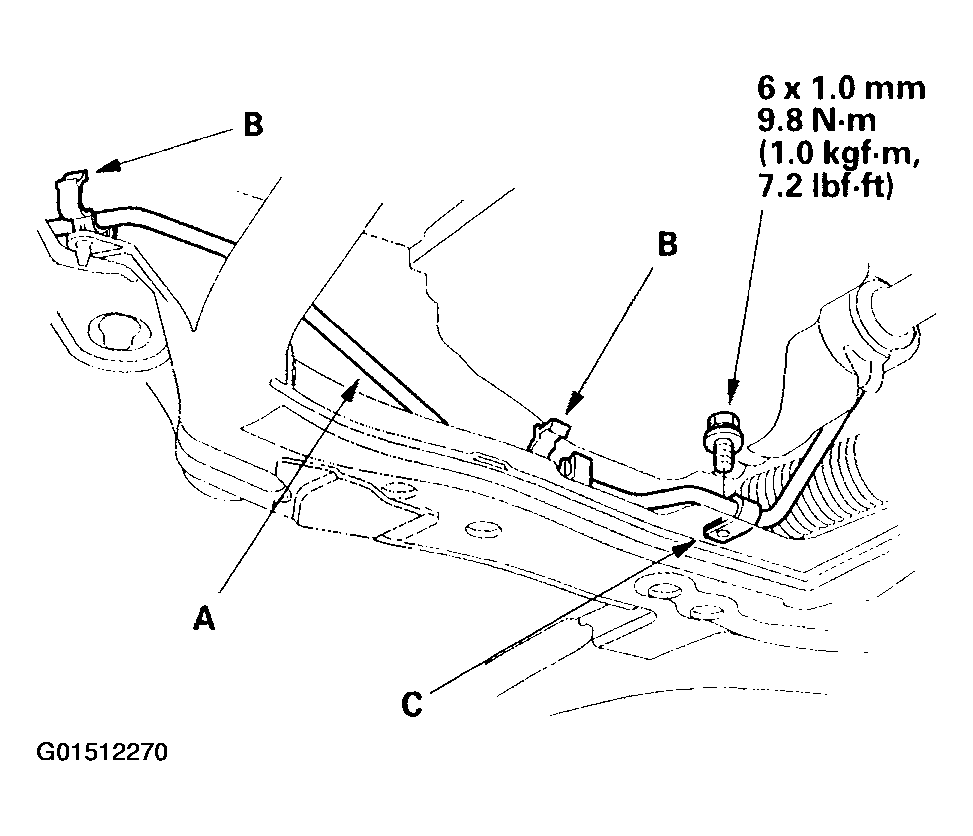

  20. Install the power steering fluid pipe (A) on the clamps (B), and install the power steering fluid pipe bracket (C).
    Fig 11: Installing Power Steering Fluid Pipe
    G01512270
  21. Install the rear mount mounting bolts (A).

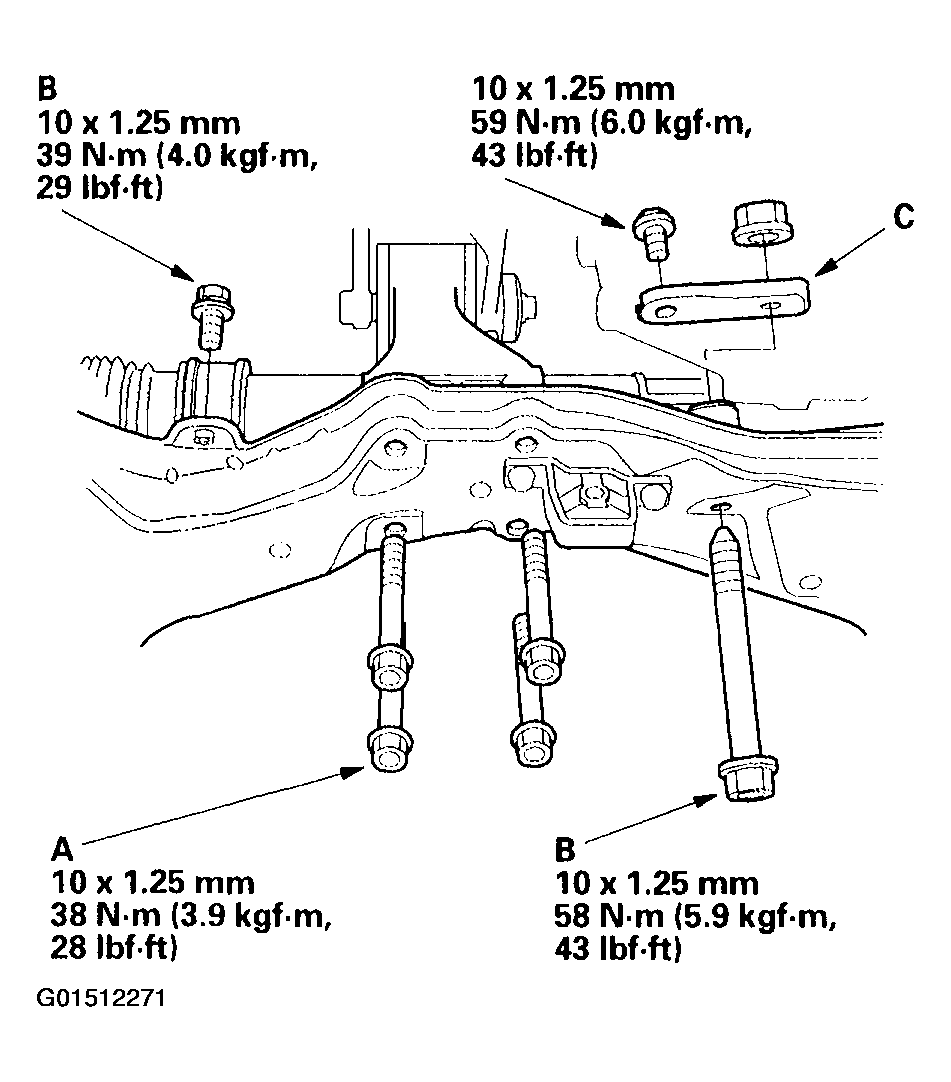

    Fig 12: Installing Rear Mount Mounting Bolts
    G01512271
  22. Install the steering gearbox mounting bolts (B) and the stiffener (C).
  23. Install the stiffener (A) and the steering gearbox mounting bolt (B) with nut (C).

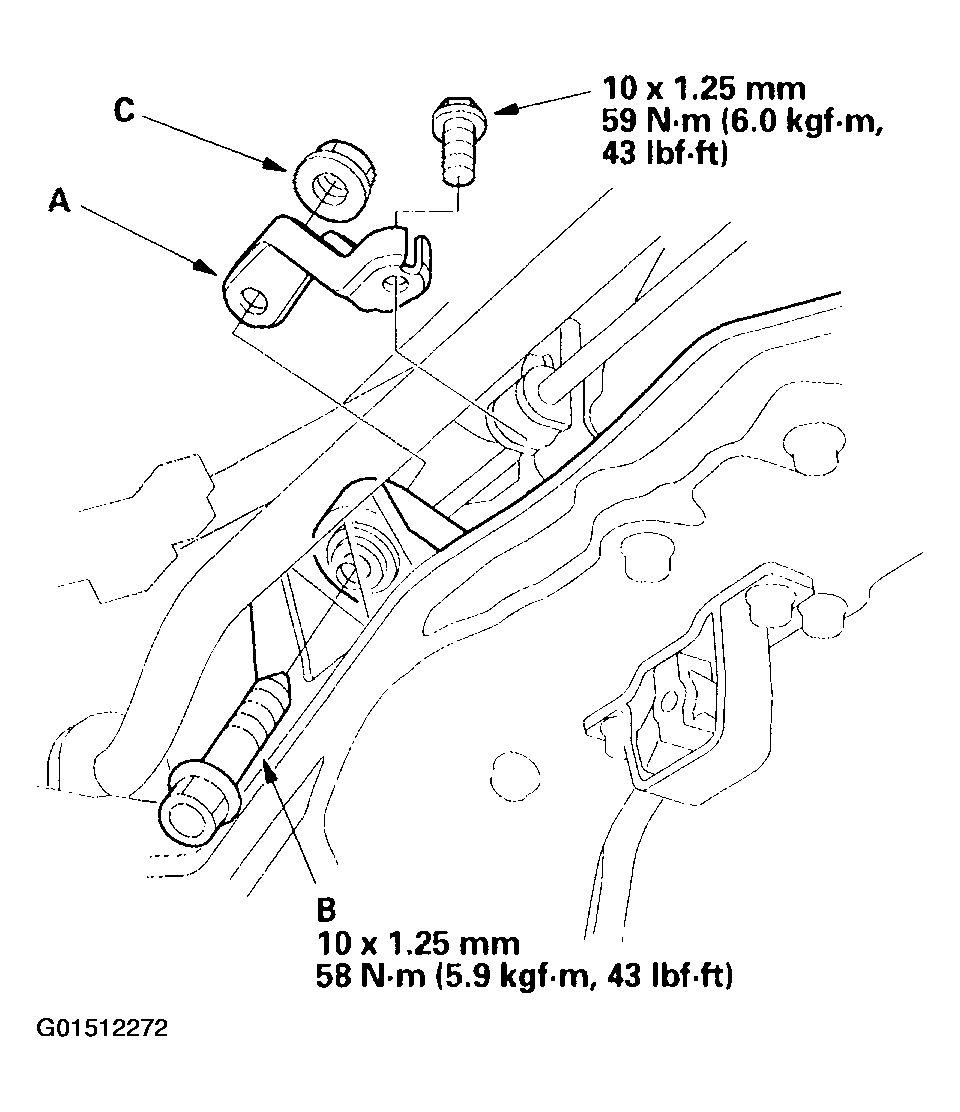

    Fig 13: Installing Stiffener
    G01512272
  24. Install the steering gearbox mounting bolt (A) and the power steering fluid pipe bracket bolts (B).

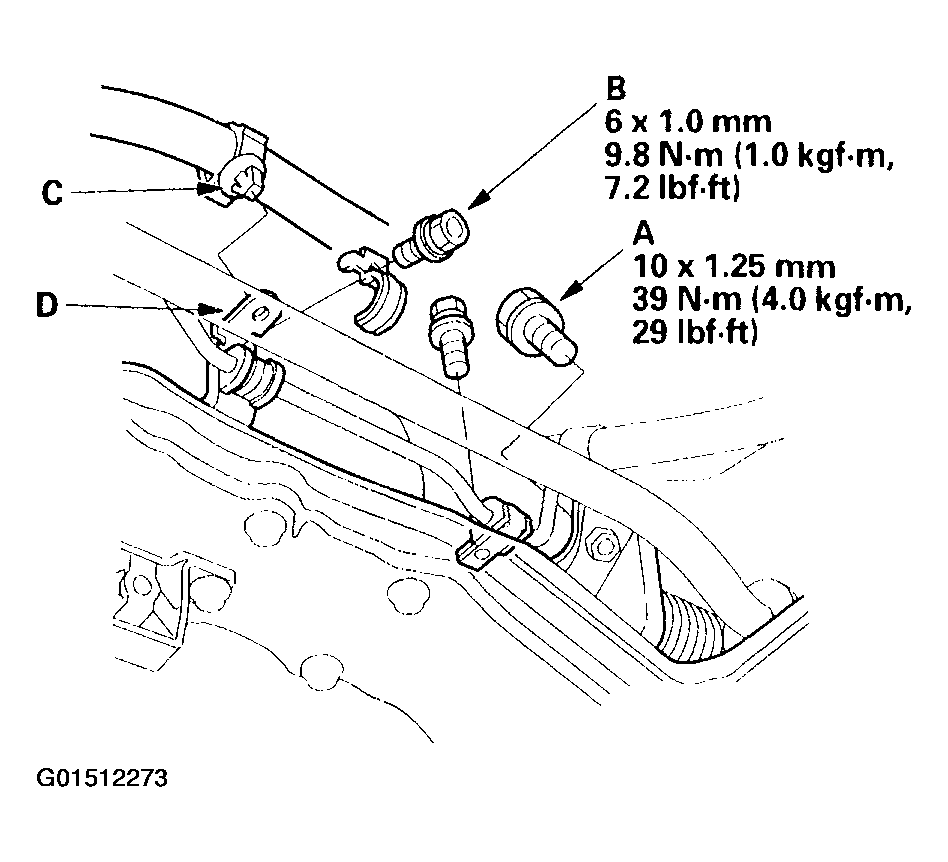

    Fig 14: Installing Steering Gearbox & Power Steering Fluid Pipe Bracket Bolts
    G01512273
  25. Install the power steering fluid return hose clip (C) on the bracket (D).

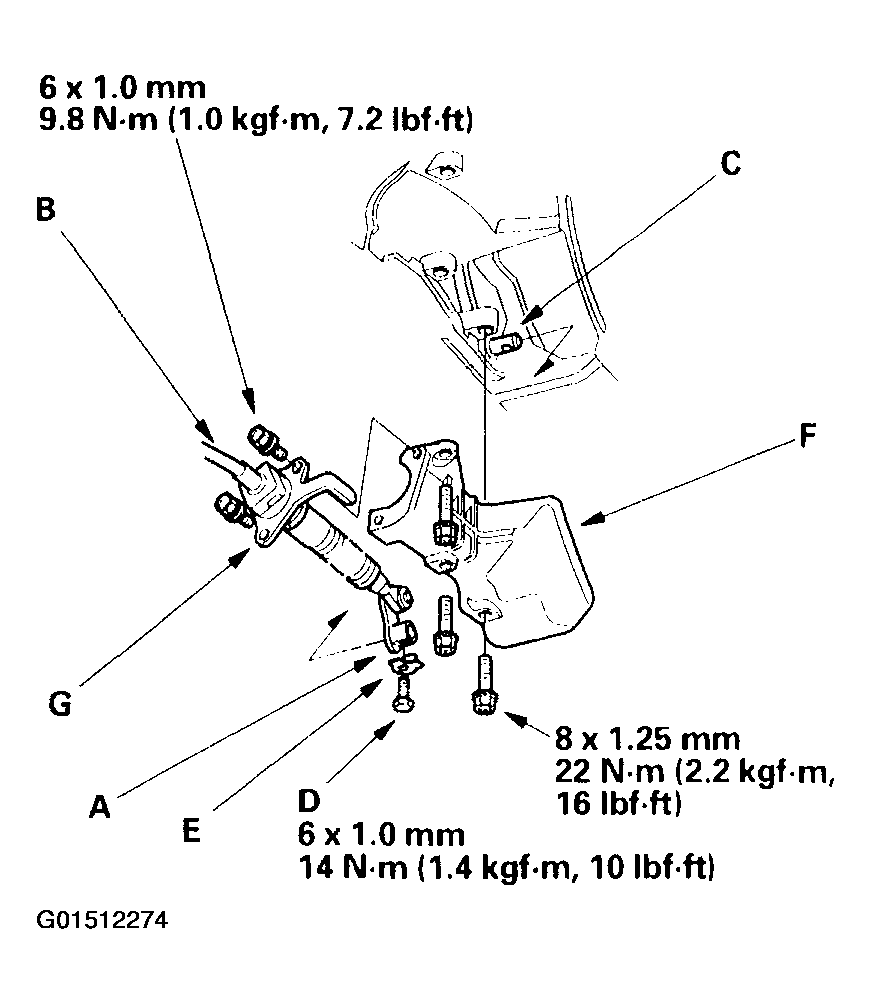

  26. Install the control lever (A) with the shift cable (B) on the control shaft (C). Do not bend the shift cable excessively.
    Fig 15: Installing Control Lever
    G01512274
  27. Install the lock bolt (D) with a new lock washer (E), then bend the lock washer tab against the bolt.
  28. NOTE: To prevent damage to the control lever, be sure to install the shift cable holder after installing the shift cable cover to the torque converter housing.
  29. Install the shift cable cover (F), then install the shift cable holder (G) on the shift cable cover.
  30. Install the ball joints on each lower arms (A) with the castle nuts (hex nuts) (B) and spring pins (C).

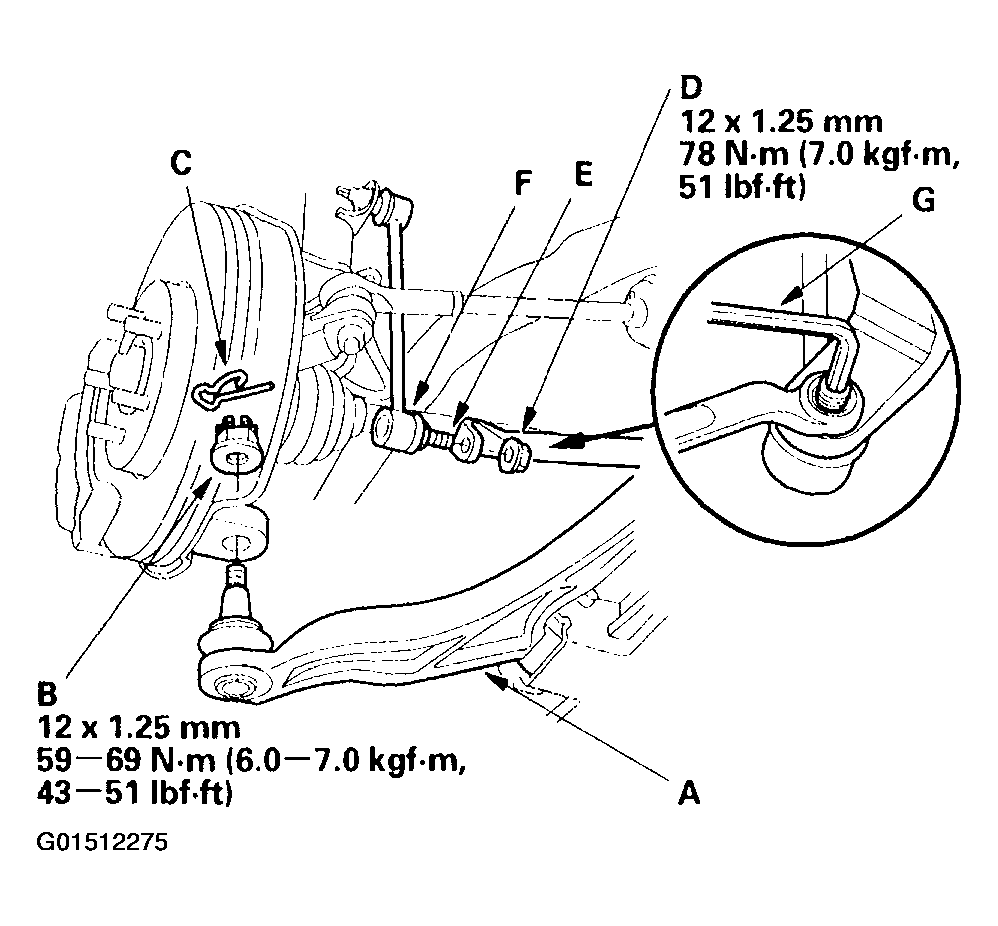

    Fig 16: Installing Ball Joints
    G01512275
  31. Install the nut (D) to the ball joint pin (E) on the stabilizer link (F), then use a 6 mm Allen-type wrench (G), and tighten the nut to the specified torque.
  32. Install the exhaust pipe A (A) and the three way catalytic converter (B) assembly.

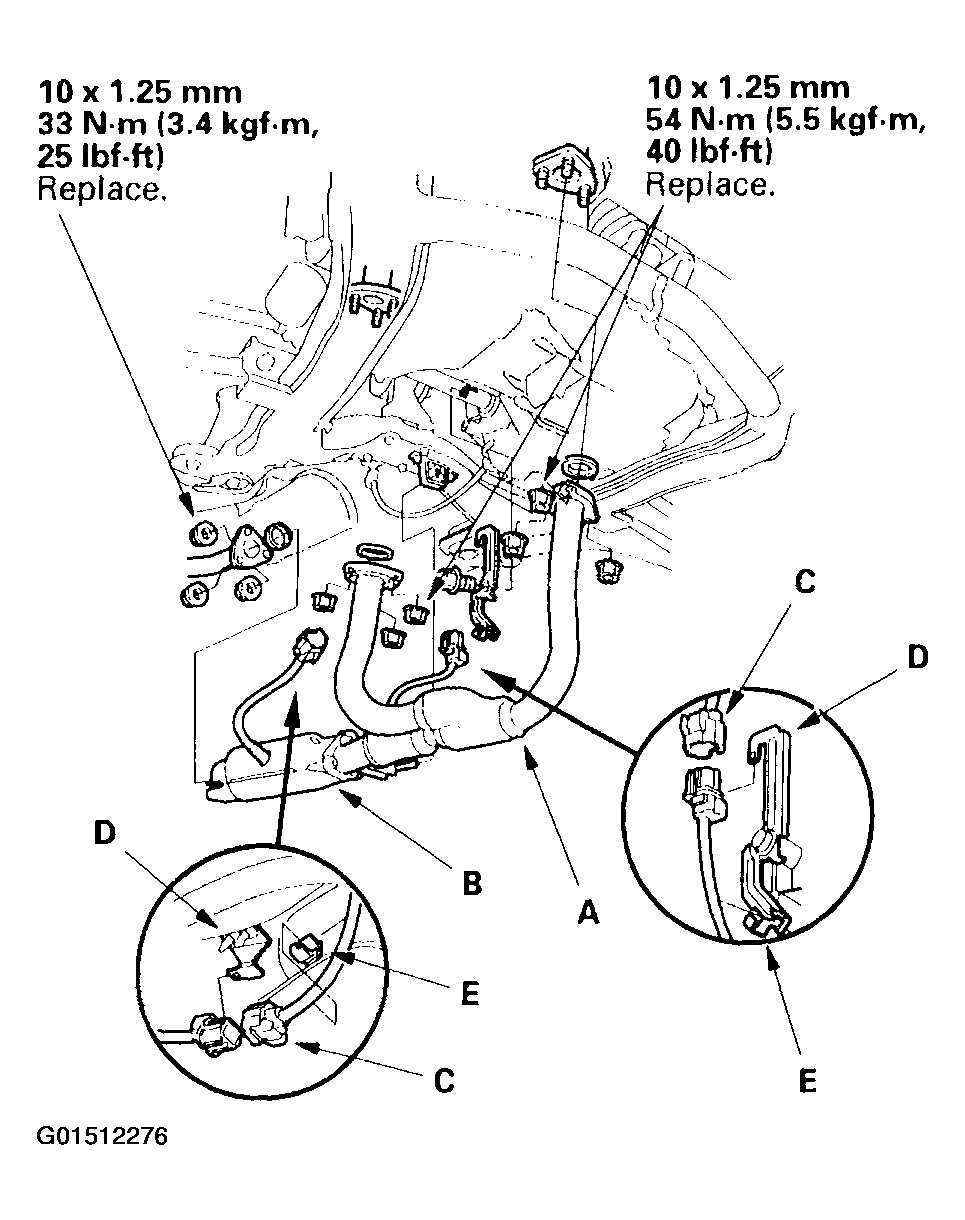

    Fig 17: Installing Exhaust Pipe & Catalytic Converter
    G01512276
  33. Connect the oxygen sensor connectors (C), then install them on their connector brackets (D). Install the harnesses on the clamps (E).
  34. Install the splash shield.

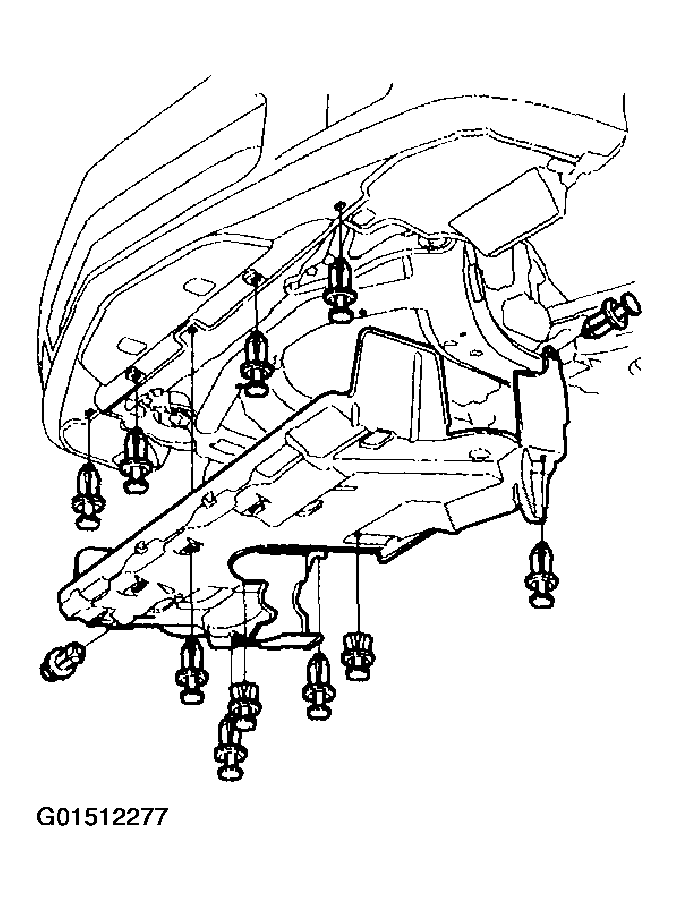

    Fig 18: Installing Splash Shield
    G01512277
  35. Install the transmission housing mounting bolts.

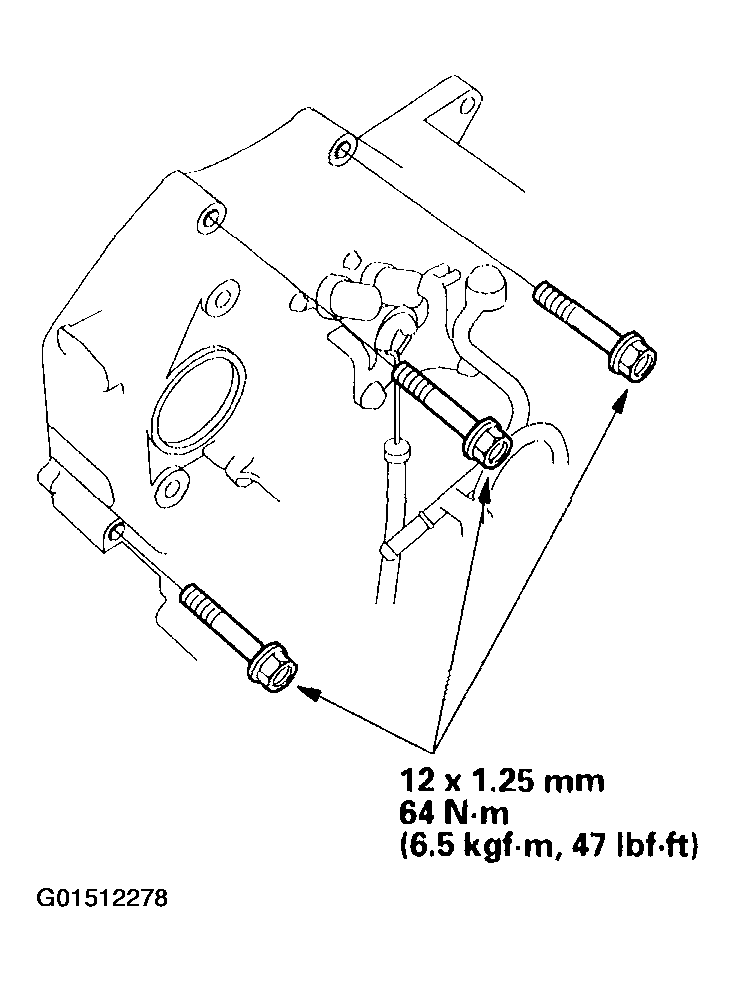

    Fig 19: Installing Transmission Housing Mounting Bolts
    G01512278
  36. Install and tighten the nut (A) on the front mount.

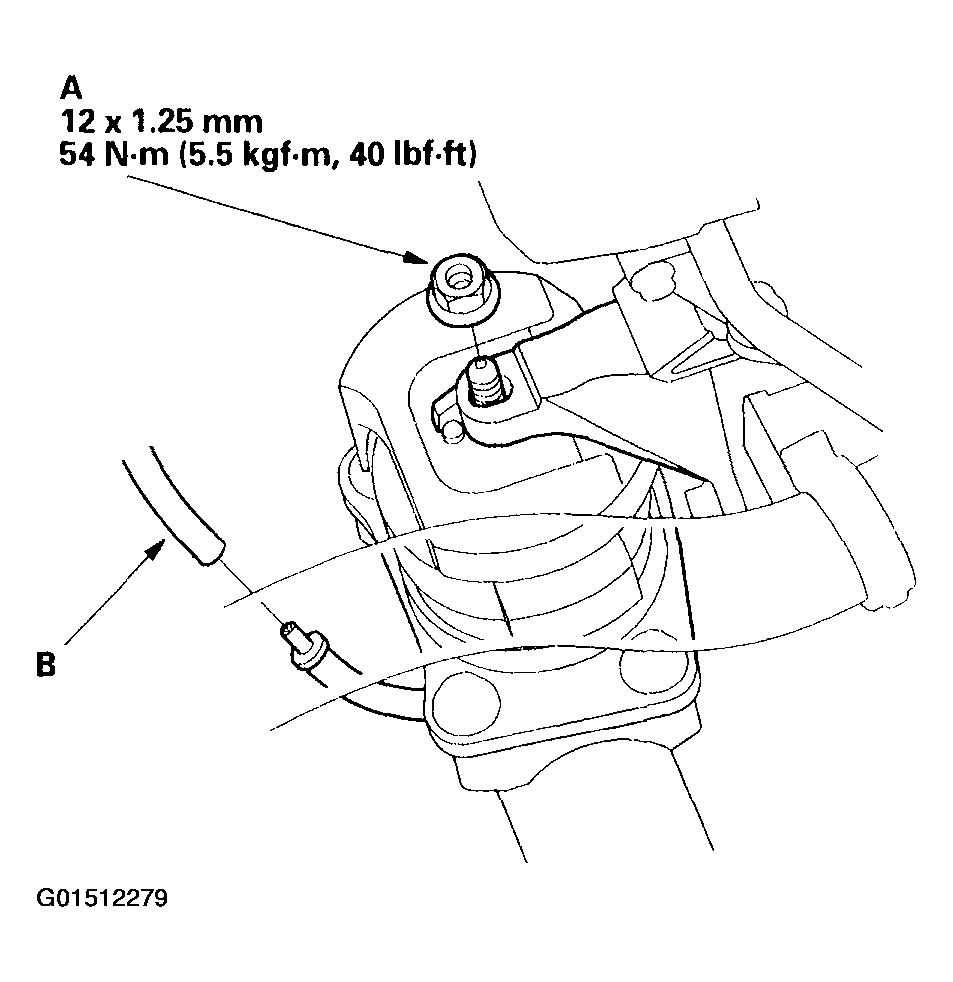

    Fig 20: Installing Front Mount Nut
    G01512279
  37. Connect the vacuum tube (B).
  38. Remove the engine hanger.

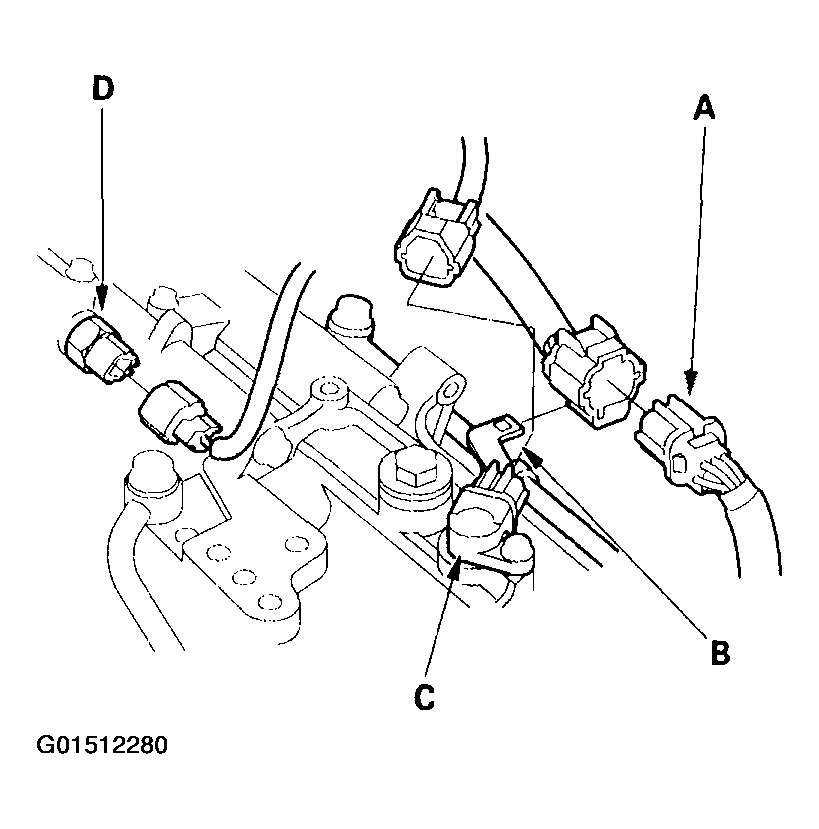

  39. Connect the A/T gear position switch connector (A), then install it on its connector bracket (B).
    Fig 21: Connecting A/T Gear Position Switch Connector
    G01512280
  40. Connect the connectors to the countershaft speed sensor (C) and the 2nd clutch pressure switch (D). Do not allow, fluid, oil, dust, or other foreign particles to enter the connectors.
  41. Install the harness cover (A) on the transmission hanger (B), then install the connector bracket (C).

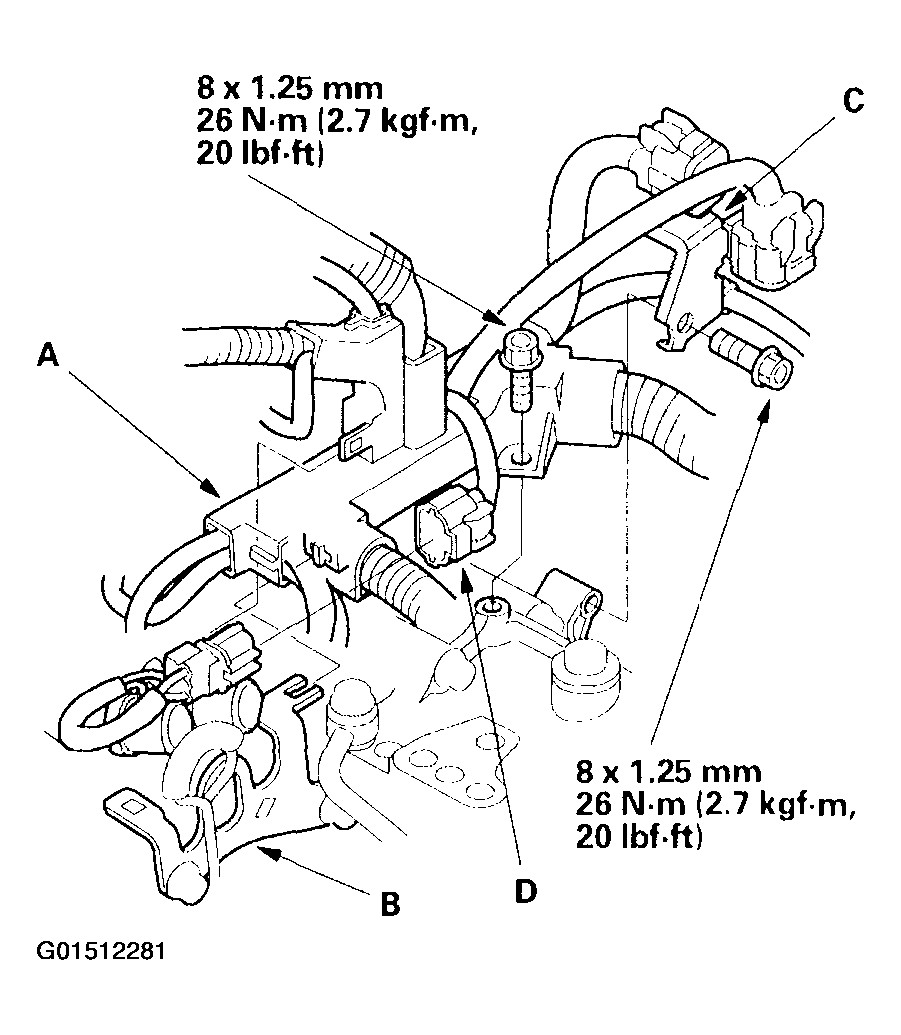

    Fig 22: Installing Connector Bracket
    G01512281
  42. Install the torque converter clutch solenoid valve/ shift solenoid valve A connector (D) on the harness cover, then connect the connector.
  43. Connect the connectors to the 3rd clutch pressure switch (A), mainshaft speed sensor (B), and A/T clutch pressure control solenoid valves A and B (C), then install the clamps on the clamp brackets. Do not allow fluid, oil, dust, or other foreign particles to enter the connectors.

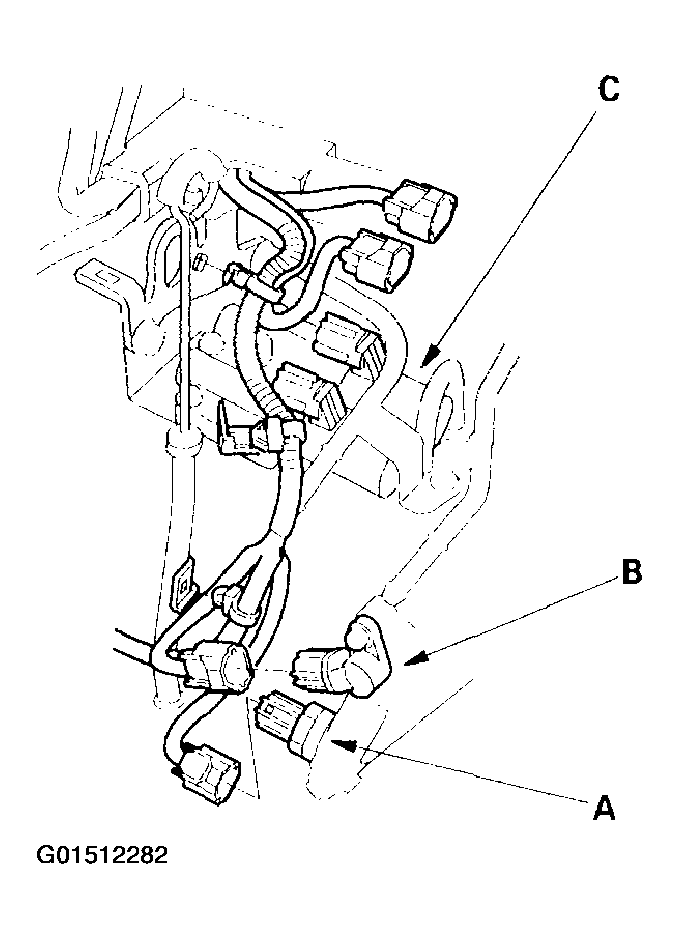

    Fig 23: Connecting 3rd Clutch Pressure Switch, Mainshaft Speed Sensor, & A/T Clutch Pressure Control Solenoid Valves Connectors
    G01512282
  44. Connect the connectors to the shift solenoid valve B (A) and shift solenoid valve C (B), then install the clamp on the clamp bracket.

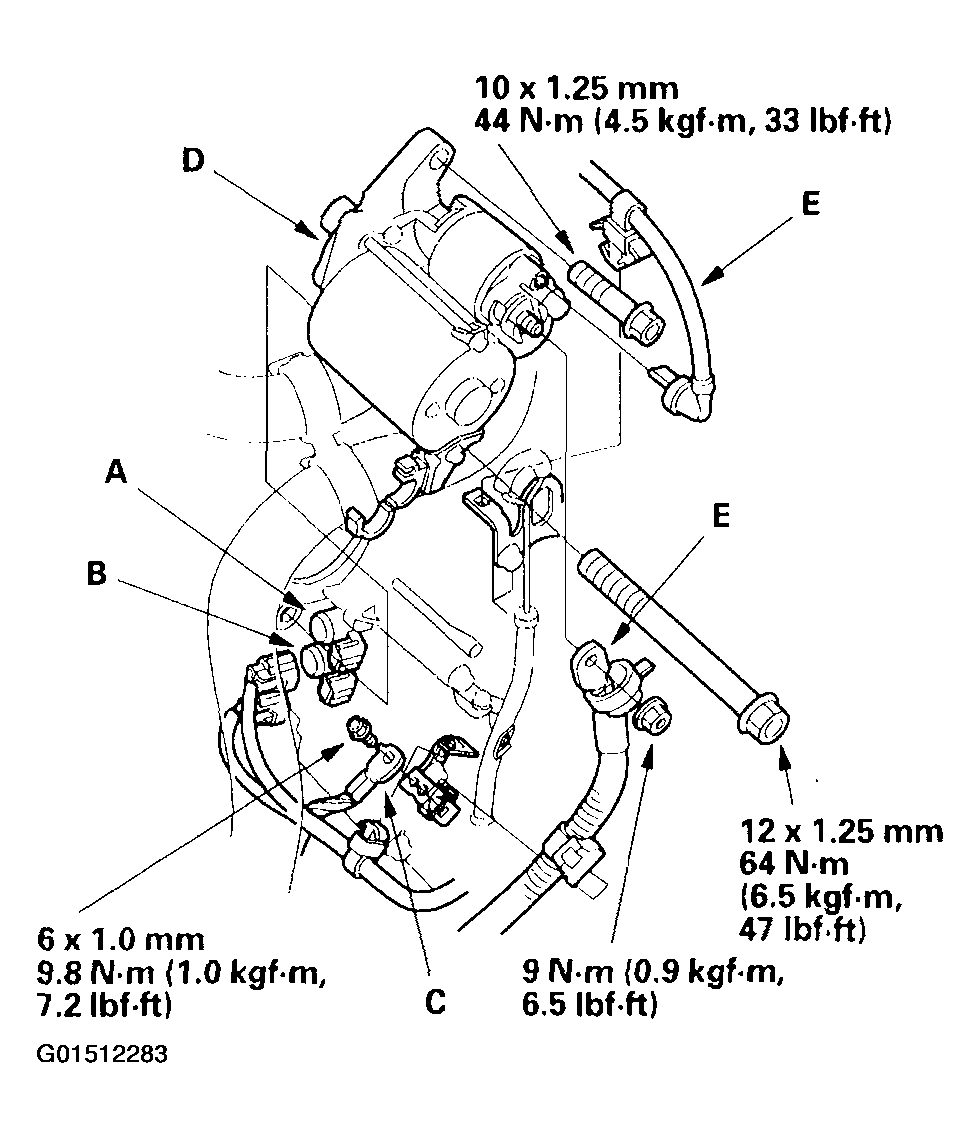

    Fig 24: Connecting Shift Solenoid Valves Connectors
    G01512283
  45. Install the transmission ground cable terminal (C).
  46. Install the starter (D) on the torque converter housing. Connect the starter cables (E) to the starter, and install the harness clamp on the clamp bracket. Make sure the crimped side of the starter cable ring terminal is facing out.
  47. Connect the ATF cooler hoses (A) to the ATF cooler lines (B) (see ATF Cooler Hose Replacement ). Clamp the ATF cooler hose with the clamp (C) on the starter.

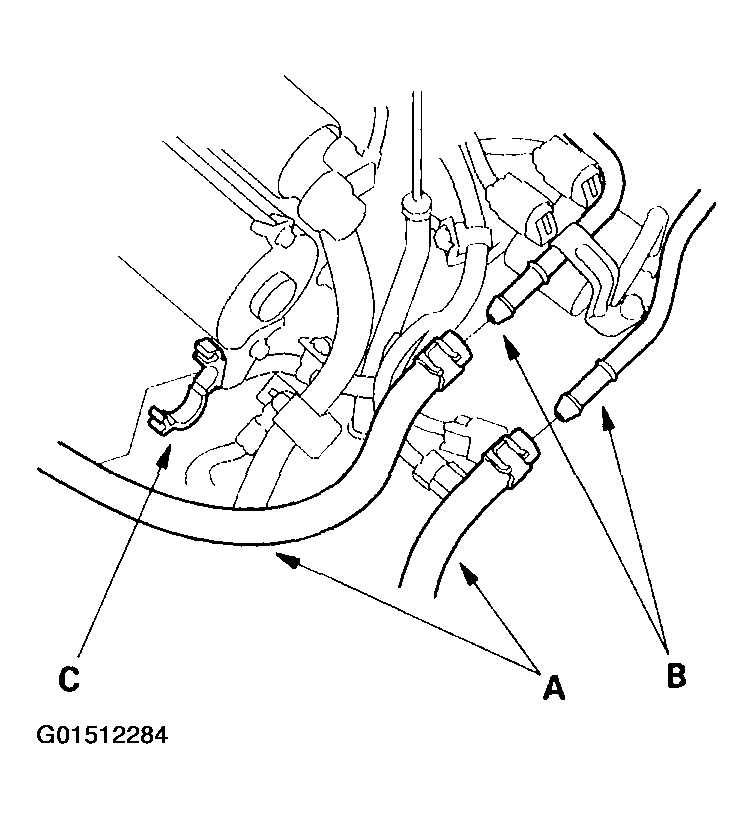

    Fig 25: Connecting ATF Cooler Lines
    G01512284
  48. Install the battery base bracket and battery base.
  49. Install the battery cable clamps, connector, and relay bracket on the battery base.
  50. Install the battery tray and battery, then secure the battery with its hold-down bracket.
  51. Install the intake air duct, resonator cover, and air cleaner housing assembly.
  52. Connect the ATF cooler hoses.
    Fig 26: Connecting ATF Cooler Hoses
    G01512285
  53. Refill the transmission with ATF (see step 5 on ATF REPLACEMENT ).
  54. Connect the battery positive terminal, then connect the negative terminal.
  55. Set the parking brake. Start the engine, and shift the transmission through all gears three times.
  56. Check the shift lever operation, A/T gear position indicator operation, and shift cable adjustment.
  57. Check and adjust the front wheel alignment (see Wheel Alignment ).
  58. Reinstall the support rod of the hood to the proper location, and secure the windshield washer reservoir opening with the bolt.
  59. Start the engine and let it reach normal operating temperature (the radiator fan comes on) with the transmission in the P or N position, then turn it off and check the ATF level (see ATF LEVEL CHECK ).
  60. Do the PCM idle learn procedure (see PCM Idle Learn Procedure ).
  61. Do a road test (see Road Test ).
  62. Enter the anti-theft code for the radio, then enter the radio station presets, and set the clock.
  63. Loosen the front mount nut after the road test, then retighten the nut to the specified torque.
    Fig 27: Tightening Front Mount Nut
    G01512286
