Circuit Diagram (Power, Ground, Communication Lines)

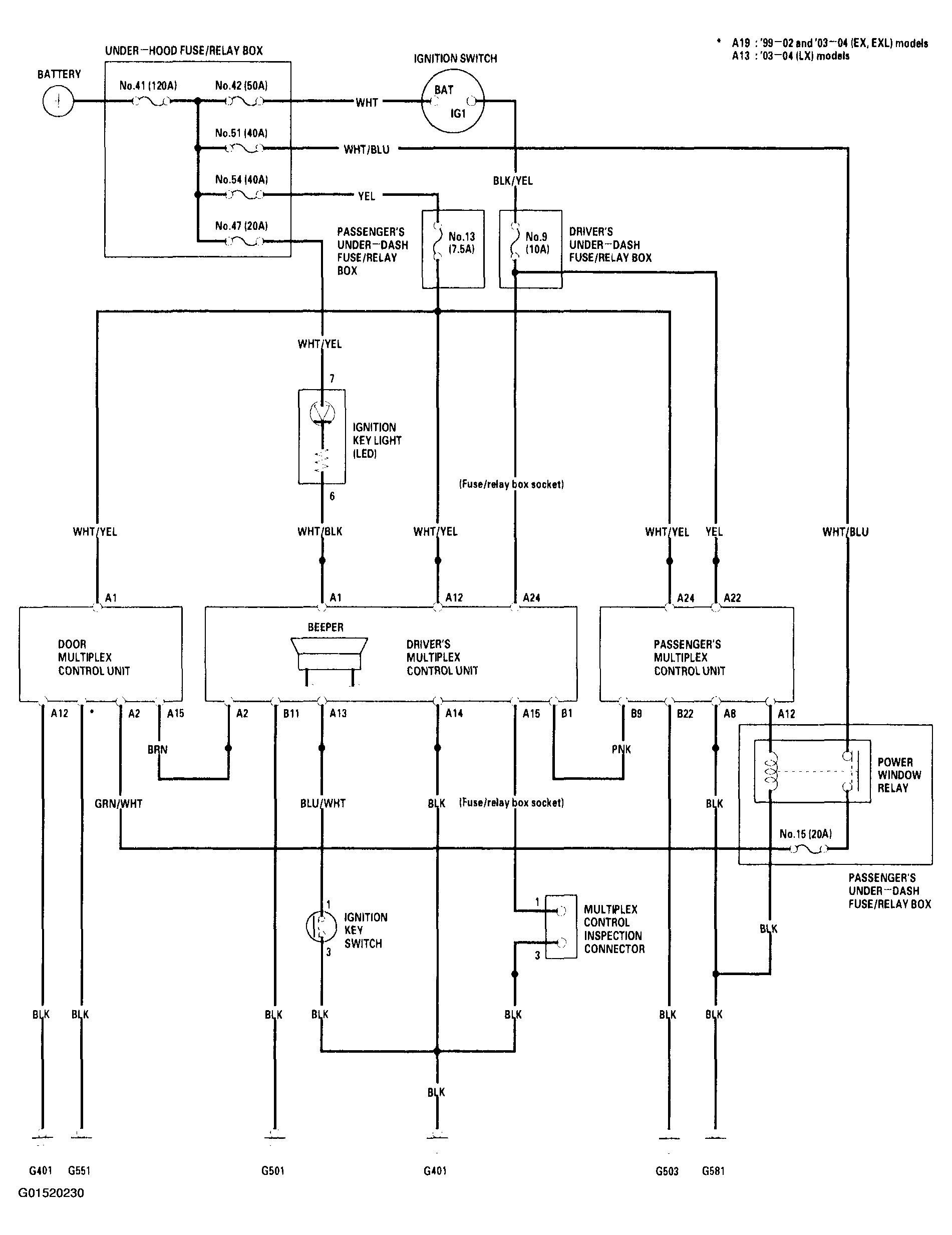

Fig 1: Multiplex Control Circuit Diagram
G01520230Courtesy of AMERICAN HONDA MOTOR CO., INC.
